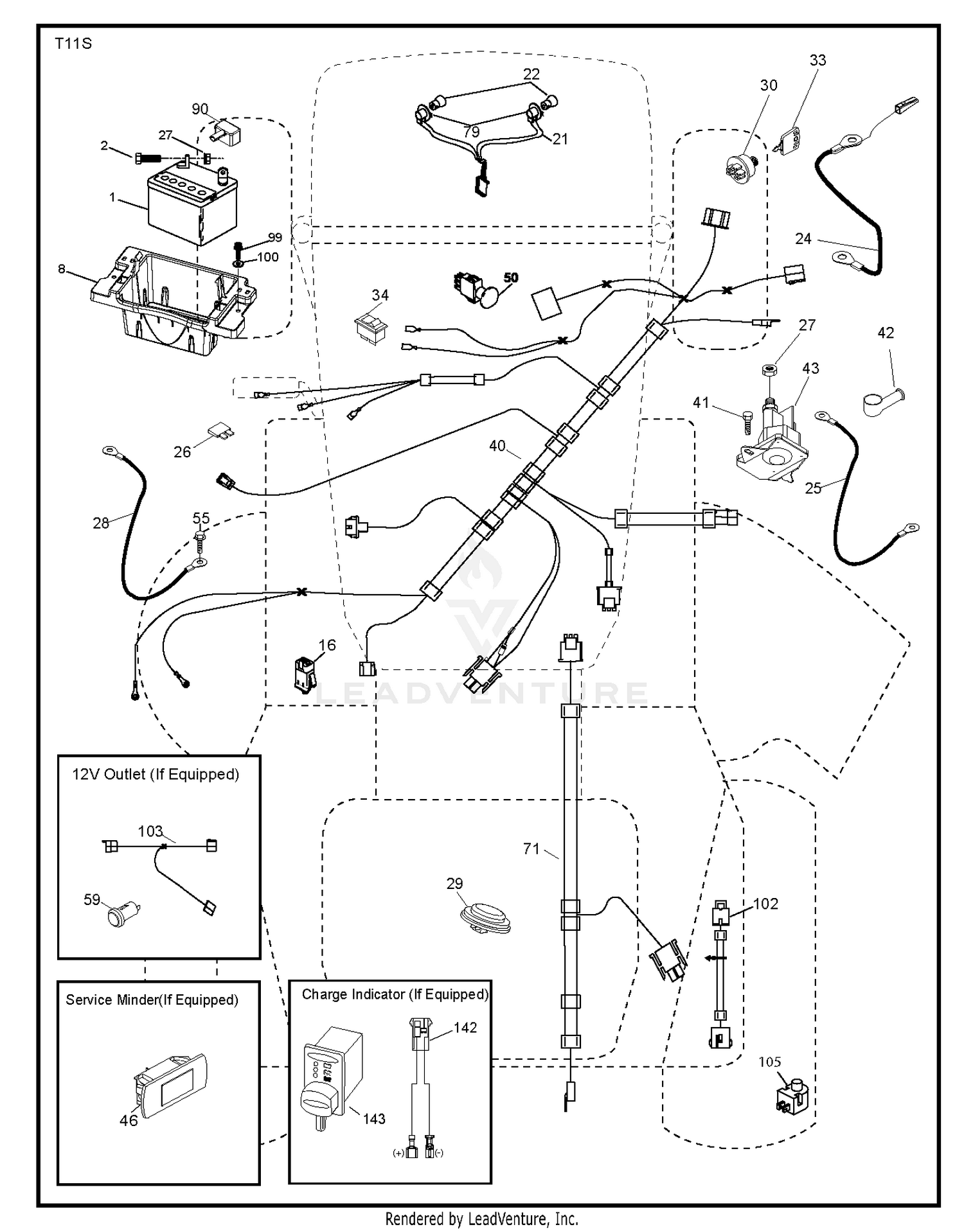

| Ref | Part Number | Description |
|---|
| 1 |
27-7150 |
A/C CUP ASM Price: $82.89 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
27-7140 |
SKIRT-BAFFLE Price: $85.92 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
27-7120 |
NUT AND GASKET ASM Price: $15.55 |
| 4 |
27-7130 |
CLAMP ASM Price: $49.80 |
| 5 |
32107-11 |
NUT-SQUARE Price: $0.22 |
| 6 |
3258-19 |
SCREW Price: $0.42 |
| 7 |
27-7170 |
MOUNTING BAND ASM Price: $48.11 |
| 8 |
108-3833 |
FILTER-AIR This part replaces 27-7110. Price: $26.73 |
| 8 |
587205101 |
TRAY.BATTERY BOX.FRONT Price: $14.99 |
| 10 |
62-6300 |
SLEEVE ASM Price: $31.93 |
| 11 |
33-1270 |
BOWL-CLEAR Price: $10.91 |
| 12 |
33-1260 |
COVER ASM Price: $36.59 |
| 13 |
80-3330 |
GASKET Price: $18.48 |
| 14 |
27-7160 |
DECAL-INSTALLATION Price: $19.89 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 Price: $7.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT This part replaces 532411933. Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
532401104 |
HARNESS.IGN.DASH.HUQ/P Price: $59.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
| 105 |
532407568 |
REVERSE SWITCH Price: $12.99 |
