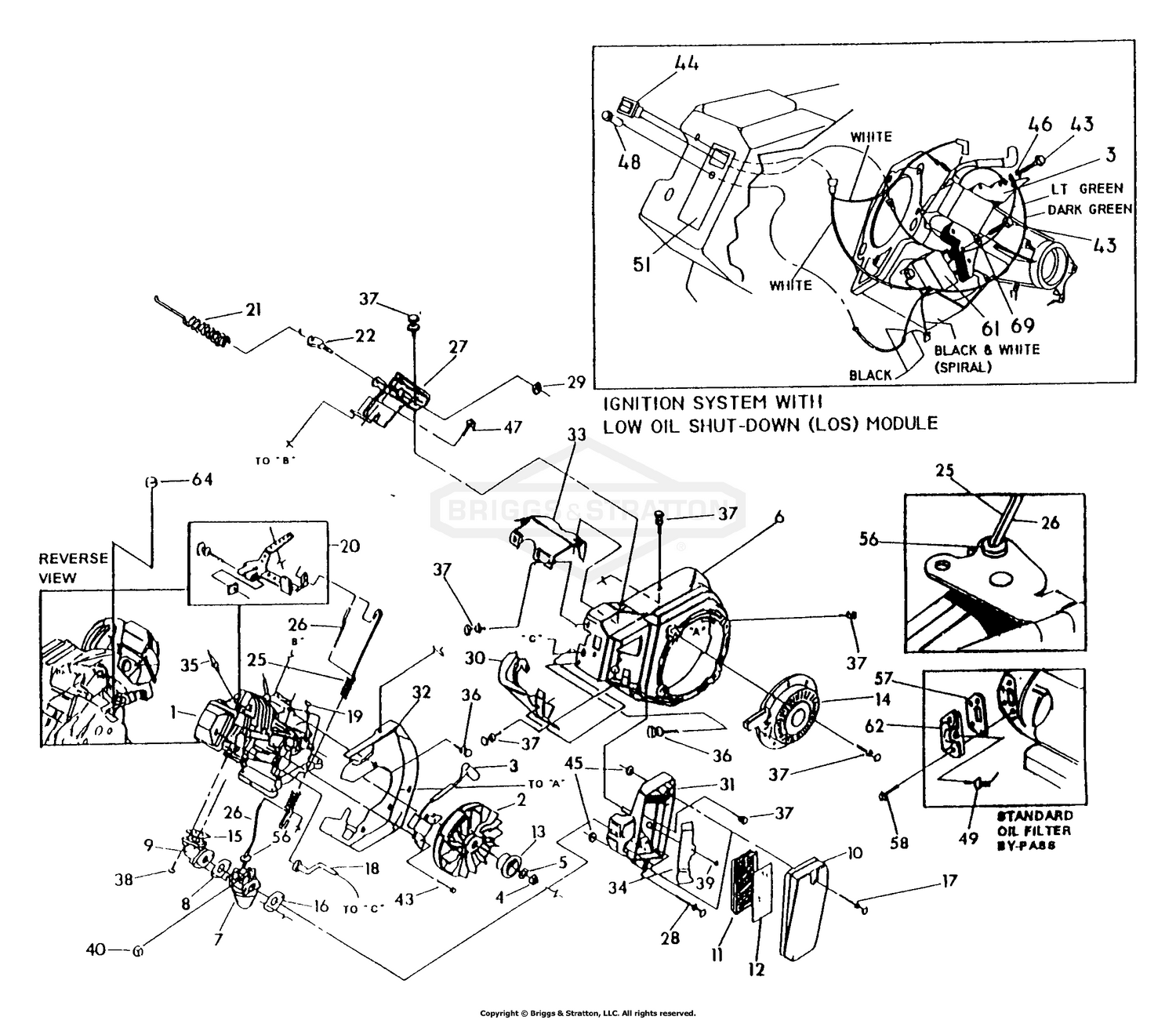

| Ref | Part Number | Description |
|---|
| 1 |
89209 |
Long Block Price: Call Us |
| 2 |
77182E |
Flywheel Assembly Price: Call Us |
| 3 |
81675 |
Ignition Coil Assembly Price: Call Us |
| 4 |
81810 |
M16-1.5 Hex Nut Price: Call Us |
| 5 |
83312 |
Conical Washer Price: Call Us |
| 6 |
90695A |
Blower Housing Price: Call Us |
| 7 |
97747 |
Carburetor Assembly Price: Call Us |
| 8 |
78631 |
Carb./Manifold Gasket Price: Call Us |
| 9 |
90948 |
HS Intake Manifold Price: Call Us |
| 10 |
78608A |
Air Cleaner Cover Price: Call Us |
| 11 |
78601GS |
FILTER,Air This part replaces 78601. Price: $11.50 |
| 12 |
78602 |
Air Filter Pre-Cleaner Price: Call Us |
| 13 |
83015 |
Recoil Cup Price: Call Us |
| 14 |
95268 |
Recoil Assembly Price: Call Us |
| 15 |
90051 |
Manifold/Head Gasket Price: Call Us |
| 16 |
91846 |
Carburetor/Air Cleaner Gasket Price: Call Us |
| 17 |
78609 |
Bolt -- Air Cleaner Cover Price: Call Us |
| 18 |
7090947YP |
BOLT, Carriage, Short Neck, 1/4-20 x 1-3/8 This part replaces 90947. Price: $5.02 |
| 20 |
86962 |
Governor Lever Assy. Price: Call Us |
| 21 |
78604 |
Governor Spring Price: Call Us |
| 22 |
83502 |
Governor Adjusting Screw Price: $283.70 |
| 25 |
86037 |
Anti-Lash Extension Spring Price: $83.40 |
| 26 |
86384 |
Governor Rod Price: Call Us |
| 27 |
83781 |
Gov. Adjust Bracket Price: Call Us |
| 28 |
78643 |
Carburetor Mtng. Bolt Price: $43.98 |
| 29 |
83503 |
M5-0.8 Lock Nut Price: $255.45 |
| 30 |
89739 |
Bottom Wrapper Price: Call Us |
| 31 |
78607 |
Air Cleaner Base Price: Call Us |
| 32 |
78651C |
Blower Housing Back Plate Price: Call Us |
| 33 |
691061 |
SCREW This part replaces 92984. Price: $2.81 |
| 34 |
80303 |
Breather Canal Cover Price: Call Us |
| 35 |
84007216 |
PLUG, SPARK This part replaces 72347. Price: $4.59 |
| 36 |
45756 |
M6-1.0 x 10mm Bolt Price: Call Us |
| 37 |
66476GS |
SCREW, M6-1 x 12 w/Lock Washer This part replaces 66476. Price: $2.94 |
| 38 |
80316 |
M6-1.0 x 30mm Capscrew with lock washer Price: Call Us |
| 39 |
59635 |
No 8 x 3/8" Plastite Screw Price: Call Us |
| 40 |
83504 |
Choke Lever Knob Price: $272.19 |
| 43 |
82981 |
M6-1.0 x 30mm Taptite Bolt Price: Call Us |
| 44 |
78653GS |
SWITCH, Run - Stop This part replaces 78653. Price: $3.65 |
| 45 |
49813GS |
NUT, M6 This part replaces 49813. Price: $2.75 |
| 46 |
5022097SM |
CAP This part replaces 22097. Price: $2.75 |
| 47 |
83512GS |
Screw, M8 1.25 x 15, Taptite This part replaces 83512. Price: $4.60 |
| 48 |
86753 |
Low Oil Indicator LED Price: Call Us |
| 51 |
84195 |
LOS Engine Decal Price: Call Us |
| 56 |
85953 |
Carburetor Wear Washer Price: Call Us |
| 57 |
7091848YP |
FITTING 3/8 NPT MALE This part replaces 91848. Price: $12.69 |
| 58 |
92978 |
M6-1 0 x 20mm Screw Price: Call Us |
| 64 |
94820 |
Expansion Plug Price: Call Us |
