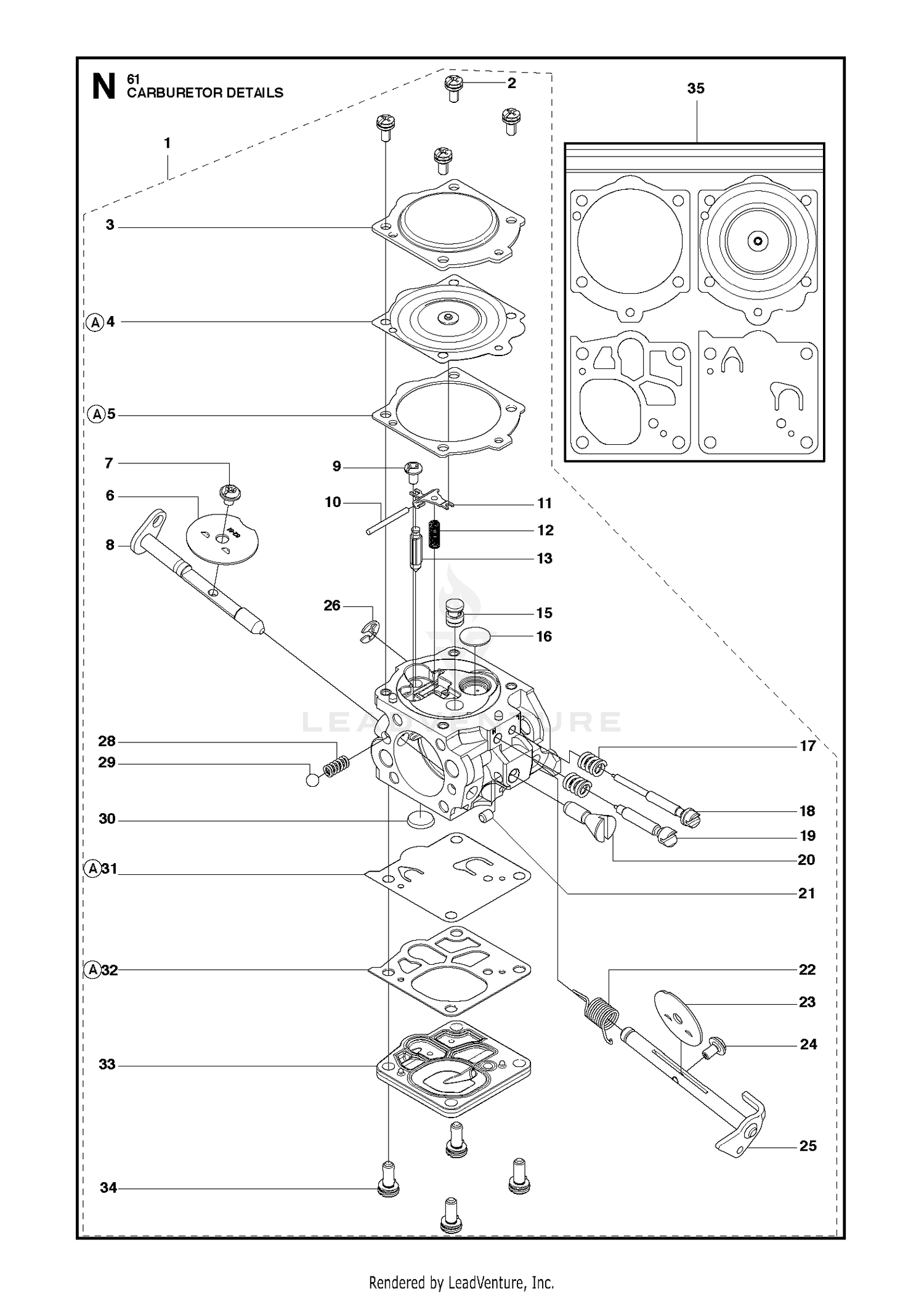

CARBURETOR DETAILS
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 503584601 | SCREW This part replaces 503108701. Price: $2.99 |
| 3 | 505316702 | DIAPHRAM COVER Price: $4.99 |
| 4 | 505316715 | MAIN DIAPHRAGM This part replaces 503635801. Price: $79.99 |
| 5 | 501467501 | GASKET Price: $8.99 |
| 6 | 505316707 | CHOKE FLAP Price: $2.99 |
| 7 | 501468701 | SCREW This part replaces 537003401. Price: $6.99 |
| 8 | 502525901 | NEEDS DESCRIPTION Price: Call Us |
| 9 | 505316717 | SCREW Price: $6.99 |
| 10 | 505316731 | PIN Price: $6.99 |
| 11 | 505316734 | LEVER Price: $11.99 |
| 12 | 503117601 | SPRING-METER.LEVER Price: $5.54 |
| 13 | 503117001 | VALVE/INLET. Price: $19.99 |
| 15 | 503800401 | NOZZLE Price: $3.99 |
| 16 | 503574101 | WELCH PLUG Price: $7.99 |
| 17 | 530035293 | NEEDLE SPRING This part replaces 504210050. Price: $2.99 |
| 20 | 544897601 | SCREW Price: $13.99 |
| 21 | 503800501 | PLUG FRICTION Price: $7.99 |
| 23 | 574331701 | NEEDS DESCRIPTION Price: Call Us |
| 24 | 544111501 | SCREW Price: $6.99 |
| 25 | 502525801 | NEEDS DESCRIPTION Price: Call Us |
| 26 | 503799501 | CLIP Price: $6.99 |
| 28 | 503117701 | SPRING Price: $7.99 |
| 29 | 503117101 | BALL Price: $9.99 |
| 30 | 501666101 | FUEL INLET SCREEN Price: $12.99 |
| 31 | 544897201 | DIAPHRAM PUMP Price: $22.99 |
| 32 | 503117201 | GASKET Price: $9.99 |
| 33 | 503595801 | COVER Price: $37.99 |
| 34 | 503117501 | SCREW W/ WASHER Price: $7.99 |
