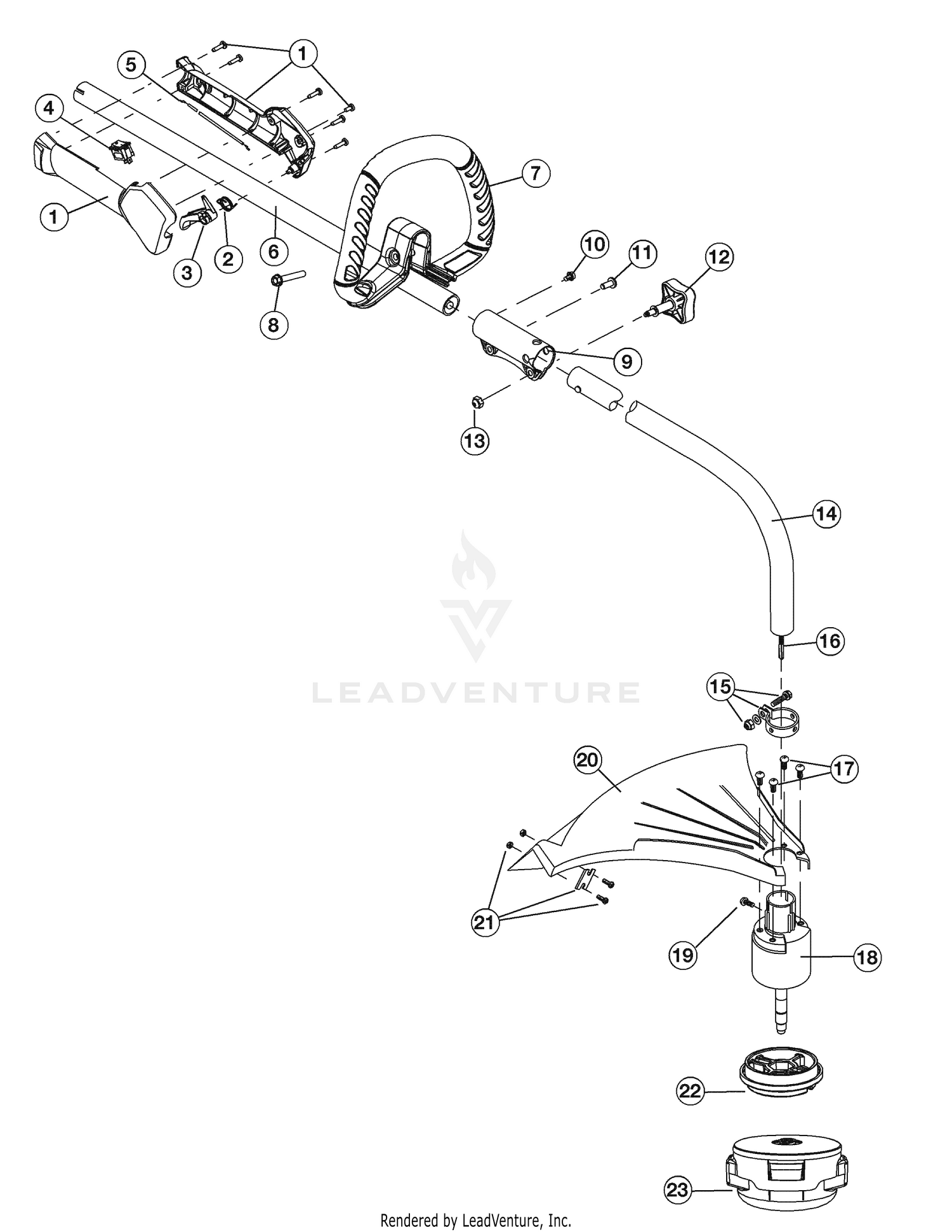

| Ref | Part Number | Description |
|---|
| 1 |
753-04234 |
Throttle Housing Assembly (Incl. Ref No. 2-4) Price: $18.62 |
| 2 |
791-182690 |
Throttle Trigger Spring Price: $7.01 |
| 3 |
753-04119 |
Throttle Trigger Price: $6.56 |
| 4 |
791-182405 |
Switch Price: $9.29 |
| 5 |
753-05266 |
Throttle Cable Assembly Price: $17.98 |
| 6 |
753-04236 |
Upper Drive Shaft Housing Assembly Price: $87.52 |
| 7 |
753-06039 |
D-Handle Assembly (Incl. Ref No. 8) Price: $9.84 |
| 8 |
753-06040 |
Bolt Price: $6.01 |
| 9 |
753-1190 |
Split boom Coupler (Incl. Ref No. 10-13) Price: $20.56 |
| 10 |
791-182057 |
Screw Price: $3.93 |
| 11 |
791-181617 |
Bolt Price: $4.59 |
| 12 |
791-181618B |
ADJUSTMENT KNO Not Available Price: |
| 13 |
712-04018A |
Knob Retaining Nut Price: $3.78 |
| 14 |
791-182387 |
Lower Drive Shaft Housing Assembly (Incl. Ref No. 16) Price: $55.34 |
| 15 |
791-153597 |
CLAMP ASSEMBLY-LOWER Not Available Price: |
| 16 |
791-181852 |
Lower Flexible Drive Shaft Price: $51.93 |
| 17 |
791-181858 |
SCREW, #10-24X.50 M Not Available Price: |
| 18 |
753-05050 |
HOUSING ASSEMBLY:BUSH Not Available Price: |
| 19 |
791-145569 |
Anti-Rotation Screw Price: $9.02 |
| 20 |
791-181659 |
SHIELD ASSEMBLY WITH BLADE Not Available Price: |
| 21 |
753-06048 |
BLADE ASSEMBLY Not Available Price: |
| 22 |
753-05034 |
ADAP:CS BOOM Not Available Price: |
| 23 |
753-08182 |
CUTTING HEAD ASSEMBLY This part replaces 753-06129. Price: $17.43 |
