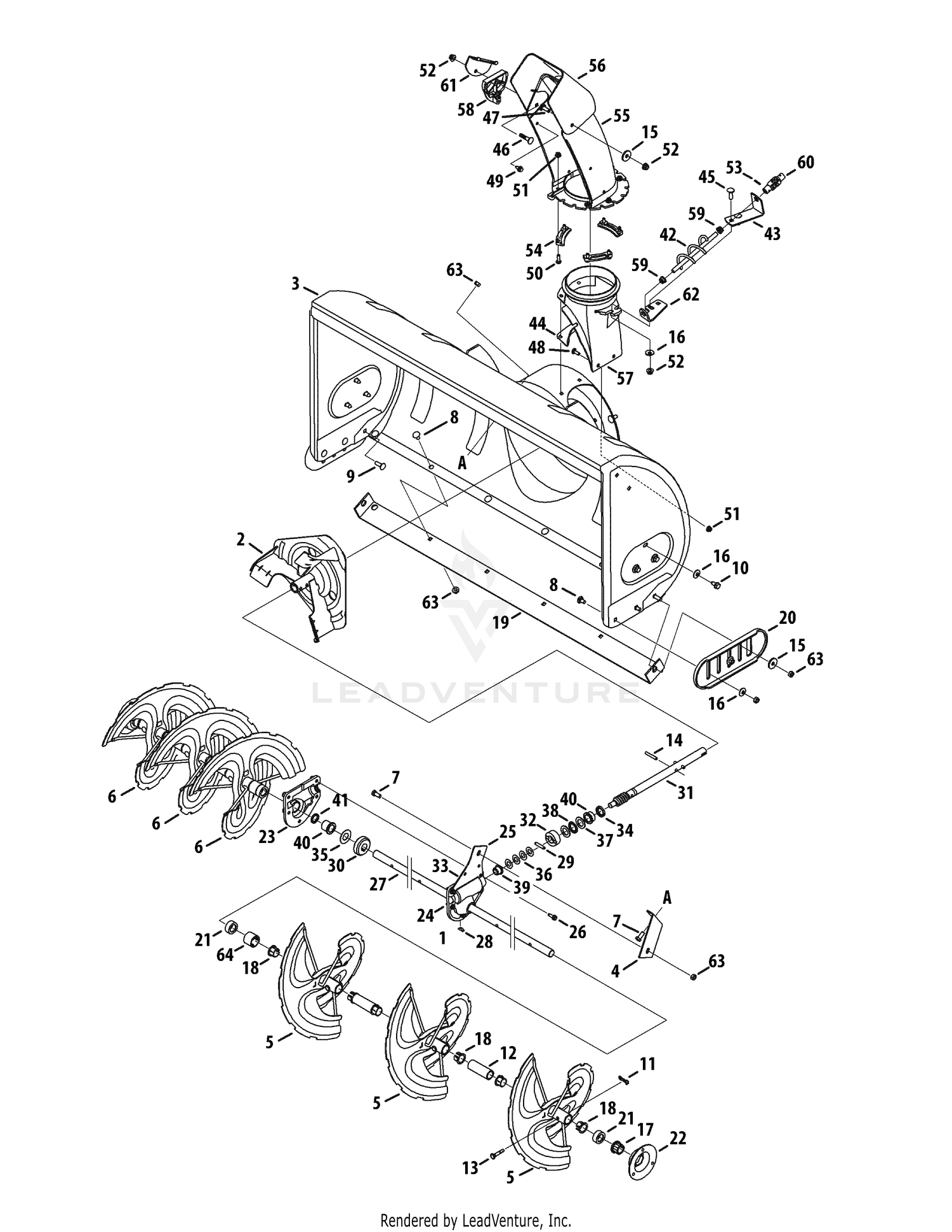

| Ref | Part Number | Description |
|---|
| 1 |
918-04315 |
Auger Gear Box (Incl. Ref. 23-41) Price: $455.26 |
| 3 |
684-0148-0637 |
Housing Assembly Price: $777.50 |
| 4 |
703-2734-0637 |
Housing Brace Bracket Price: $9.17 |
| 5 |
684-04163A-0637 |
Spiral Assembly, LH This part replaces 684-04163-0637. Price: $102.67 |
| 6 |
684-04164A-0637 |
Sipral Assembly, RH This part replaces 684-04164-0637. Price: $102.67 |
| 7 |
710-0759 |
SCREW 5/16-18 x .625 GR5 Not Available Price: |
| 8 |
710-0260A |
Carriage Bolt, 5/16-18 x .62 Price: $3.71 |
| 9 |
710-0276 |
Splined Carriage Screw Price: $3.68 |
| 10 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 11 |
714-04040 |
Bow-Tie Cotter Pin Price: $1.28 |
| 12 |
731-1086A |
Sleeve .758 x 1.00 x 2.70 Price: $9.56 |
| 13 |
738-04124A |
Shear Pin, .25 x 1.50 Price: $1.56 |
| 14 |
715-0114 |
Pin This part replaces 915-0114. Price: $8.68 |
| 15 |
736-0231 |
Flat Washer, .344 x 1.125 x.12 This part replaces 936-0231. Price: $4.02 |
| 16 |
736-0242 |
Bell Washer, .340 x .872 Price: $3.75 |
| 17 |
941-0245 |
Hex Flange Bearing, .75 ID Price: $9.07 |
| 18 |
741-0493C |
FLANGE BUSHING This part replaces 741-0493A. Price: $3.86 |
| 19 |
784-0396C-0637 |
Bracket, Skid Plate, 42" This part replaces 784-0396B-0637. Price: $59.90 |
| 20 |
784-5038B-0637 |
Slide Shoe Price: $24.49 |
| 21 |
711-0469 |
Spacer, .75 x .125 x .5 Price: $7.14 |
| 22 |
784-5618A-0637 |
Hex Bearing Housing, 1.0 Price: $11.45 |
| 23 |
918-0123A |
RH Reducer Housing Price: $46.04 |
| 24 |
918-0124A |
LH Reducer Housing Price: $45.91 |
| 25 |
703-2733A-0637 |
Housing Brace Plate Price: $16.99 |
| 26 |
710-0642 |
Self Tapping Screw, 1/4-20 x .75 Price: $4.05 |
| 27 |
711-04468 |
Spiral Axle, 41.5" Price: $174.72 |
| 28 |
914-0161 |
Hi-Pro Key, 3/16 x 5/8 Price: $3.82 |
| 29 |
715-0143 |
Spring Spiral Pin, .25 x 1.25 This part replaces 915-0143. Price: $4.04 |
| 30 |
917-04861 |
WORM GEAR 20T This part replaces 917-0528A. Price: $37.82 |
| 31 |
717-3320 |
Worm Shaft Price: $119.18 |
| 32 |
718-0513 |
Thrust Collar Price: $11.55 |
| 33 |
721-0325 |
Grease Plug Price: $3.82 |
| 34 |
721-0327 |
Grease Seal Price: $6.10 |
| 35 |
736-0351 |
Washer, Flat, .760 ID x 1.5 OD This part replaces 936-0351. Price: $3.93 |
| 36 |
736-0369 |
Flat Washer, .508 x 1.0 x .020 This part replaces 936-0369. Price: $3.90 |
| 37 |
736-0617 |
Thrust Washer, .75 x 1.25 x .0615 Price: $10.05 |
| 38 |
IH-324105-R92 |
Thrust Bearing, .75 x 1.25 x .078 Price: $9.94 |
| 39 |
948-0108 |
Flange Bearing, .503 x .75 Price: $7.64 |
| 40 |
741-0700 |
Flange Bearing, .75 x 1.0 x .59 Price: $9.94 |
| 41 |
721-0179 |
Seal, Oil, .750 ID This part replaces 921-0179. Price: $7.48 |
| 42 |
684-0061A |
Chute Crank Assembly Price: $36.55 |
| 43 |
703-2735A-0637 |
Chute Crank Bracket Price: $17.16 |
| 44 |
705-5226-0637 |
Chute Reinforcer Price: $9.35 |
| 45 |
710-0276 |
Splined Carriage Screw Price: $3.68 |
| 46 |
710-0262 |
Carriage Bolt, 5/16-18 x 1.5 Price: $3.66 |
| 47 |
710-04071 |
Carriage Screw, 5/16-18 x 1.0 Price: $3.94 |
| 48 |
710-0703 |
Screw, 1/4-20 x .75 Price: $3.66 |
| 49 |
710-0896 |
Hex Index Washer Screw Price: $3.86 |
| 50 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 51 |
712-04064 |
Nylon Hex Lock Nut, 1/4-20 Price: $3.64 |
| 52 |
712-04063 |
Nylon Hex Lock Nut, 5/16-18 Price: $3.56 |
| 53 |
715-04095 |
Spirol Pin, .156 x .875 Price: $4.39 |
| 54 |
731-0851A |
Chute Flange Keeper Price: $3.90 |
| 55 |
731-1300E |
Lower Chute Price: $49.82 |
| 56 |
731-04427B |
UPPER REMOTE CHUTE WITH LABEL This part replaces 731-04427A. Price: $14.55 |
| 57 |
731-1379D |
Adapter Chute Price: $57.72 |
| 58 |
731-1313C |
Chute Tilt Cable Guide Price: $10.46 |
| 59 |
941-0475 |
Plastic Bushing Price: $3.74 |
| 60 |
684-04350 |
Joint Block Assembly Price: $25.48 |
| 61 |
784-5594-0637 |
Cable Bracket Price: $10.15 |
| 62 |
784-5647-0637 |
Chute Crank Bracket Price: $12.51 |
| 63 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
