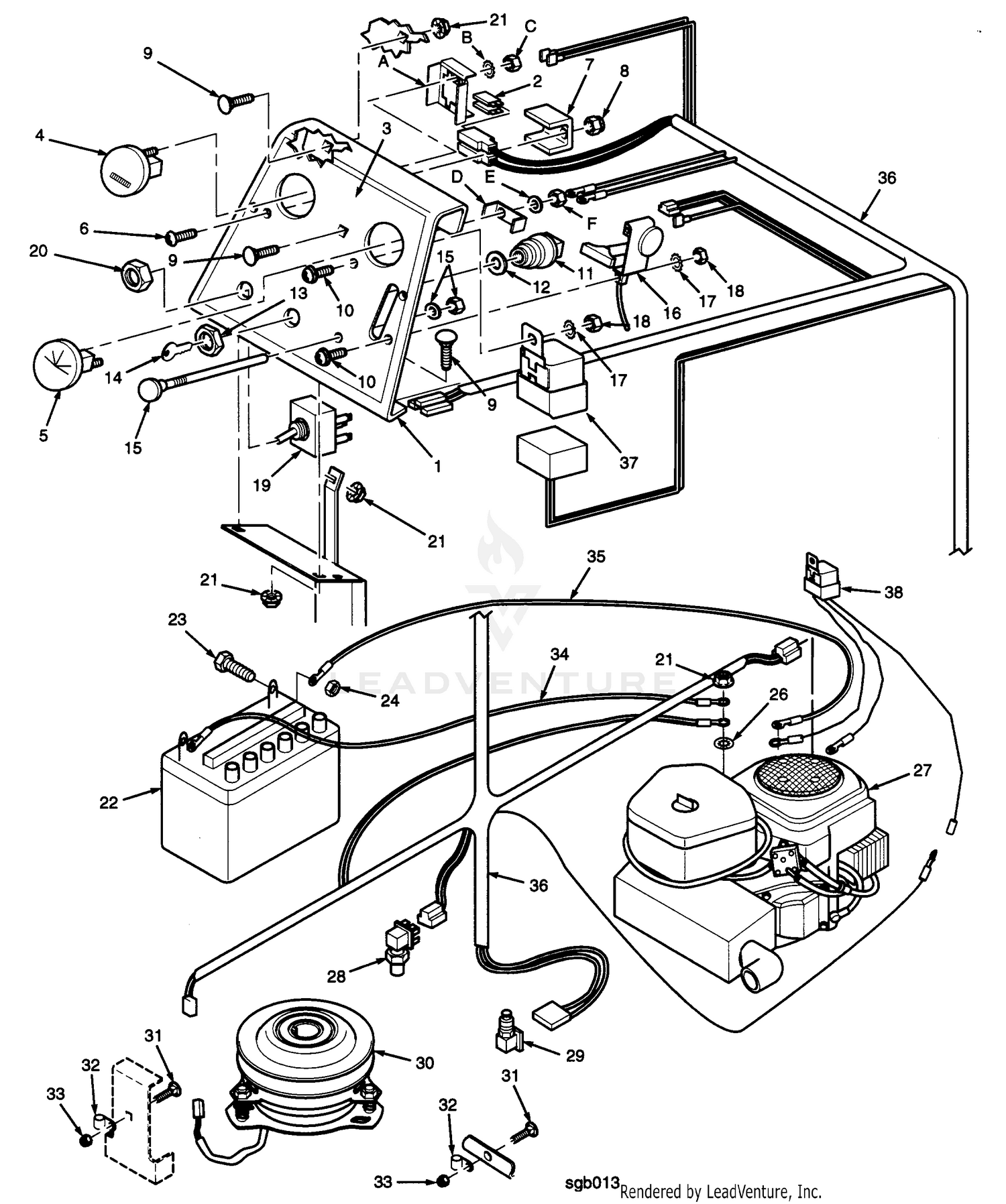

| Ref | Part Number | Description |
|---|
| 1 |
46622 |
INSTRUMENT PANEL(INCLUDES DECAL) Price: Call Us |
| 2 |
48298 |
BLADE FUSE, 20 AMP. Price: Call Us |
| 3 |
481136 |
DECAL, INSTRUMENT PANEL Price: Call Us |
| 4 |
48023 |
HOUR METER(INCLUDES BRACKET&HARDWARE A,B,C,) Price: Call Us |
| 5 |
481755 |
Ammeter This part replaces 48022. Price: Call Us |
| 6 |
04010-11 |
PHILLIPS RD. HEAD SCREW, #10-32 X 1-1/2 Price: Call Us |
| 7 |
42413 |
BRACKET, FUSE HOLDER Price: Call Us |
| 8 |
04021-01 |
ELASTIC STOP NUT, #10-32 Price: Call Us |
| 9 |
04003-12 |
CARRIAGE BOLT, 5/16-18 X 3/4 Price: Call Us |
| 10 |
04010-01 |
PHILLIPS WASHER HEAD SCREW, #10-32 X .50 Price: Call Us |
| 11 |
48798 |
KEYSWITCH Price: Call Us |
| 14 |
48017-02 |
IGNITION KEY AND RING ASSY. Price: Call Us |
| 15 |
482315 |
Choke Control This part replaces 48158. Price: Call Us |
| 16 |
48879 |
THROTTLE CONTROL Price: Call Us |
| 17 |
04031-01 |
LOCKWASHER, #10 EXT. TOOTH Price: Call Us |
| 18 |
04020-01 |
HEX NUT, #10-32 Price: Call Us |
| 19 |
48787 |
SWITCH, PTO Price: Call Us |
| 21 |
04019-03 |
SERR. FL. HH NUT, 5/16-18 Price: Call Us |
| 22 |
48015 |
BATTERY Price: Call Us |
| 23 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 24 |
04020-02 |
HEX NUT 1/4-20 Price: Call Us |
| 26 |
04031-09 |
LOCKWASHER 5/16 INT. TOOTH Price: Call Us |
| 27 |
48836 |
ENGINE, 20 HP KOHLER CV Price: Call Us |
| 27 |
48837 |
ENGINE, 22 HP KOHLER CV Price: Call Us |
| 28 |
481474 |
Switch, Parking Brake This part replaces 48522. Price: Call Us |
| 29 |
481476 |
Switch, Foot Safety This part replaces 48026. Price: Call Us |
| 30 |
461074 |
CLUTCH ASSEMBLY This part replaces 48786. Price: Call Us |
| 31 |
04003-12 |
CARRIAGE BOLT, 5/16-18 X 3/4 Price: Call Us |
| 32 |
48030-09 |
WIRELOOM Price: Call Us |
| 33 |
04021-10 |
LOCKNUT, ELASTIC STOP 5/16-18 Price: Call Us |
| 34 |
48029-15 |
BATTERY CABLE, 36" BLACK Price: Call Us |
| 35 |
48029-13 |
BATTERY CABLE, 25" RED Price: Call Us |
| 36 |
481268 |
WIRE HARNESS, STHM Price: Call Us |
| 37 |
48788 |
RELAY Price: Call Us |
