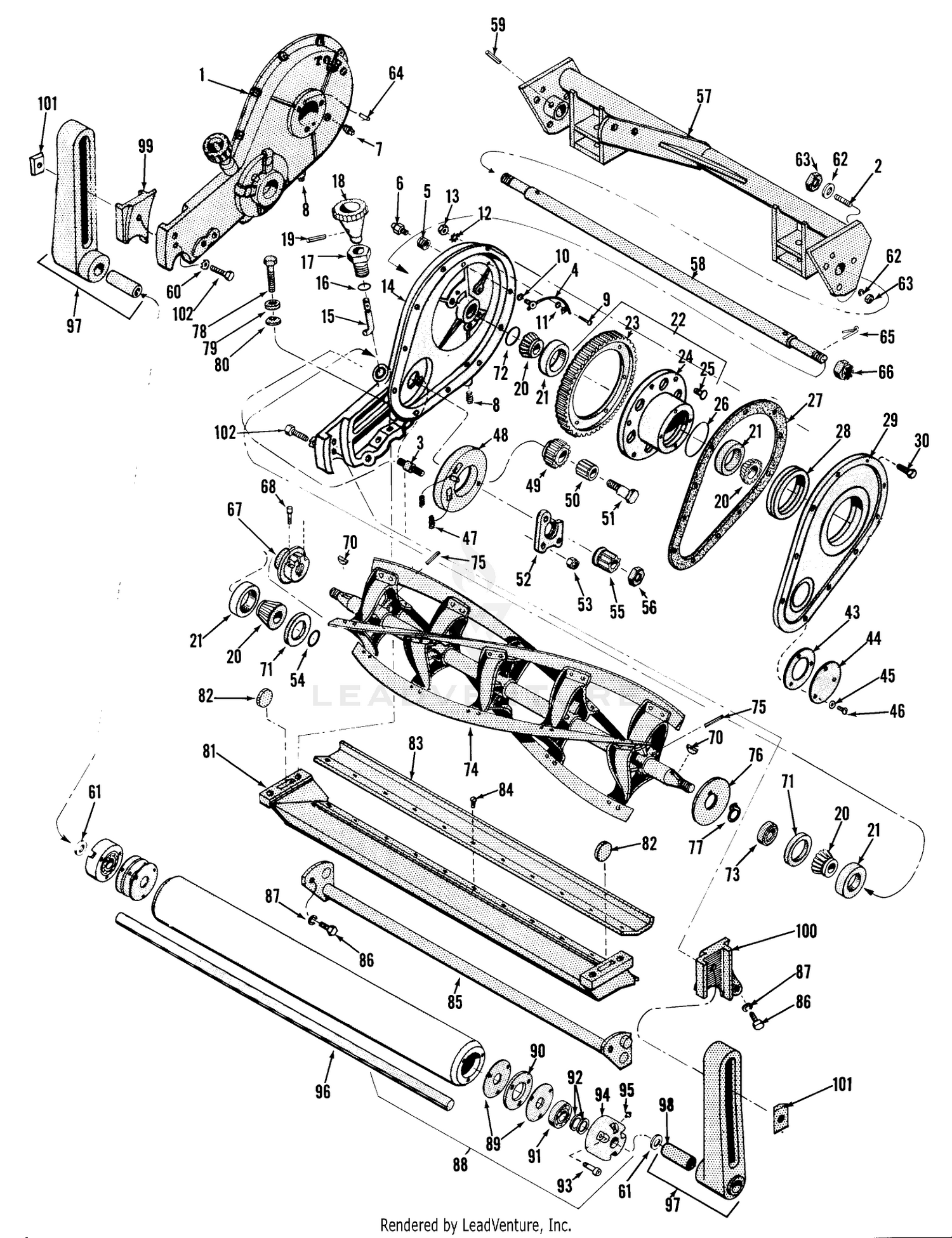

| Ref | Part Number | Description |
|---|
| 1 |
4-5779 |
RH GEAR CASE ASM This part replaces 2-4069. Price: $1,482.44 |
| 14 |
2-4079 |
DISCONTINUED Price: Call Us |
| 15 |
3-3891 |
FINGER-THROWOUT, LH Price: $49.71 |
| 16 |
237-21 |
O-RING Price: $0.70 |
| 17 |
3-3892 |
BEARING-FINGER, THROWOUT Price: $47.64 |
| 18 |
5-1464-03 |
HANDLE-RATCHET, THROWOUT This part replaces 5-1464. Price: $31.84 |
| 19 |
3283-1 |
PIN-GROOVED Price: $1.97 |
| 20 |
254-78 |
BEARING-CONE Price: $12.22 |
| 21 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 22 |
3-6060 |
Ring Gear Hub Assy. Price: Call Us |
| 26 |
237-38 |
O-RING Price: $1.94 |
| 27 |
106-5409 |
GASKET-CASE, GEAR This part replaces 3-5002. Price: $8.86 |
| 28 |
84-8200 |
SEAL-OIL This part replaces 253-101. Price: $13.93 |
| 29 |
3-5430 |
DISCONTINUED X-REF Price: $2.00 |
| 30 |
32140-34 |
DISCONTINUED X-REF Price: Call Us |
| 43 |
106-5408 |
GASKET-COVER This part replaces 5-1458. Price: $2.12 |
| 44 |
5-1460 |
COVER-PINION, REEL Price: $6.07 |
| 45 |
3253-12 |
WASHER-LOCK/SP Price: $0.25 |
| 46 |
3251-9 |
Screw Price: Call Us |
| 47 |
95-1821 |
SPRING-COMPRESSION This part replaces 3-3251. Price: $6.71 |
| 48 |
3-4170 |
RH IDLER RING ASM Price: $108.03 |
| 49 |
3-8314 |
DISCONTINUED X-REF Price: Call Us |
| 50 |
252-6 |
BEARING-NEEDLE Price: $10.72 |
| 51 |
3-9117 |
SHAFT-IDLER PINION, LH Price: $27.41 |
| 52 |
3-3996 |
DISCONTINUED Price: Call Us |
| 53 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 54 |
237-58 |
O-RING Price: $2.18 |
| 55 |
5-1463 |
PINION-REEL Price: $82.16 |
| 56 |
3-8386 |
NUT-PINION, REEL Price: $9.79 |
| 57 |
3-6030 |
DISCONTINUED Price: Call Us |
| 58 |
3-4275 |
AXLE SHAFT Price: $249.43 |
| 59 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 60 |
3255-2 |
WASHER-LOCK, EXT Price: $0.95 |
| 61 |
3-6557 |
THRUST WASHER Price: $6.96 |
| 62 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 63 |
3219-5 |
NUT-HEX Price: $1.22 |
| 64 |
32121-41 |
PIN-ROLL Price: $6.19 |
| 65 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 66 |
5-1462 |
DISCONTINUED Price: Call Us |
| 67 |
2-4219 |
DISCONTINUED Price: Call Us |
| 68 |
3273-14 |
SCREW-HSH Price: $0.81 |
| 70 |
3257-3 |
KEY-WOODRUFF Price: $0.99 |
| 71 |
5-3820 |
OIL SEAL This part replaces 253-102. Price: $8.69 |
| 72 |
237-54 |
O-RING Price: $1.97 |
| 73 |
3-7444 |
DISCONTINUED Price: Call Us |
| 74 |
3-6040 |
DISCONTINUED Price: Call Us |
| 75 |
3279-2 |
DISCONTINUED Price: Call Us |
| 76 |
3-4003 |
Shield Grass Price: Call Us |
| 77 |
32120-33 |
RING-RETAINING Price: $0.68 |
| 78 |
5-3425 |
DISCONTINUED Price: Call Us |
| 79 |
3-7443 |
DISCONTINUED Price: Call Us |
| 80 |
3-7442 |
LOWER WASHER Price: $6.22 |
| 81 |
3-6020 |
DISCONTINUED Price: Call Us |
| 82 |
5-1461 |
KNIFEBAR PIVOT Price: $8.53 |
| 83 |
3-4277 |
BEDKNIFE-SERVICE ONLY Price: $171.20 |
| 84 |
119-4151 |
SCREW-BEDKNIFE This part replaces 3-6462. Price: $0.41 |
| 85 |
3-6050 |
DISCONTINUED Price: Call Us |
| 86 |
324-4 |
SCREW-HH Price: $0.95 |
| 87 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 88 |
8-3990 |
REAR ROLLER ASM This part replaces 1-6679. Price: $352.13 |
| 97 |
2-5129 |
DISCONTINUED Price: Call Us |
| 98 |
3-4010 |
BUSHING ASM Price: $14.71 |
| 99 |
3-4655 |
DISCONTINUE Price: Call Us |
| 100 |
3-4654 |
DISCONTINUE Price: Call Us |
| 101 |
3-4647 |
DISCONTINUED Price: Call Us |
