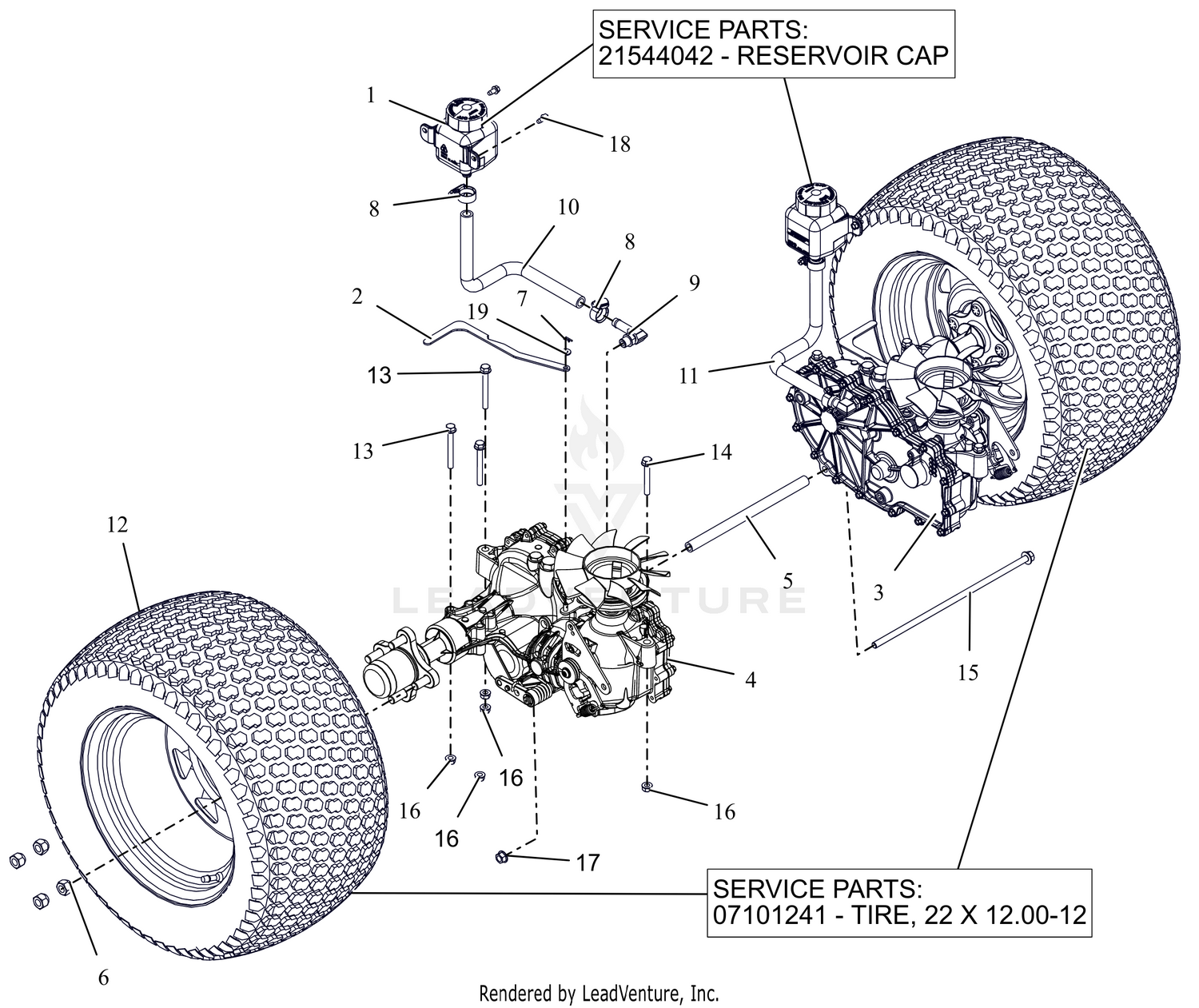

| Ref | Part Number | Description |
|---|
| 1 |
02970200 |
TANK, EXPANSION Price: $29.95 |
| 2 |
05076751 |
BRKT, VALVE DUMP Price: $7.45 |
| 3 |
09159300 |
TRANSAXLE, ZT3200 LH This part replaces 05189900. Price: Call Us |
| 4 |
09159400 |
TRANSAXLE, ZT3200 RH This part replaces 05190000. Price: Call Us |
| 5 |
05196451 |
SPCR,TRANS. .406IDX.63ODX9.95L Price: $12.45 |
| 6 |
06500926 |
NUT, WHEEL .50-20 ZCC Price: $1.45 |
| 7 |
06700223 |
PIN, HAIR #225 .072X1.09 Price: $0.45 |
| 8 |
06923500 |
CLAMP,.88 DIA. HOSE Price: $1.95 |
| 9 |
07001528 |
FITTING, HYD (90 DEG) Price: Call Us |
| 10 |
07001803 |
HOSE, FORMED EXPANSION -HD RH Price: $13.95 |
| 11 |
07001804 |
HOSE, FORMED EXPANSION -HD LH Price: $13.95 |
| 12 |
07101227 |
ASM, WHL/TIRE 22X12.00-12 K500 Price: $252.95 |
| 13 |
05901911 |
BLT,HEX-FLG .31-18X2.75 G5 ZCC Price: $2.45 |
| 14 |
05901910 |
BLT,HEX-FLG .31-18X2.25 G5 ZCC Price: $2.45 |
| 15 |
05901903 |
BLT,HEX-FLG .38-16X13 G5 ZCC Price: $12.95 |
| 16 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 17 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 18 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
