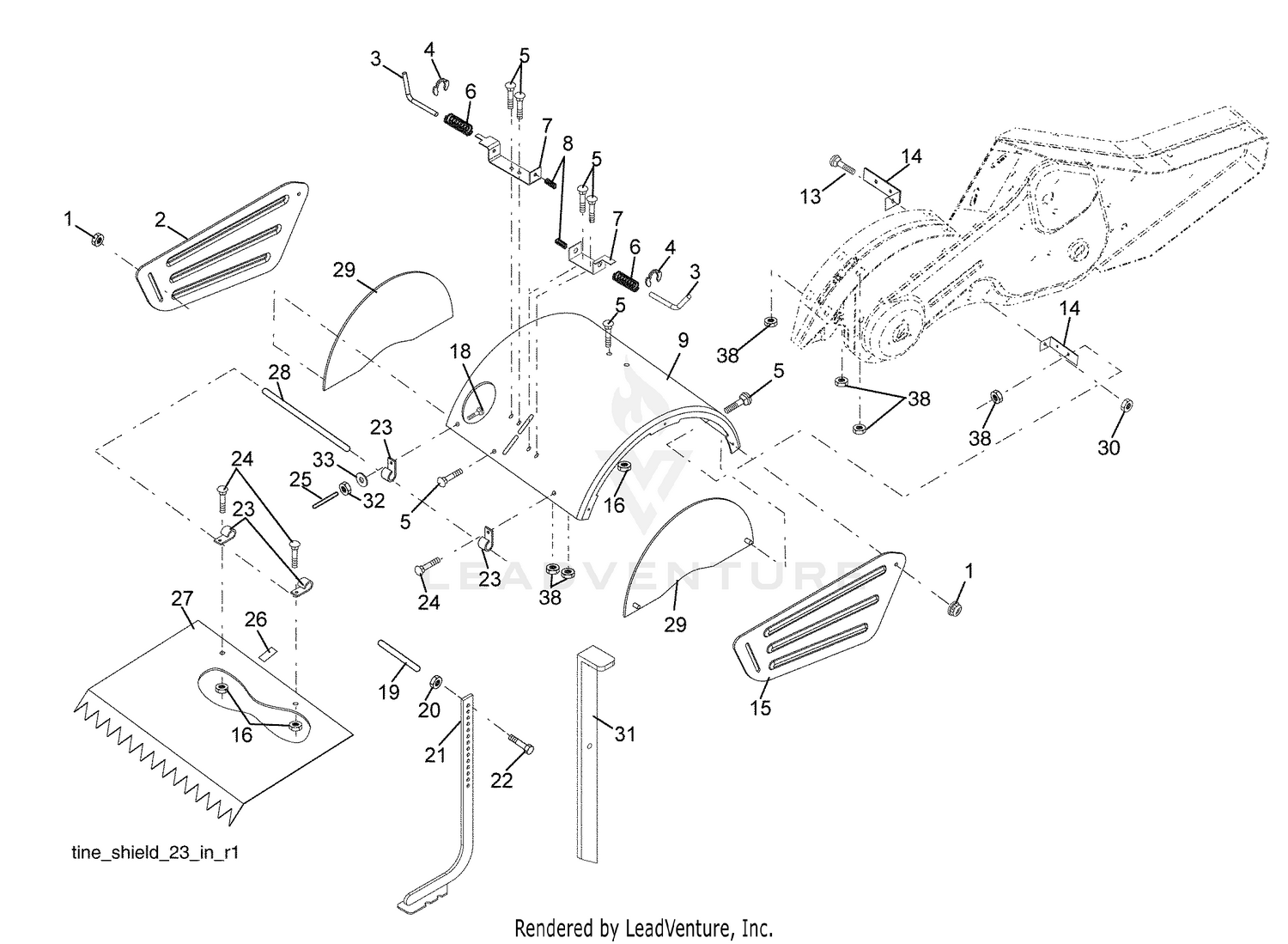

| Ref | Part Number | Description |
|---|
| 1 |
32122-54 |
SCREW-HEAD, TRUSS Price: $2.51 |
| 1 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 2 |
532440452 |
SHIELD.PNT.SIDE.OUTER.LH.ORANG This part replaces 532162952. Price: $17.99 |
| 2 |
59-7930 |
GAUGE BAR PLATE Price: $14.77 |
| 3 |
108-6715 |
GAUGE BAR ASM This part replaces 59-7900. Price: $148.12 |
| 3 |
532008393 |
STAKE PIN TI Price: $19.99 |
| 4 |
32103-3 |
NUT-WING Price: $1.22 |
| 4 |
812000035 |
RING, KLIP Price: $3.99 |
| 5 |
595901601 |
GSPW Bolts This part replaces 532180847. Price: $2.99 |
| 5 |
98-3206 |
DECAL This part replaces 12-9140. Price: $1.99 |
| 6 |
36-4310 |
BRUSH Price: $16.20 |
| 6 |
532008394 |
SPRING TI Price: $7.99 |
| 7 |
29-9100 |
BRUSH AND HANDLE ASM This part replaces 29-9090. Price: $58.15 |
| 7 |
532008392 |
BRACKET.LATCH.STAKE.3.20.BLACK Price: $4.99 |
| 8 |
29-9080 |
HANDLE Price: $53.41 |
| 8 |
532109230 |
SPRING CRT Price: $4.99 |
| 9 |
2410-18 |
CAP-PLASTIC Price: $1.41 |
| 9 |
532440444 |
SHIELD.TINE.DRT17.TILLER.ORANG This part replaces 532403889. Price: $49.99 |
| 10 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $4.99 |
| 11 |
584459301 |
BRACKET.TINE.SHIELD.BLACK This part replaces 532124343. Price: $32.99 |
| 12 |
532440450 |
SHIELD.SIDE OUTER.RH.ORANGE This part replaces 532162953. Price: $17.99 |
| 13 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 14 |
872040410 |
BOLT Price: $3.99 |
| 15 |
532102701 |
GRIP CRT Price: $9.99 |
| 16 |
873220600 |
NUT.HEX.3/8-16UNC Price: $4.99 |
| 17 |
531154801 |
SERVICE KIT STAKE STAKE.DEPTH. This part replaces 532102156. Price: $8.99 |
| 18 |
874930632 |
BOLT.375-16 Price: $5.99 |
| 19 |
532004440 |
HINGE CRT Price: $3.99 |
| 20 |
596133401 |
Bolts This part replaces 872140404. Price: $1.99 |
| 21 |
532006712 |
VINYL CAP Price: $3.99 |
| 22 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 23 |
532440448 |
SHIELD.LEVELING.17".ORANGE This part replaces 532125016. Price: $69.99 |
| 24 |
532120588 |
PIN.HINGE.TILLER Price: $6.99 |
| 25 |
596040501 |
Hardware This part replaces 873970500. Price: $2.99 |
| 26 |
585414301 |
KIT.TILLER.SIDE.SHIELD.BLACK This part replaces 532403960. Price: $37.99 |
| 27 |
532423463 |
RP.STAKE.DEPTH.DRAG.TILLR.GREY Price: $11.99 |
| 28 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 29 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
