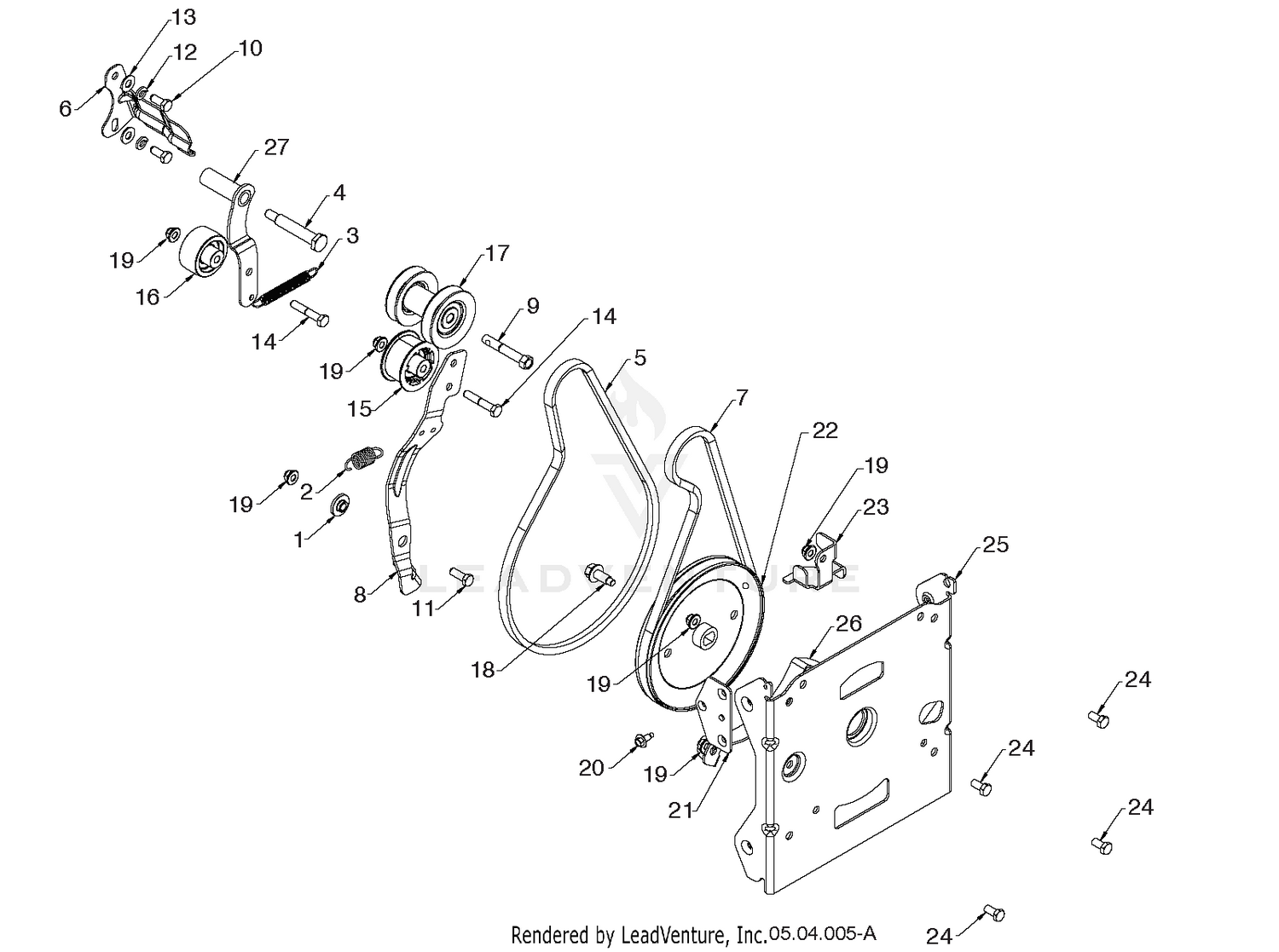

| Ref | Part Number | Description |
|---|
| 1 |
587343701 |
BUSHING.BRAKE.ARM Price: $1.99 |
| 2 |
587031201 |
SPRING RETURN, IDLER ARM, IMPE Price: $1.99 |
| 3 |
580753001 |
SPRING RETURN IDLER ARM Price: $1.99 |
| 4 |
581413801 |
BOLT 5/16-24X2.25 HEX HEAD SHO Price: $1.99 |
| 5 |
584216102 |
BELT.DRIVE.SNOW.DUAL Price: $11.99 |
| 6 |
588492802 |
BELT KEEPER BRACKET Price: $3.99 |
| 7 |
501818201 |
LOW CRANK IMPELLER BELT Price: $12.99 |
| 8 |
580831106 |
ARM.IDLER.AUTO-PH.676 Price: $4.99 |
| 9 |
582388401 |
BOLT.ENGINE.PULLEY Price: $1.99 |
| 10 |
874610512 |
SCREW 5/16-24 X .75 GR5 Price: $1.99 |
| 11 |
874760514 |
Hex, Bolt 5/16 x 18 UNC x 7/8 (AYP part number) Price: $3.99 |
| 12 |
810040500 |
Washer Lock Hvy Hlcl 1/4 (Order from Engine Manufacturer) (AYP part number) Price: $2.99 |
| 13 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 14 |
874760528 |
Bolt, Hex 5/16-18 x 1-3/4 (AYP part number) Price: $2.99 |
| 15 |
581141401 |
PULLEY,IDLER,2.00 W SPA Price: $7.99 |
| 16 |
586880201 |
PULLEY.IDLER.FLANG.2.O/SPACER Price: $7.99 |
| 17 |
587893703 |
PULLEY.ASM.IMPELLER/DRIVE Price: $17.99 |
| 18 |
583814901 |
SCREW FLANGE HEAD CAP WITH DOG Price: $1.99 |
| 19 |
532427942 |
NUTNYLOK.FLRANGE.5/16-18 Price: $2.99 |
| 20 |
585517801 |
HEX.WASHER.HEAD 1/4-20 X .65 Price: $1.99 |
| 21 |
590044602 |
BRACKET NUT BLACK ZINC PLATE Price: $1.99 |
| 22 |
590699201 |
PULLEY IMPELLER DD 4L Price: $12.99 |
| 23 |
587587202 |
GUIDE.LOWER.AUGER.BELT.479 Price: $6.99 |
| 24 |
532163183 |
BOLT, HEX HEAD 5/16-18 Price: $2.99 |
| 25 |
581592502 |
BRACKET.AUG.HOUSING.INTER.BLAC Price: $32.99 |
| 26 |
581632002 |
BRACKET.BELT.KEEPER.LOWER.BLAC Price: $4.99 |
