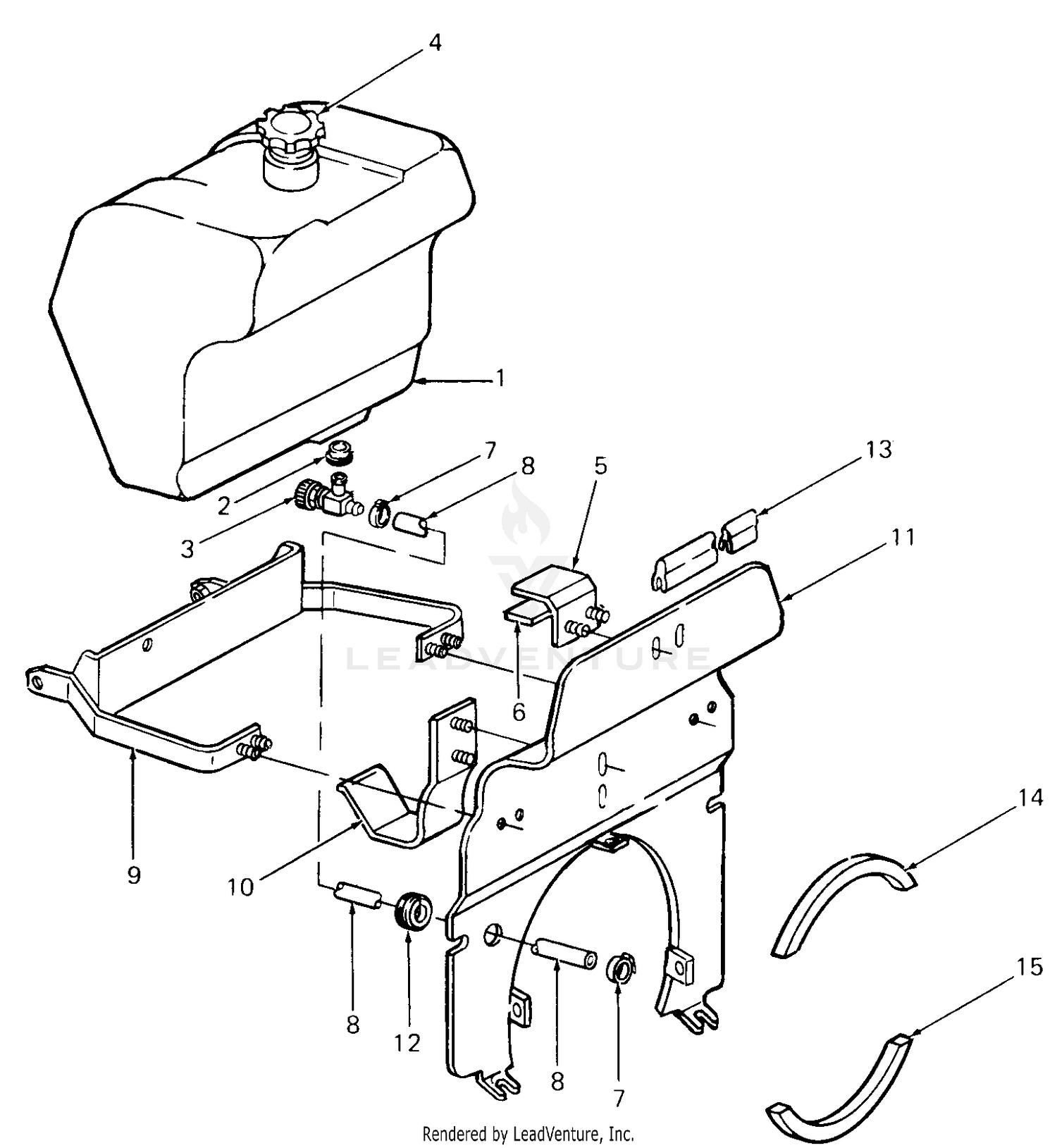

| Ref | Part Number | Description |
|---|
| 1 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 1 |
751-3006 |
FUEL TANK Not Available Price: |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
935-0149 |
Fuel Tank Bushing This part replaces 751-3008. Price: $2.43 |
| 3 |
70-7530 |
SPRING-COMPRESSION Price: $15.72 |
| 3 |
951-0171 |
Fuel Shut-Off Valve with Screen This part replaces 751-0171. Price: $18.13 |
| 4 |
66-2720-03 |
VALVE LEVER ASM This part replaces 66-2720. Price: $56.12 |
| 4 |
951-0226A |
Gas Tank Cap This part replaces 751-0226. Price: $50.20 |
| 5 |
233-39 |
KNOB-CONTROL Price: $16.12 |
| 5 |
703-0057 |
CLAMP-GAS TANK Not Available Price: |
| 6 |
63-7960 |
VALVE-LIFT Price: $636.36 |
| 6 |
735-3004 |
PAD STRIP-GAS TANK Not Available Price: |
| 7 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 7 |
726-0205 |
Clamp, Hose Price: $3.71 |
| 8 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 9 |
237-42 |
O-RING Price: $2.78 |
| 9 |
703-0049 |
Support, Fuel Tank Price: Call Us |
| 10 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 10 |
703-0052 |
SUPPORT-BOTTOM Not Available Price: |
| 11 |
237-22 |
O-RING Price: $2.43 |
| 11 |
703-0055 |
DEFLECTOR, HEAT Not Available Price: |
| 12 |
66-3130 |
FITTING-SPECIAL Price: $76.51 |
| 12 |
735-3003 |
GROMMET Not Available Price: |
| 13 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 13 |
723-3004 |
Seal, Heat Baffle, 56 in. Lg Price: $80.66 |
| 14 |
66-8150 |
HOSE-HYDRAULIC Price: $15.32 |
| 14 |
723-3009 |
STRIP-FOAM 27 IN.LONG Not Available Price: |
| 15 |
66-8500 |
HYD HOSE ASM Price: $89.96 |
| 15 |
723-3010 |
FOAM STRIP 17" Not Available Price: |
| 16 |
321-11 |
SCREW-HH Price: $0.36 |
| 17 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 18 |
76-4830-03 |
VALVE ROD ASM This part replaces 76-4830. Price: $38.97 |
| 19 |
283-16 |
PIN-CLEVIS Price: $2.37 |
| 20 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 21 |
3220-2 |
NUT-JAM Price: $0.50 |
| 22 |
282-27 |
CLEVIS-ADJ Price: $24.71 |
| 23 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 24 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 25 |
66-8190 |
HYDRAULIC HOSE ASM Price: $85.54 |
| 26 |
340-86 |
FITTING-TEE Price: $35.23 |
| 27 |
304-99 |
STEM-HOSE Price: $34.00 |
| 28 |
237-78 |
O-RING Price: $3.85 |
| 29 |
3272-23 |
PIN-COTTER Price: $0.28 |
| 30 |
27-4240 |
PIN-CYLINDER Price: $21.90 |
| 31 |
63-6630 |
HYD CYLINDER ASM Price: $683.92 |
| 32 |
3216-3 |
SCREW-HH Price: $7.20 |
| 33 |
66-8640 |
HYDRAULIC HOSE ASM Price: $104.12 |
| 34 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 35 |
340-70 |
NUT-LOCK Price: $2.10 |
| 36 |
340-71 |
FITTING-STRAIGHT, BULKHEAD Price: $20.74 |
| 37 |
63-7410 |
BRACKET-BULKHEAD Price: $9.20 |
| 38 |
321-4 |
SCREW-HH Price: $0.99 |
| 39 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 40 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 503200235 |
725533755 |
SCREW MC6S 5X35 This part replaces 503200235. Price: $3.99 |
| 503202956 |
503202956 |
SCREW Price: $4.99 |
| 503289043 |
503289043 |
PISTON RING Price: $11.99 |
| 503712201 |
503712201 |
BEARING Price: $11.99 |
| 537014101 |
537014101 |
GASKET Price: $3.99 |
| 537053671 |
537221703 |
MUFFLER This part replaces 537053671. Price: $54.99 |
| 537070701 |
537070701 |
SCREEN Price: $7.99 |
| 537084671 |
537405902 |
PISTON This part replaces 537084671. Price: $69.99 |
| 537085101 |
537085103 |
CYLINDER COMPL This part replaces 537085101. Price: $129.99 |
| 724128759 |
724128759 |
SCREW Price: $2.99 |
