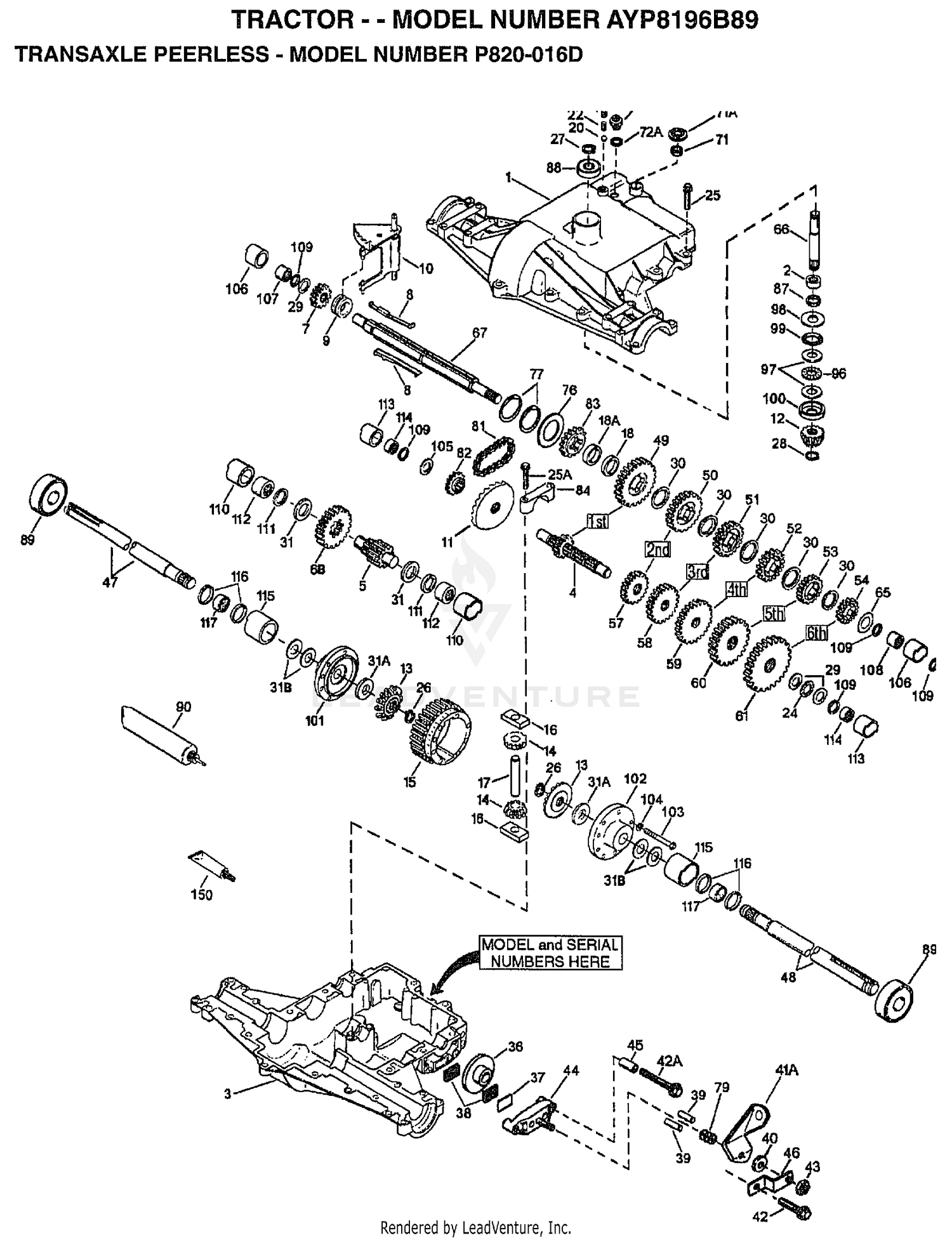

| Ref | Part Number | Description |
|---|
| 1 |
772098A |
COVER TRANSAXLE Price: Call Us |
| 1 |
98-7485 |
CRANKSHAFT-COMPLETE Price: $2,665.17 |
| 2 |
780155 |
BEARING NEEDLE Price: Call Us |
| 3 |
770088 |
CASE TRANSAXLE Price: Call Us |
| 4 |
776291 |
SHAFT COUNTER Price: Call Us |
| 5 |
776275 |
SHAFT, OUTPUT, 9T Price: Call Us |
| 6B |
778247 |
GEAR, OUTPUT, 35T Price: Call Us |
| 7 |
778253 |
GEAR, SPUR, 15T Price: Call Us |
| 8 |
792180 |
SHIFT KEY Price: Call Us |
| 9 |
784352 |
COLLAR, SHIFTER Price: Call Us |
| 10 |
784375 |
SHIFT FORK Price: Call Us |
| 11 |
778246 |
GEAR BEVEL, 33T Price: Call Us |
| 12 |
778245 |
BEVEL PINION, 13T Price: Call Us |
| 13 |
778198 |
GEAR BEVEL Price: Call Us |
| 14 |
778197 |
PINION, 10T Price: Call Us |
| 14 |
98-7507 |
PLUG Price: $2.64 |
| 15 |
778248 |
GEAR, RING, 31T Price: Call Us |
| 15 |
98-7528 |
O RING-COPPER Price: $1.79 |
| 16 |
786027 |
BLOCK DRIVE Price: Call Us |
| 16 |
98-7509 |
O-RING Price: $4.31 |
| 17 |
786019 |
PIN DRIVE Price: Call Us |
| 17 |
98-7510 |
COCK-DRAIN Price: $16.83 |
| 18 |
786121 |
SPACER, .350/.340 THICK Price: Call Us |
| 18 |
98-7511 |
JOINT-COCK, DRAIN Price: $10.95 |
| 18A |
786122 |
SPACER, .276/.268 THICK Price: Call Us |
| 19 |
98-7512 |
OIL PUMP ASM Price: $153.92 |
| 20 |
115-8648 |
GASKET-PUMP, OIL This part replaces 98-7513. Price: $1.95 |
| 20 |
792077 |
BALL STEEL, 5/16" DIA. Price: Call Us |
| 21 |
792078 |
SCREW, 3/8-16 X 3/8" Price: Call Us |
| 21 |
98-7514 |
BOLT Price: $0.99 |
| 22 |
792079 |
SPRING Price: Call Us |
| 22 |
98-7699 |
WASHER-SPRING This part replaces 98-7515. Price: $0.44 |
| 23 |
98-7516 |
GEAR-DRIVE, OIL PUMP Price: $82.70 |
| 24 |
780071 |
THRUST BEARING Price: Call Us |
| 24 |
98-7517 |
KEY-FEATHER Price: $0.57 |
| 25 |
792129A |
SCREW, 5/16-18 X 1-1/4 Price: Call Us |
| 25A |
792073A |
SCREW Price: Call Us |
| 26 |
792018 |
RING STRAP Price: Call Us |
| 27 |
792018 |
RING STRAP Price: Call Us |
| 28 |
788040 |
RETAINING RING Price: Call Us |
| 29 |
780072 |
WASHER THRUST Price: Call Us |
| 30 |
780108 |
WASHER THRUST Price: Call Us |
| 31 |
780128 |
WASHER THRUST Price: Call Us |
| 31A |
780107 |
WASHER Price: Call Us |
| 31B |
780042 |
WASHER THRUST Price: Call Us |
| 36 |
790043 |
DISK BRAKE Price: Call Us |
| 37 |
790007 |
PLATE BRAKE PAD Price: Call Us |
| 38 |
799021 |
BRAKE PAD Price: Call Us |
| 39 |
786026 |
PIN DOWEL Price: Call Us |
| 40 |
792076A |
WASHER Price: Call Us |
| 41A |
790047 |
LEVER BRAKE Price: Call Us |
| 42 |
792073A |
SCREW Price: Call Us |
| 42A |
792085A |
SCREW, 1/4-20 X 2-1/4 Price: Call Us |
| 43 |
792075 |
LOCKNUT 5/16-24 Price: Call Us |
| 44 |
790025 |
HOLDER BRAKE PAD Price: Call Us |
| 45 |
786067 |
SPACER Price: Call Us |
| 46 |
786086 |
BRKT BRAKE LEVER Price: Call Us |
| 47 |
774832 |
AXLE, 12-5/16" LONG Price: Call Us |
| 48 |
774831 |
AXLE, 16-3/16" LONG Price: Call Us |
| 49 |
778216A |
GEAR, SPUR, 41T Price: Call Us |
| 50 |
778206A |
GEAR, SPUR, 35T Price: Call Us |
| 51 |
778205A |
GEAR, SPUR, 30T Price: Call Us |
| 52 |
778204A |
GEAR, SPUR, 25T Price: Call Us |
| 53 |
778203A |
GEAR, SPUR, 22T Price: Call Us |
| 54 |
778273 |
GEAR, SPUR, 19T Price: Call Us |
| 57 |
778199 |
GEAR, SPUR, 15T Price: Call Us |
| 58 |
778200 |
GEAR, SPUR, 20T Price: Call Us |
| 59 |
778201 |
GEAR, SPUR, 25T Price: Call Us |
| 60 |
778202 |
GEAR, SPUR, 28T Price: Call Us |
| 61 |
778208 |
GEAR, SPUR, 31T Price: Call Us |
| 65 |
780109 |
WASHER, THRUST Price: Call Us |
| 65 |
780139 |
WASHER Price: Call Us |
| 66 |
776274 |
SHAFT INPUT Price: Call Us |
| 67 |
776385 |
SHIFTER & BRAKE SHAFT Price: Call Us |
| 71 |
788069 |
SEAL SQUARE CUT Price: Call Us |
| 71A |
792145 |
PUSHNUT Price: Call Us |
| 72 |
792165 |
THREADED PLUG 9/16-18 Price: Call Us |
| 76 |
780090 |
WASHER, THRUST Price: Call Us |
| 77 |
788078A |
INVERTED RETAINING RING Price: Call Us |
| 79 |
792144 |
SPRING Price: Call Us |
| 81 |
786081 |
CHAIN, ROLLER Price: Call Us |
| 82 |
786082 |
SPROCKET 9T Price: Call Us |
| 83 |
786123 |
SPROCKET 18T (REV) Price: Call Us |
| 84 |
786131 |
BEARING CAP Price: Call Us |
| 87 |
788042 |
OIL SEAL 3/4 Price: Call Us |
| 88 |
780119 |
BEARING BALL Price: Call Us |
| 89 |
780050 |
BEARING BALL Price: Call Us |
| 90 |
788067B |
GREASE BENTONITE, 32 OZ. Price: Call Us |
| 96 |
780084 |
BEARING THRUST Price: Call Us |
| 97 |
780051 |
WASHER THRUST Price: Call Us |
| 98 |
780165 |
WASHER Price: Call Us |
| 100 |
780166 |
WASHER CUPPED Price: Call Us |
| 101 |
774833 |
CARRIER DIFF THREADED HOLES Price: Call Us |
| 102 |
774834 |
CARRIER DIFF Price: Call Us |
| 103 |
792020 |
SCREW, 1/4-20 X 2-1/4 Price: Call Us |
| 104 |
792006 |
WASHER LOCK 1/4 Price: Call Us |
| 105 |
780153 |
WASHER Price: Call Us |
| 106 |
786144 |
SLEEVE Price: Call Us |
| 107 |
780152 |
BEARING NEEDLE Price: Call Us |
| 108 |
780150 |
BEARING NEEDLE Price: Call Us |
| 110 |
786142 |
SLEEVE STEPPED Price: Call Us |
| 111 |
788071 |
RING SQ CUT Price: Call Us |
| 112 |
780168 |
BEARING NEEDLE CAPPED Price: Call Us |
| 113 |
786143 |
SLEEVE STEPPED Price: Call Us |
| 114 |
780151 |
BEARING NEEDLE CAPPED Price: Call Us |
| 115 |
786145 |
SLEEVE STEPPED Price: Call Us |
| 116 |
788070 |
RING SQ CUT Price: Call Us |
| 117 |
780031 |
BEARING NEEDLE Price: Call Us |
