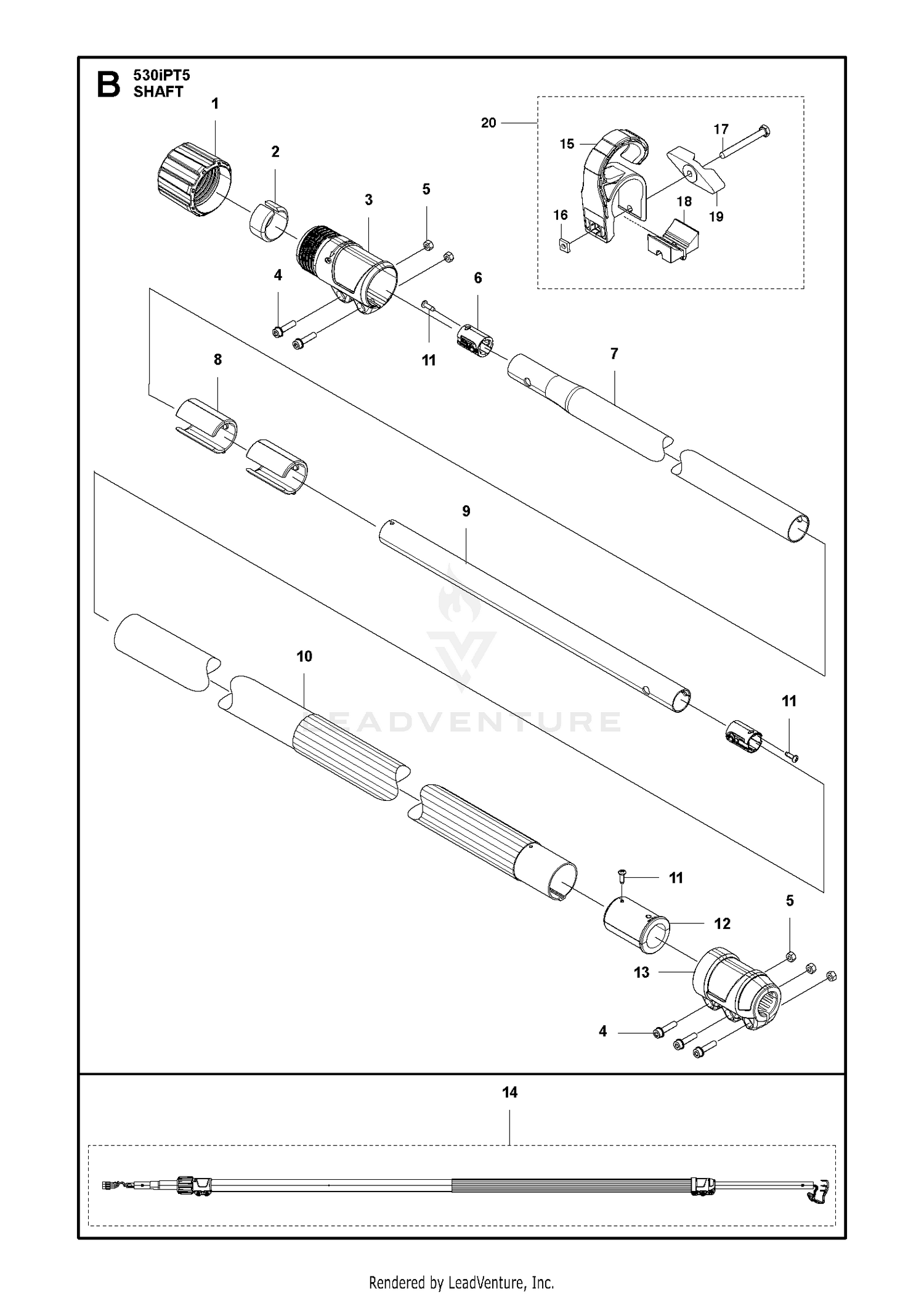

SHAFT
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510096101 | NUT Price: $8.99 |
| 2 | 522742601 | RING Price: $2.99 |
| 3 | 597194301 | CLAMPING SLEEVE This part replaces 510096001. Price: $11.99 |
| 4 | 731231401 | NUT Price: $1.99 |
| 5 | 503200776 | SCREW Price: $3.99 |
| 7 | 587004701 | TUBE UPPER Price: $59.99 |
| 8 | 587004801 | GUIDE BUSHING Price: $5.99 |
| 9 | 587207301 | TUBE LOWER Price: $49.99 |
| 10 | 586914201 | TUBE ASSY LOWER Price: $59.99 |
| 11 | 545227101 | SCREW 6-19X.437 This part replaces 530016064. Price: $2.99 |
| 12 | 587730601 | SLEEVE Price: $8.99 |
| 13 | 522597001 | CLAMPING SLEEVE Price: $9.99 |
| 14 | 586914301 | TUBE ASSY TELESCOPIC Price: $199.99 |
| 15 | 522723101 | LOOP Price: $4.99 |
| 16 | 502197101 | NUT Price: $0.25 |
| 17 | 725238151 | SCREW M6X55 Price: $3.99 |
| 18 | 522723301 | SPACING BLOCK Price: $4.99 |
| 19 | 502203801 | HANDLE Price: $5.99 |
| 20 | 579264001 | LOOP Price: $17.99 |
