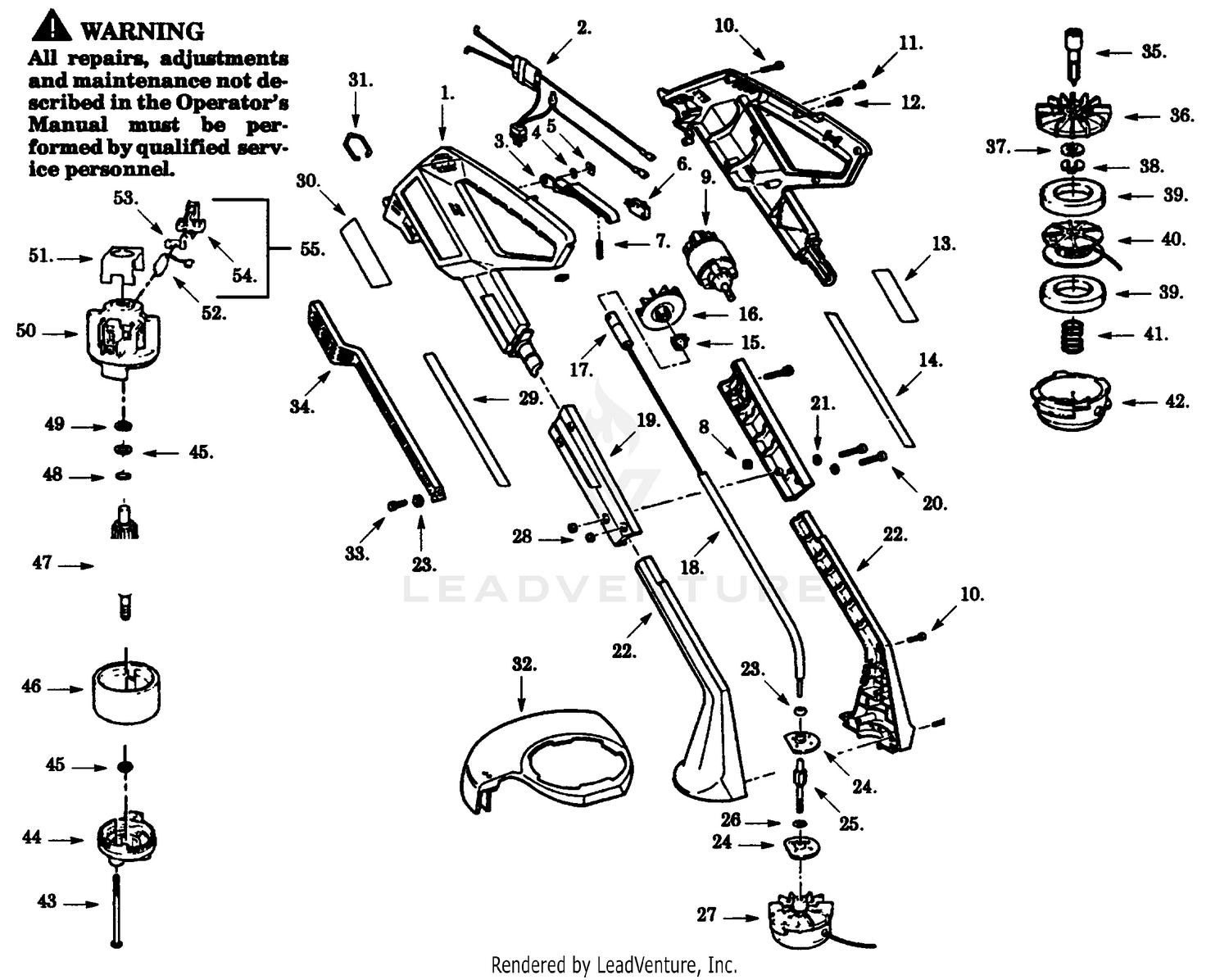

TRIMMER/BRUSHCUTTER ASSEMBLY
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 32120-72 | RING-SNAP Price: $2.09 |
| 1 | 534787902 | Motor Hsg. Set Price: $22.99 |
| 2 | 30-0590 | DISCONTINUED Price: Call Us |
| 2 | 534789301 | Harness Price: $3.33 |
| 3 | 3257-5 | KEY-WOODRUFF This part replaces 30-0660. Price: $5.13 |
| 3 | 534788305 | Trigger Price: $1.99 |
| 4 | 30-0630 | DISCONTINUED Price: Call Us |
| 4 | 534228802 | Washer Price: $0.99 |
| 5 | 253-122 | SEAL-OIL This part replaces 30-0640. Price: $6.83 |
| 5 | 534790800 | Push Nut Price: $0.99 |
| 6 | 30-0650 | GEAR BOX HSG Price: $397.76 |
| 6 | 534789000 | Switch Price: $2.99 |
| 7 | 37-5840 | DISCONTINUED Price: Call Us |
| 7 | 534790700 | Trigger Spring Price: $1.99 |
| 8 | 30-0620 | DISCONTINUED Price: Call Us |
| 8 | 534808100 | Square Nut Price: $3.33 |
| 9 | 30-0670 | DISCONTINUED Price: Call Us |
| 9 | 534768301 | Motor Ass'y. Price: $74.99 |
| 10 | 30-0680 | DISCONTINUED Price: Call Us |
| 10 | 534790300 | Screw Price: $3.33 |
| 11 | 12-3270 | SCREW Price: $3.09 |
| 11 | 534731402 | Screw Price: $3.33 |
| 12 | 30-0690 | DISCONTINUED Price: Call Us |
| 12 | 534790301 | Screw Price: $3.33 |
| 13 | 534798700 | Warning Label (Not a serviceable part) Price: $3.33 |
| 14 | 534789600 | Logo Label (L) Price: $3.33 |
| 15 | 534560103 | Fan Clamp Price: $1.99 |
| 16 | 534526802 | Fan Price: $2.99 |
| 17 | 534788505 | Flex Shaft Ass'y. Price: $11.99 |
| 18 | 534788902 | Sleeve Tubing Price: $3.33 |
| 19 | 534788102 | Housing Clamp Price: $3.33 |
| 20 | 534799500 | Screw Price: $1.99 |
| 21 | 534228805 | Washer Price: $3.33 |
| 22 | 534788005 | Spindle Housing Price: $14.99 |
| 23 | 534636002 | Washer Price: $1.99 |
| 24 | 534790600 | Bearing Holder Disk Price: $2.99 |
| 25 | 534789900 | Shaft Adapter Price: $3.33 |
| 26 | 534228802 | Washer Price: $0.99 |
| 27 | 534631865 | Cutting Head Ass'y. Price: $3.33 |
| 28 | 534790500 | Nut Price: $1.99 |
| 29 | 534798500 | Logo Label (R) Price: $3.33 |
| 30 | 534798800 | Nameplate Label (Not a serviceable part) Price: $3.33 |
| 31 | 534270100 | Hanger Price: $1.99 |
| 32 | 534790400 | Guard Ass'y. Price: $0.60 |
| 33 | 534808200 | Screw Price: $3.99 |
| 34 | 534788405 | Assist Handle Price: $6.99 |
| 35 | 534589900 | Drive Adapter Price: $24.99 |
| 36 | 534487115 | Rear Plate Price: $6.99 |
| 37 | 534220146 | Washer Price: $1.99 |
| 38 | 534246703 | Retaining Ring Price: $1.99 |
| 39 | 534158602 | Foam Pad Price: $0.60 |
| 40 | 534486805 | Spool & Line Price: $5.88 |
| 41 | 534157401 | Spring Price: $0.99 |
| 42 | 534486465 | Hub Ass'y. Price: $5.99 |
| 43 | 534228703 | Screw Price: $3.33 |
| 44 | 534207101 | Endbell Ass'y. (Drive) Price: $3.33 |
| 45 | 534228800 | Washer Price: $1.99 |
| 46 | 534227004 | Field Ass'y. Price: $22.99 |
| 47 | 534767701 | Armature Ass'y. Price: $34.99 |
| 48 | 534246700 | Retaining Ring Price: $0.99 |
| 49 | 534238903 | Washer Price: $1.99 |
| 50 | 534227501 | Endbell Ass'y. (Brush) Price: $3.33 |
| 51 | 534226000 | Insulator Price: $3.33 |
| 52 | 534227800 | Brush Price: $3.16 |
| 53 | 534228000 | Brush Spring Price: $1.99 |
| 54 | 534227700 | Brush Holder Price: $3.33 |
| 55 | 534450400 | Brush Kit (Incl. 52,53,54) Price: $12.32 |
