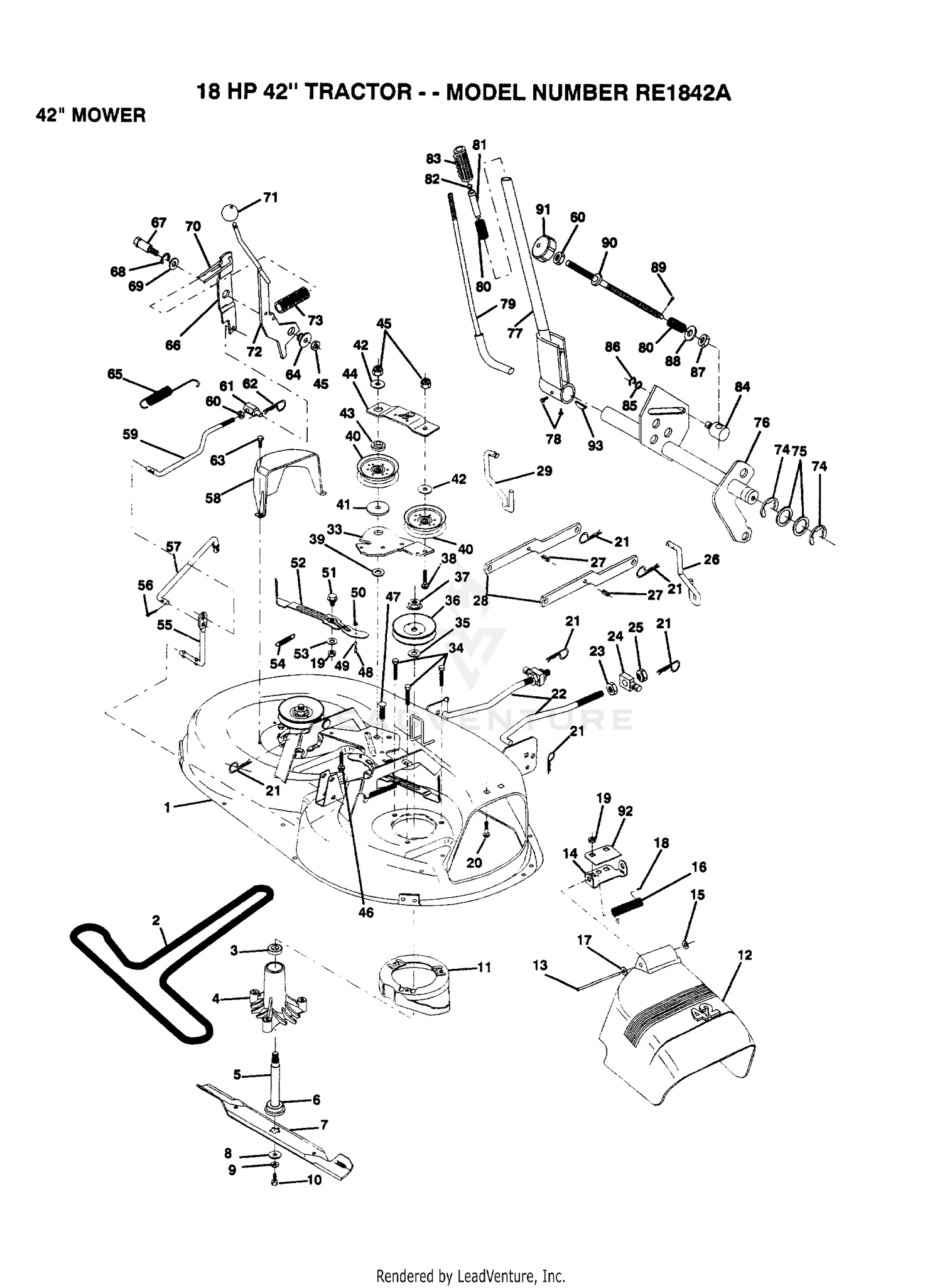

| Ref | Part Number | Description |
|---|
| 1 |
130970 |
SUB= 145338 Price: Call Us |
| 1 |
2412-106 |
CLAMP-R Price: $2.04 |
| 2 |
130969 |
BELT-V.92.4.MWR Price: Call Us |
| 2 |
321-5 |
SCREW-HH Price: $0.22 |
| 3 |
110485X |
BEARING Price: Call Us |
| 4 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 4 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 5 |
133172 |
SUB= 137646 Price: Call Us |
| 6 |
129895 |
BEARING.BALL Price: Call Us |
| 7 |
127843 |
SUB= 138498 Price: Call Us |
| 7 |
92-9273-03 |
CONSOLE-CENTER Price: $4,636.98 |
| 8 |
129962 |
WASHER BLADE Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 10 |
850857 |
BLADE BOLT Price: Call Us |
| 10 |
86-6490 |
DECAL-4WD, RH Price: $18.56 |
| 11 |
128961 |
SUB= 140329 Price: Call Us |
| 12 |
130968 |
DEFLECTOR.SHIELD Price: Call Us |
| 12 |
33113-016 |
SCREW-HH Price: $0.34 |
| 13 |
131491 |
HINGE ROD Price: Call Us |
| 13 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 14 |
131267 |
DEFLECTOR BRKT Price: Call Us |
| 14 |
92-4799 |
FITTING-TEE, HYD Price: $159.71 |
| 15 |
110452X |
NUT PUSH M Price: Call Us |
| 15 |
68-6150 |
BREATHER Price: $27.22 |
| 16 |
123713X |
SPRING TORSION Price: Call Us |
| 16 |
98-3844 |
BREATHER TUBE ASM Price: $93.59 |
| 17 |
19111016 |
WASHER Price: Call Us |
| 17 |
237-65 |
O-RING Price: $2.50 |
| 18 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 19 |
32148-6 |
NUT-CLINCH Price: $1.24 |
| 19 |
73680500 |
SUB= 73690500 Price: Call Us |
| 20 |
72140506 |
BOLT Price: Call Us |
| 20 |
93-9406 |
DECAL-GLASS, SIGHT Price: $28.02 |
| 21 |
4939M |
SUB= 85902 Price: Call Us |
| 21 |
58-5940 |
PLUG-GAGE, SIGHT Price: $184.36 |
| 22 |
127218 |
LINK.FRONT Price: Call Us |
| 22 |
48-6900 |
SCREW Price: $1.52 |
| 23 |
73350800 |
NUT Price: Call Us |
| 24 |
130171 |
TRUNION Price: Call Us |
| 24 |
92-5682 |
STRIP-SEALING Price: $20.71 |
| 25 |
58-0980-01 |
MUDGUARD-LH Price: $432.91 |
| 25 |
73800800 |
NUT.LK.W/WSH.1/2. Price: Call Us |
| 26 |
135388 |
LIFT LINK RH Price: Call Us |
| 26 |
93-9407 |
DECAL-LEVER, LIFT Price: $17.21 |
| 27 |
128763 |
SPRING PIN Price: Call Us |
| 28 |
130832 |
SUB= 130833 Price: Call Us |
| 29 |
134619 |
LINK LIFT LH Price: Call Us |
| 32 |
104-5203 |
DECAL-HILLSIDE (ANSI) Price: $68.20 |
| 32 |
104-5204 |
DECAL-HILLSIDE (CE) Price: $66.05 |
| 33 |
133844 |
IDLER ARM Price: Call Us |
| 33 |
68-7840 |
STRIP-SEALING Price: $19.08 |
| 34 |
78158 |
SUB= 17580520 Price: Call Us |
| 35 |
129963 |
WASHER Price: Call Us |
| 36 |
129861 |
SUB= 153535 Price: Call Us |
| 37 |
58-1750-03 |
PANEL-ACCESS Price: $270.79 |
| 37 |
73050900 |
SUB= 139729 Price: Call Us |
| 38 |
72110614 |
BOLT Price: Call Us |
| 38 |
92-4746-01 |
MUDGUARD-RH Price: $452.39 |
| 39 |
133943 |
HARDENED WASHER Price: Call Us |
| 40 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 41 |
122052X |
SPACER RETAINER Price: Call Us |
| 42 |
19131612 |
WASHER GT Price: Call Us |
| 43 |
133502 |
RETAINER SPACER Price: Call Us |
| 44 |
133503 |
IDLER ARM STIFF Price: Call Us |
| 44 |
48-7890 |
NUT-HEX Price: $0.25 |
| 45 |
321-24 |
SCREW-HH Price: $2.31 |
| 45 |
73680600 |
SUB= 73690600 Price: Call Us |
| 46 |
72110618 |
BOLT CARRIAGE Price: Call Us |
| 47 |
133835 |
XMAS TREE FASTNER Price: Call Us |
| 47 |
58-9160 |
PLUG-DRAIN Price: $23.70 |
| 48 |
131340 |
SHOULDER BOLT Price: Call Us |
| 48 |
68-7810 |
PANEL-LINING Price: $140.77 |
| 49 |
133940 |
SUB= 151785 Price: Call Us |
| 49 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 50 |
48-7120 |
ELEMENT-SUCTION Price: $153.05 |
| 50 |
69180 |
LOCKNUT Price: Call Us |
| 51 |
105529X |
SUB= 139888 Price: Call Us |
| 52 |
131845 |
BRAKE PAD ARM ASM Price: Call Us |
| 52 |
93-9425 |
DECAL-DANGER Price: $28.20 |
| 53 |
133944 |
HARD SMALL WASHER Price: Call Us |
| 54 |
131335 |
SPRING EXTENSION Price: Call Us |
| 54 |
92-5699 |
DECAL-4WD, LH Price: $18.56 |
| 55 |
133551 |
PIVOT ROD Price: Call Us |
| 56 |
76020312 |
SUB= 3145 Price: Call Us |
| 57 |
133504 |
CLUTCH ROD SECOND Price: Call Us |
| 57 |
3250-36 |
SCREW-PPH Price: $2.41 |
| 58 |
131857 |
SUB= 140088 Price: Call Us |
| 59 |
133550 |
SUB= 142427 Price: Call Us |
| 59 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 60 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 60 |
73350600 |
NUT Price: Call Us |
| 61 |
133205 |
TRUNION Price: Call Us |
| 62 |
4497H |
RETAINER M Price: Call Us |
| 63 |
17720410 |
SCREW LT Price: Call Us |
| 64 |
127498 |
BUSHING Price: Call Us |
| 65 |
131870 |
RETURN SPRING Price: Call Us |
| 66 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 67 |
128903 |
SHOULDER BOLT Price: Call Us |
| 68 |
12000029 |
RING Price: Call Us |
| 69 |
121748X |
WASHER Price: Call Us |
| 70 |
127845 |
SPRING KEEPER Price: Call Us |
| 71 |
132044 |
SUB= 532132044 Price: Call Us |
| 72 |
131813 |
SUB= 532131813 Price: Call Us |
| 73 |
128759 |
SUB= 918128759 Price: Call Us |
| 74 |
12000022 |
E-RING Price: Call Us |
| 75 |
19292016 |
WASHER Price: Call Us |
| 76 |
131874X |
SUB= 532131874 Price: Call Us |
| 77 |
121718X |
LEVER LIFT Price: Call Us |
| 78 |
23180606 |
SCREW Price: Call Us |
| 79 |
121719X |
ROD ASS'Y LEVER Price: Call Us |
| 80 |
2876H |
SPRING T Price: Call Us |
| 81 |
122364X |
SUB= 125925X Price: Call Us |
| 82 |
124526X |
SUB= 125925X Price: Call Us |
| 83 |
109413X |
GRIP Price: Call Us |
| 84 |
110810X |
TRUNION LT Price: Call Us |
| 85 |
19151216 |
WASHER Price: Call Us |
| 86 |
12000037 |
KLIP RING Price: Call Us |
| 87 |
110807X |
NUT T Price: Call Us |
| 88 |
19131016 |
WASHER Price: Call Us |
| 89 |
76020308 |
SUB= 3145 Price: Call Us |
| 90 |
110729X |
ROD LIFT LT Price: Call Us |
| 91 |
100734K |
SUB= 138057 Price: Call Us |
| 92 |
134753 |
STIFFENER BRKT Price: Call Us |
| 93 |
8330H |
KEY STD Price: Call Us |
| 132708 |
MANUAL |
Price: Call Us 132708 |
