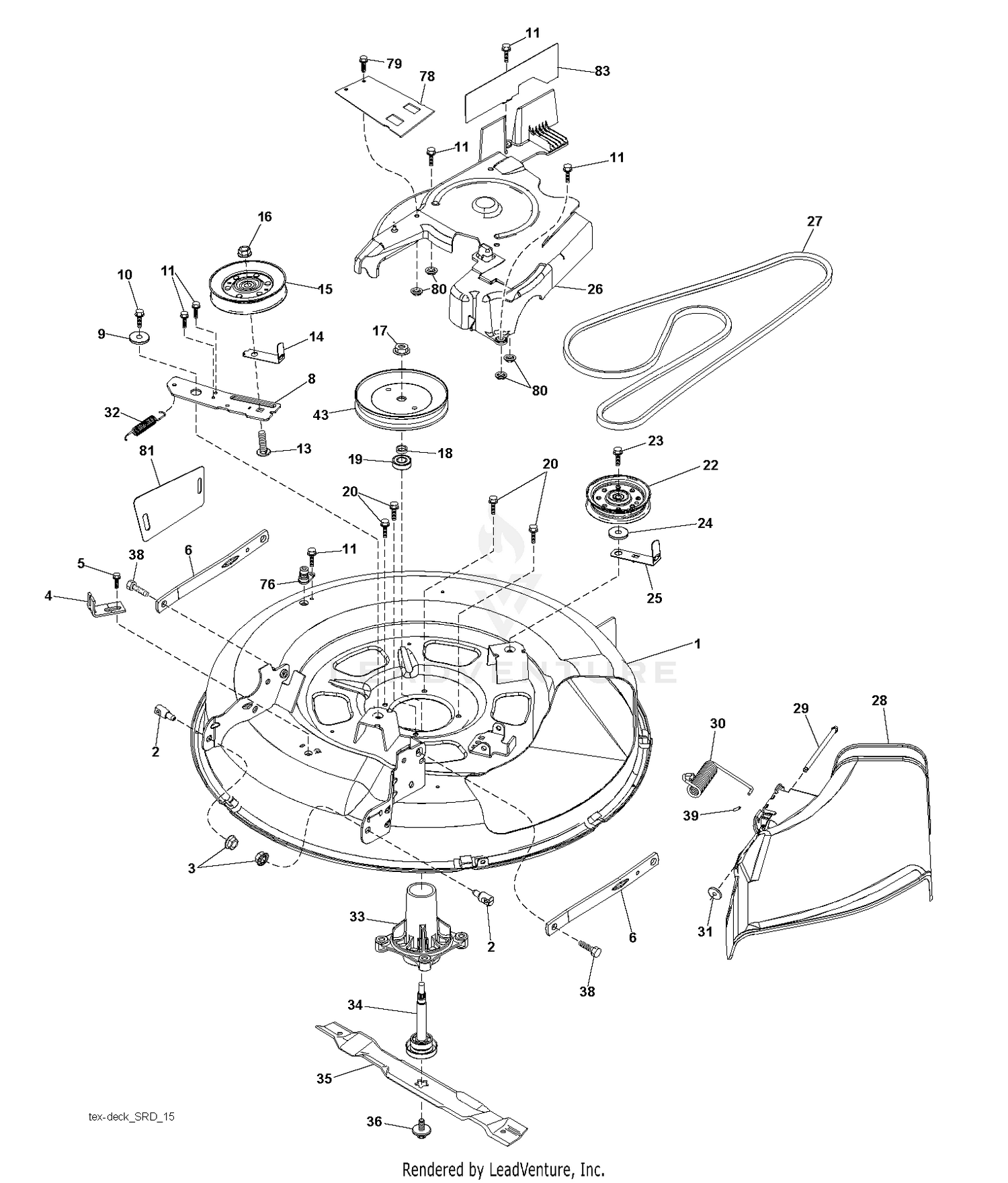

| Ref | Part Number | Description |
|---|
| 1 |
32128-39 |
NUT-HHF Price: $0.70 |
| 1 |
583749801 |
DECK.SVC.WLDT.30"SRDPNT This part replaces 532419272. Price: $279.99 |
| 2 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 3 |
104-1051-03 |
PLATE-SPINDLE Price: $59.54 |
| 3 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 4 |
127-6389 |
DECK CHAMBER SERVICE ASM Price: $1,496.66 |
| 4 |
532417645 |
BRACKET.CLUTCH.CABLE Price: $4.99 |
| 5 |
237-161 |
O-RING Price: $6.06 |
| 5 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 6 |
121-3666 |
SPINDLE ASM This part replaces 115-3435. Price: $391.32 |
| 6 |
532418863 |
ARMS.SUSP.MOWER.REAR.SRD Price: $17.99 |
| 8 |
107-0235-03 |
BLADE-ATOMIC Price: $40.07 |
| 8 |
108-9026 |
BLADE-27", COMBO This part replaces 108-9026-03. Price: $33.66 |
| 8 |
583379801 |
ARM.IDLER.30"SRD This part replaces 532420252. Price: $7.99 |
| 9 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 9 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 10 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 10 |
92-5816 |
BOLT-BLADE Price: $4.93 |
| 11 |
108-9025-0P |
BAFFLE-MULCHING This part replaces 108-9025-01. Price: $80.48 |
| 11 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 13 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 14 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 15 |
593787801 |
PULLEYS This part replaces 532146763. Price: $27.99 |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 17 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 18 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 19 |
532110485 |
BEARING Price: $11.99 |
| 20 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 22 |
596481402 |
PULLEYS This part replaces 532193198. Price: $22.99 |
| 23 |
599972501 |
BOLT This part replaces 817490628. Price: $2.99 |
| 24 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 25 |
529311701 |
KEEPER, BELT, BLACK This part replaces 532420253. Price: $4.99 |
| 26 |
583481101 |
COVER.ASM.MANDREL.30" This part replaces 532420255. Price: $49.99 |
| 27 |
532419271 |
V-BELT.DRIVE.MOWER.30" Price: $49.99 |
| 28 |
532417344 |
SHIELD.DEFLECT.MWR.30S.BLACK Price: $37.99 |
| 29 |
593885101 |
Rods This part replaces 532420895. Price: $5.99 |
| 30 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 31 |
532110452 |
NUT PUSH M Price: $2.99 |
| 32 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
| 33 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 34 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 35 |
532419273 |
BLADE, MULCH.LRV30 Price: $29.99 |
| 36 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 38 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 39 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 76 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 78 |
583394901 |
GUARD.DECK.SRD.ARM.CLUTCH This part replaces 532422566. Price: $9.99 |
| 79 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
532423062 |
PALNUT 1/4 Price: $2.99 |
| 81 |
583419401 |
SHIELD.ASM.SUSP.FRENCH.30S/30R This part replaces 532425367. Price: $5.99 |
| 83 |
583756201 |
GUARD.LH.30.SD.FRENCH This part replaces 532430315. Price: $32.99 |
