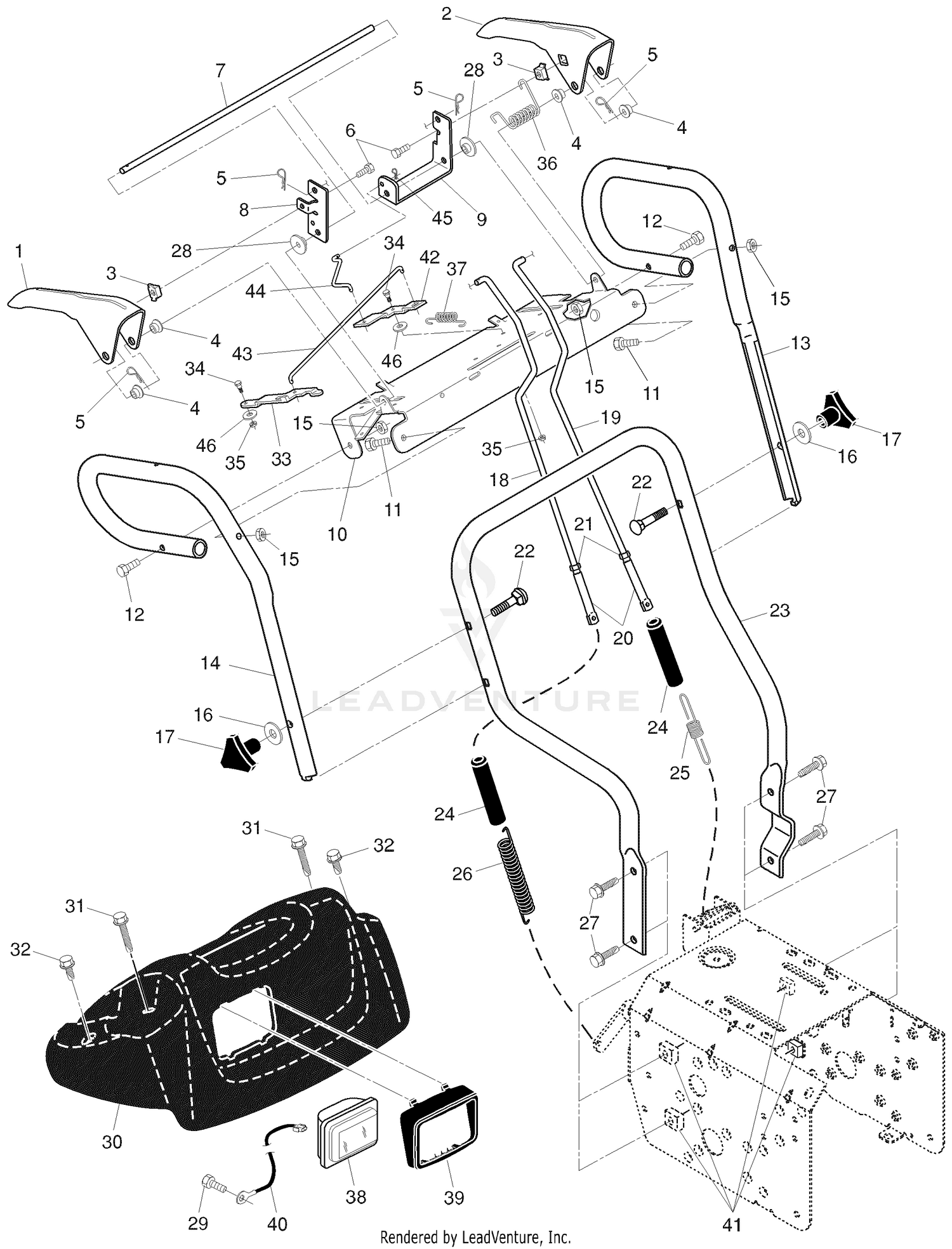

| Ref | Part Number | Description |
|---|
| 1 |
532411423 |
KIT.LEVER.CONTROL.RH.AUGER This part replaces 532184110. Price: $22.99 |
| 1 |
99-8346 |
GASKET Price: $1.43 |
| 2 |
532184109 |
LEVER, TRACTION DRIVE CONTROL Price: $9.99 |
| 2 |
98-9417 |
BOLT-JOINT, EYE Price: $12.10 |
| 3 |
115-4126 |
BOLT-JOINT, EYE This part replaces 98-9418. Price: $12.34 |
| 3 |
532199639 |
NUT.CAGE 1/4-20 Price: $2.99 |
| 4 |
532178888 |
BUSHING, FLANGE Price: $3.99 |
| 4 |
98-9419 |
OIL PIPE ASM Price: $64.29 |
| 5 |
108-4422 |
GASKET This part replaces 98-9435. Price: $1.48 |
| 5 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 6 |
138-1238 |
KIT-PIPE, OIL This part replaces 98-9461. Price: $212.76 |
| 6 |
532199640 |
SCREW HEX Price: $3.99 |
| 7 |
532178652 |
ROD.INTERLOCK Price: $9.99 |
| 7 |
98-7568 |
BOLT Price: $0.84 |
| 8 |
532429098 |
ARM.IMPELLER.ROD.SNOW This part replaces 532199576. Price: $3.99 |
| 8 |
98-9591 |
PIN-BAND Price: $6.96 |
| 9 |
532196334 |
ARM.TRACTION.ROD.YZ. This part replaces 532199575. Price: $3.99 |
| 9 |
98-9601 |
CLAMP-PIPE Price: $6.61 |
| 10 |
532196619 |
PANEL.CONTROL This part replaces 532199531. Price: $19.99 |
| 10 |
98-9714 |
CLAMP-HOSE Price: $2.66 |
| 11 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 11 |
98-9721 |
PIPE-OIL Price: $14.77 |
| 12 |
874780528 |
SCREW Price: $4.99 |
| 12 |
98-9723 |
HOLDER ASM Price: $154.38 |
| 13 |
532436114 |
TUBE.HANDLE.LOOP.LH.BLACK This part replaces 532184107. Price: $54.99 |
| 13 |
98-9724 |
PIPE-COOLER, OIL Price: $31.43 |
| 14 |
532407857 |
TUBE.HANDLE.LOOP.RH.BLACK This part replaces 532184108. Price: $39.99 |
| 14 |
98-9578 |
PIPE-RETURN, WATER Price: $11.28 |
| 15 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 15 |
98-9579 |
BAND-PIPE Price: $5.22 |
| 16 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
98-9727 |
COLLAR Price: $9.86 |
| 17 |
104-5157 |
OIL COOLER SERVICE KIT This part replaces 98-9728. Price: $1,236.62 |
| 17 |
532178899 |
KNOB.HANDLE.3/8.TRI-POINT.BLAC Price: $4.99 |
| 18 |
532180480 |
ROD.ASM.IMPELLER Price: $24.99 |
| 18 |
98-9729 |
O-RING Price: $6.27 |
| 19 |
532193081 |
ROD.CABLE.TRACTION.LONG Price: $11.99 |
| 19 |
99-8383 |
OIL PIPE ASM Price: $63.74 |
| 20 |
532180428 |
ROD, END CONTROL Price: $8.99 |
| 21 |
596436301 |
Nuts This part replaces 873350500. Price: $2.99 |
| 22 |
872120618 |
BOLT 3/8-16 X 2-1/4 Price: $5.99 |
| 23 |
532184087 |
TUBE.LOWER.HANDLE.24.BLACK Price: $59.99 |
| 24 |
532180447 |
SLEEVE, SPRING Price: $5.99 |
| 25 |
532180926 |
SPRING, TRACTION DRIVE Price: $5.99 |
| 26 |
532178669 |
SPRING, AUGER CONTROL Price: $7.99 |
| 27 |
871210616 |
Screw, Hex Head 3/8-16 x 1 Price: $4.99 |
| 28 |
587343701 |
BUSHING.BRAKE.ARM This part replaces 532175331. Price: $5.99 |
| 29 |
532193072 |
SCREW.BLOWER.HOUSING.B&S Price: $7.99 |
| 30 |
532182906 |
PANEL.CONSOLE.SNOW Price: $39.99 |
| 31 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 32 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
| 33 |
532196335 |
LATCH.INTERLOCK.YELLOW This part replaces 532199577. Price: $11.99 |
| 34 |
532183518 |
BOLT, SHOULDER Price: $2.99 |
| 35 |
873850400 |
This part replaces 532068038. Price: $2.51 |
| 36 |
532443215 |
SPRING.TORSION.LEVER This part replaces 532178831. Price: $3.99 |
| 37 |
532193885 |
SPRING LATCH Price: $3.99 |
| 39 |
532178668 |
BEZEL.HEADLIGHT.BLACK Price: $5.99 |
| 41 |
532178820 |
NUT, CAGE 3/8-16 This part replaces 532178890. Price: $5.99 |
| 42 |
532196336 |
LEVER.INTERLOCK This part replaces 532199578. Price: $2.99 |
| 43 |
532199638 |
ROD.LATCH.INTERLOCK Price: $7.99 |
| 44 |
532196338 |
ROD.ASM INTERLOCK Price: $5.99 |
| 45 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 532401620 |
BULB.HEADLIGHT.HALOGEN. |
Price: $59.99 532401620 |
