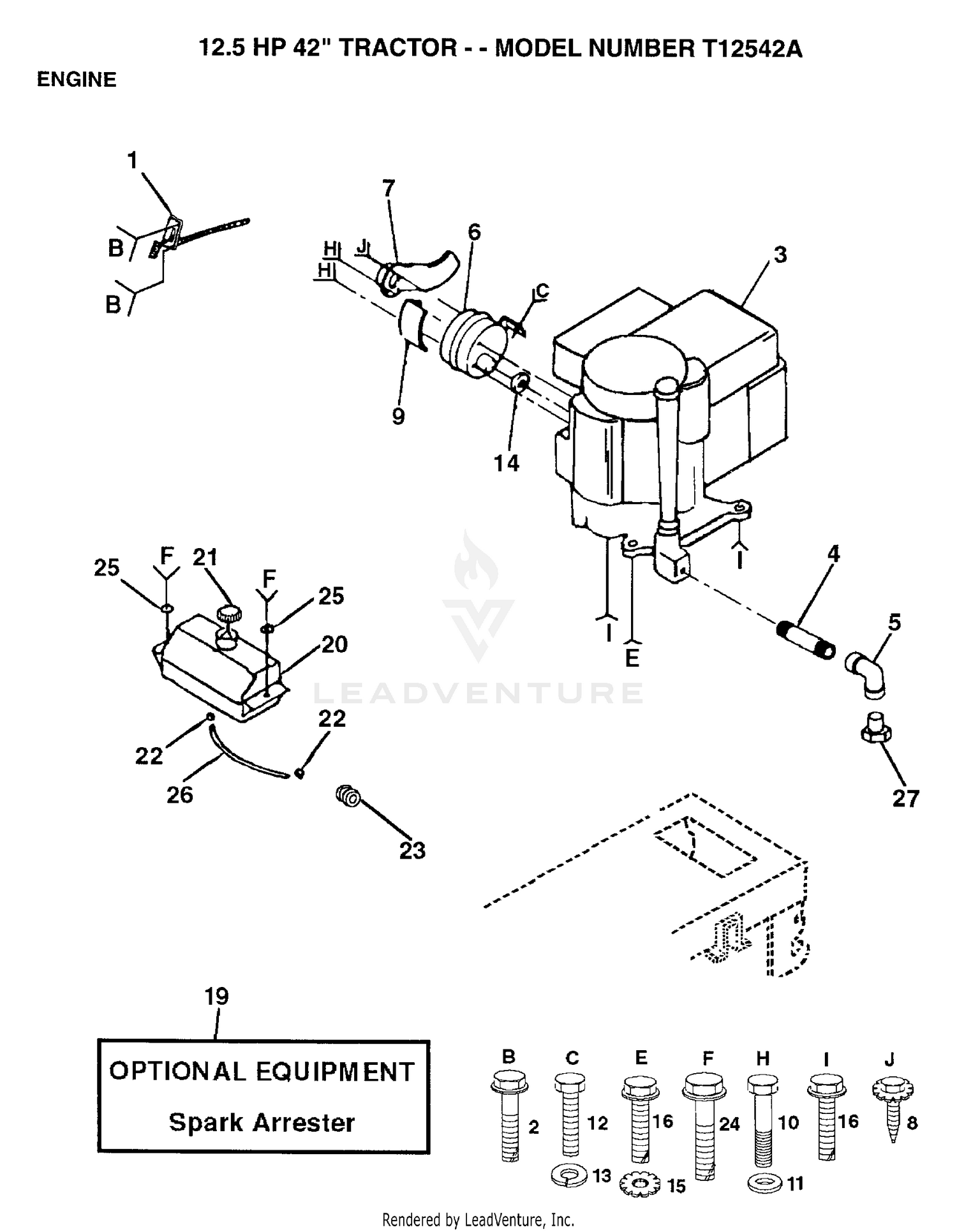

| Ref | Part Number | Description |
|---|
| 1 |
104-4034 |
MUFFLER Price: $388.37 |
| 1 |
132722 |
ASM HUB&PLATE RH Price: Call Us |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 2 |
99-9179 |
GASKET-EXHAUST Price: $51.29 |
| 3 |
104-4035 |
HEADER-MUFFLER Price: $189.17 |
| 4 |
104-4036 |
TAILPIPE Price: $278.08 |
| 4 |
13280324 |
PIPE NIPPLE Price: Call Us |
| 5 |
13200300 |
ELBOW Price: Call Us |
| 5 |
95-5622 |
HANGER-RUBBER Price: $34.18 |
| 6 |
101273M |
MUFFLER LTV Price: Call Us |
| 6 |
104-4038 |
ISOLATOR-RUBBER Price: $36.06 |
| 7 |
104-4090 |
CLAMP-MUFFLER Price: $6.00 |
| 7 |
108767X |
DEFLECTOR MUFFLER Price: Call Us |
| 8 |
104-6478 |
SPRING-EXTENSION Price: $13.02 |
| 8 |
17030808 |
SUB= 17030814 Price: Call Us |
| 9 |
101159L |
SHIELD HEAT LTV Price: Call Us |
| 9 |
104-3884-03 |
BRACKET-CLEANER, AIR Price: $44.63 |
| 10 |
95-5806 |
BRACKET-MOUNTING Price: $28.01 |
| 11 |
19111012 |
WASHER T Price: Call Us |
| 11 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 12 |
32128-44 |
NUT Price: $2.69 |
| 13 |
10040400 |
LOCKWASHER Price: Call Us |
| 13 |
93-2190 |
AIR CLEANER ASM Price: $217.17 |
| 14 |
104-3908 |
HOSE-INTAKE, AIR Price: $75.71 |
| 14 |
125593X |
SUB= 272293 Price: Call Us |
| 15 |
11050600 |
LOCKWASHER Price: Call Us |
| 15 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 16 |
17490620 |
SCREW Price: Call Us |
| 16 |
321-9 |
SCREW-HH This part replaces 322-23. Price: $0.27 |
| 17 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 18 |
33004-00 |
NUT-HF Price: $0.34 |
| 19 |
137180 |
SUB= 532137180 Price: Call Us |
| 19 |
83-8210-03 |
PANEL-FRONT, LEFT Price: $85.69 |
| 20 |
109202X |
TANK.FUEL.LT. Price: Call Us |
| 20 |
93-6932 |
COOLER-OIL Price: $466.61 |
| 21 |
123549X |
SUB= 158990 Price: Call Us |
| 21 |
83-7970 |
CONNECTOR Price: $58.21 |
| 22 |
123487X |
HOSE CLAMP Price: Call Us |
| 22 |
88-6730-03 |
BRACKET-SCREEN, FRONT Price: $35.76 |
| 23 |
124028X |
SUB= 532124028 Price: Call Us |
| 23 |
340-127 |
NUT-BULKHEAD Price: $2.24 |
| 24 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 24 |
93-6803 |
FITTING-90 DEG Price: $35.80 |
| 25 |
19091416 |
WASHER Price: Call Us |
| 25 |
73-4740 |
HANDLE KNOB This part replaces 93-7159. Price: $8.09 |
| 26 |
104-4004 |
HOSE Price: $34.13 |
| 27 |
93-6805 |
HOSE Price: $23.30 |
| 28 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 29 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 30 |
93-6933 |
SLEEVE-PROTECTIVE Price: $36.66 |
| 32 |
93-5023 |
SPACER Price: $8.77 |
| 33 |
322-7 |
SCREW-HH Price: $0.89 |
| 34 |
3256-3 |
WASHER-FLAT Price: $0.49 |
