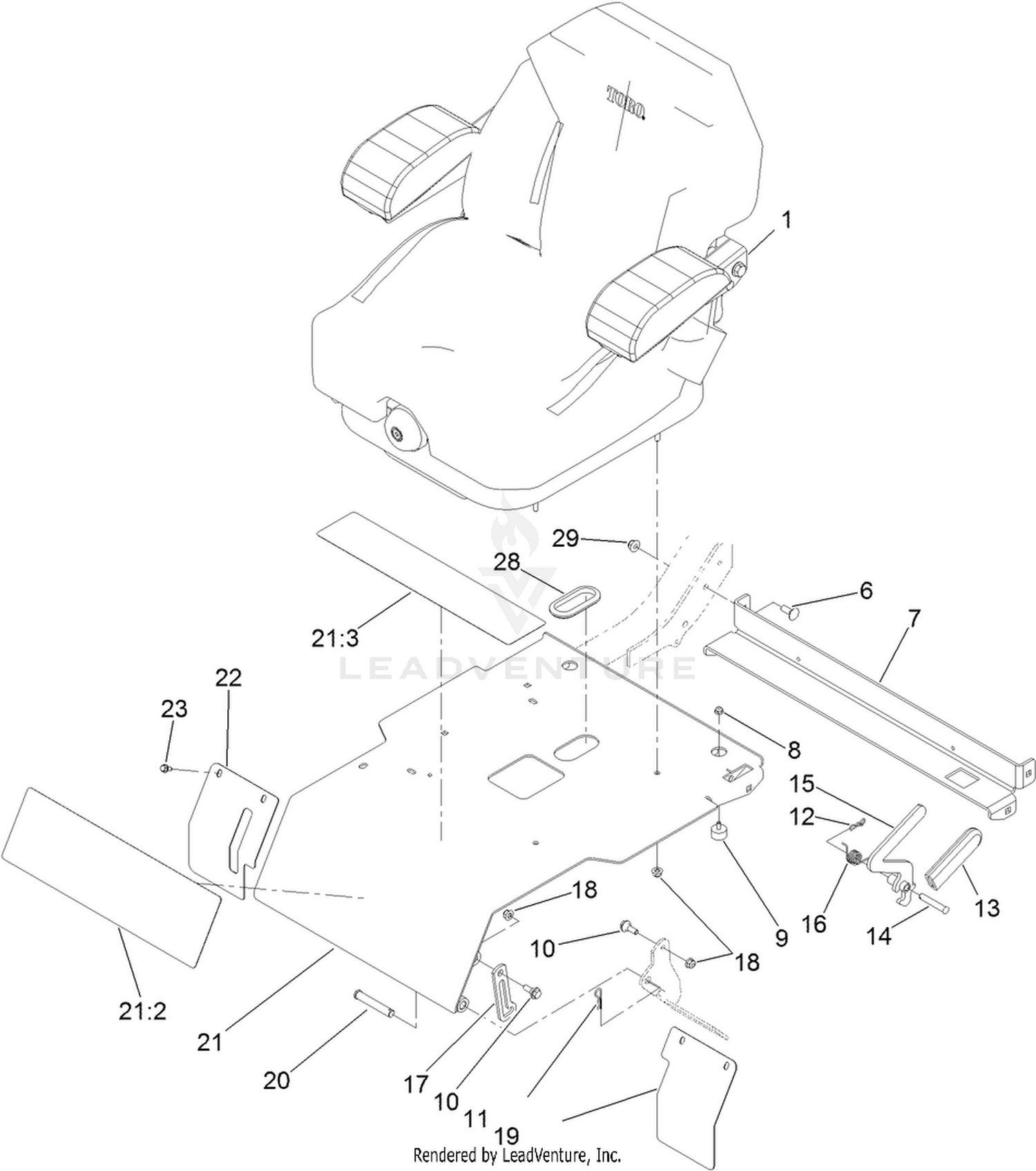

Seat and Seat Plate Assembly
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 121-7595 | KIT - SUSPENSION SEAT This part replaces 125-3107. Price: $558.15 |
| 6 | 3231-2 | BOLT-CARR Price: $0.81 |
| 7 | 120-0095-03 | SUPPORT-SEAT Price: $76.25 |
| 8 | 104-7201 | NUT-HF Price: $0.69 |
| 9 | 240-14 | BUMPER-RUBBER Price: $13.84 |
| 10 | 116-2670 | SCREW-SHOULDER Price: $4.79 |
| 11 | 3290-467 | PIN-HAIR Price: $0.27 |
| 12 | 119-1415 | PIN-COTTER, LOCKING Price: $0.22 |
| 13 | 1-633268 | GRIP-LEVER Price: $13.99 |
| 14 | 138-8239 | PIN-CLEVIS Price: $4.34 |
| 15 | 140-7053 | LEVER-SEAT Price: $25.57 |
| 16 | 121-3386 | SPRING-TORSION Price: $10.33 |
| 17 | 130-8754 | PROP-SEAT Price: $6.15 |
| 18 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 19 | 130-8767-03 | COVER-LH Price: $23.93 |
| 20 | 283-55 | PIN-CLEVIS Price: $11.14 |
| 21 | 130-8749 | SEAT PLATE ASM Price: $378.32 |
| 22 | 130-8768-03 | COVER-RH Price: $23.93 |
| 23 | 32144-10 | SCREW-HWH Price: $4.29 |
| 28 | 237-164 | GROMMET Price: $16.34 |
