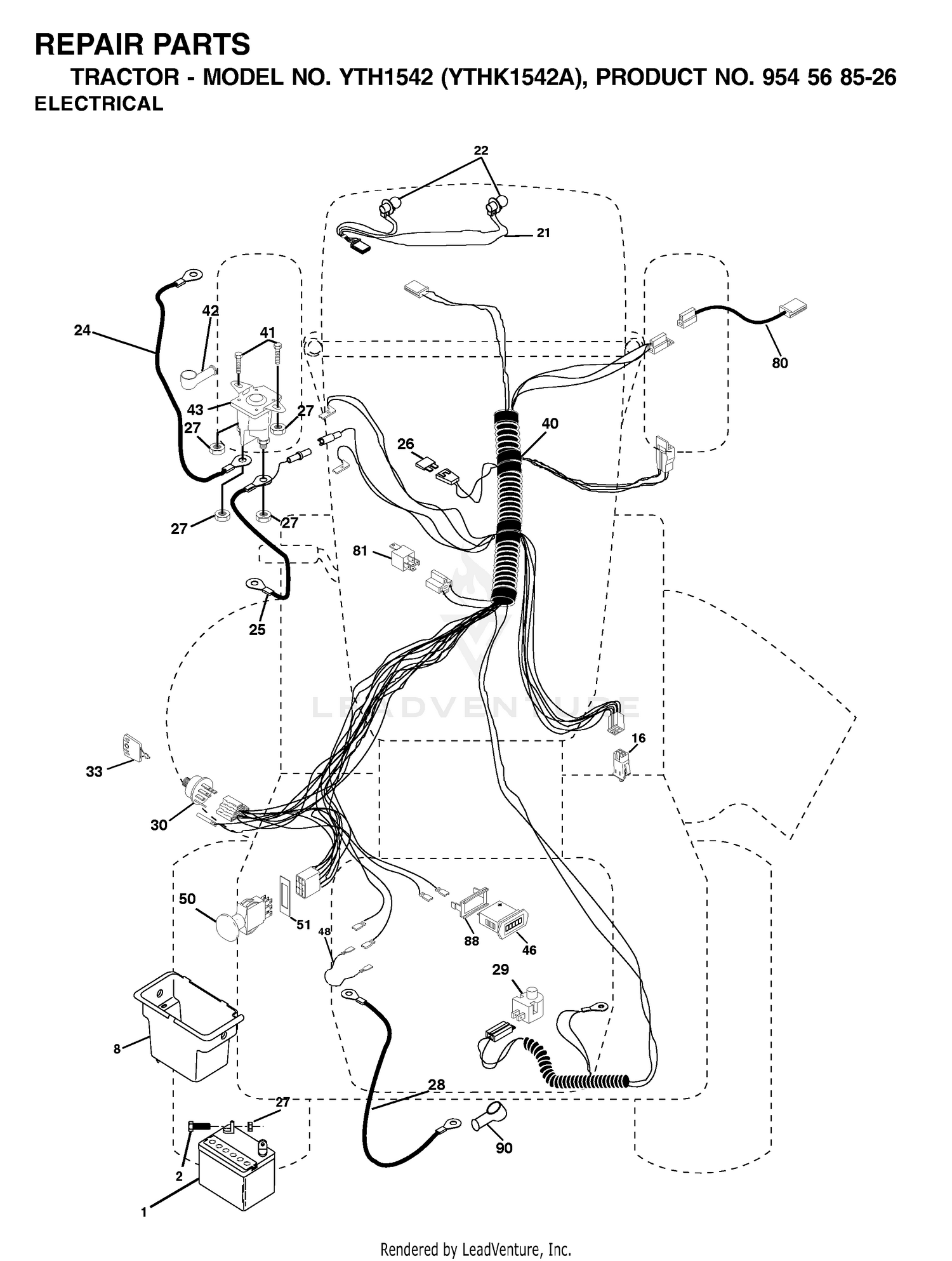

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 10 |
107-9089 |
WATER PUMP ASM Price: $382.99 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 20 |
99-3516 |
FLANGE-PUMP, WATER Price: $103.23 |
| 21 |
532175685 |
HARNESS.ASM.LIGHT WSL Price: $15.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
532146147 |
CABLE BATTERY Price: $22.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532004207 |
CABLE T This part replaces 532124773. Price: $4.99 |
| 29 |
532160784 |
PLUNGER SWITCH (COLOR:OLIVE) Price: $17.99 |
| 30 |
532175566 |
IGNITION SWITCH Price: $22.99 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 40 |
105-3750 |
MECHANICAL SEAL ASM Price: $84.06 |
| 40 |
532179724 |
HARNESS IGN. Price: $129.99 |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532178861. Price: $19.99 |
| 46 |
532169642 |
KIT.HOURMETER.SNAP-IN This part replaces 532169635. Price: $109.99 |
| 48 |
532140844 |
ADAPTER.AMMETER Price: $4.99 |
| 50 |
112-7017 |
IMPELLER-PUMP, WATER Price: $67.67 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 51 |
532140405 |
FRAME RETAINING RING Price: $3.99 |
| 60 |
100-1932 |
PIPE-RETURN, WATER Price: $8.45 |
| 70 |
99-3454 |
GASKET-PUMP, WATER Price: $12.90 |
| 80 |
532146685 |
HARNESS, CLUTCH Price: $11.99 |
| 80 |
98-9353 |
BOLT Price: $0.76 |
| 81 |
532109748 |
RELAY.ASSY.T Price: $19.99 |
| 89 |
532169639 |
BRACKET SNAP-IN HOURMETER Price: $4.99 |
| 90 |
107-9090 |
BOLT Price: $2.58 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532180449. Price: $4.99 |
| 100 |
98-9716 |
PIPE-WATER Price: $60.87 |
| 110 |
107-9091 |
PIPE-WATER Price: $32.93 |
