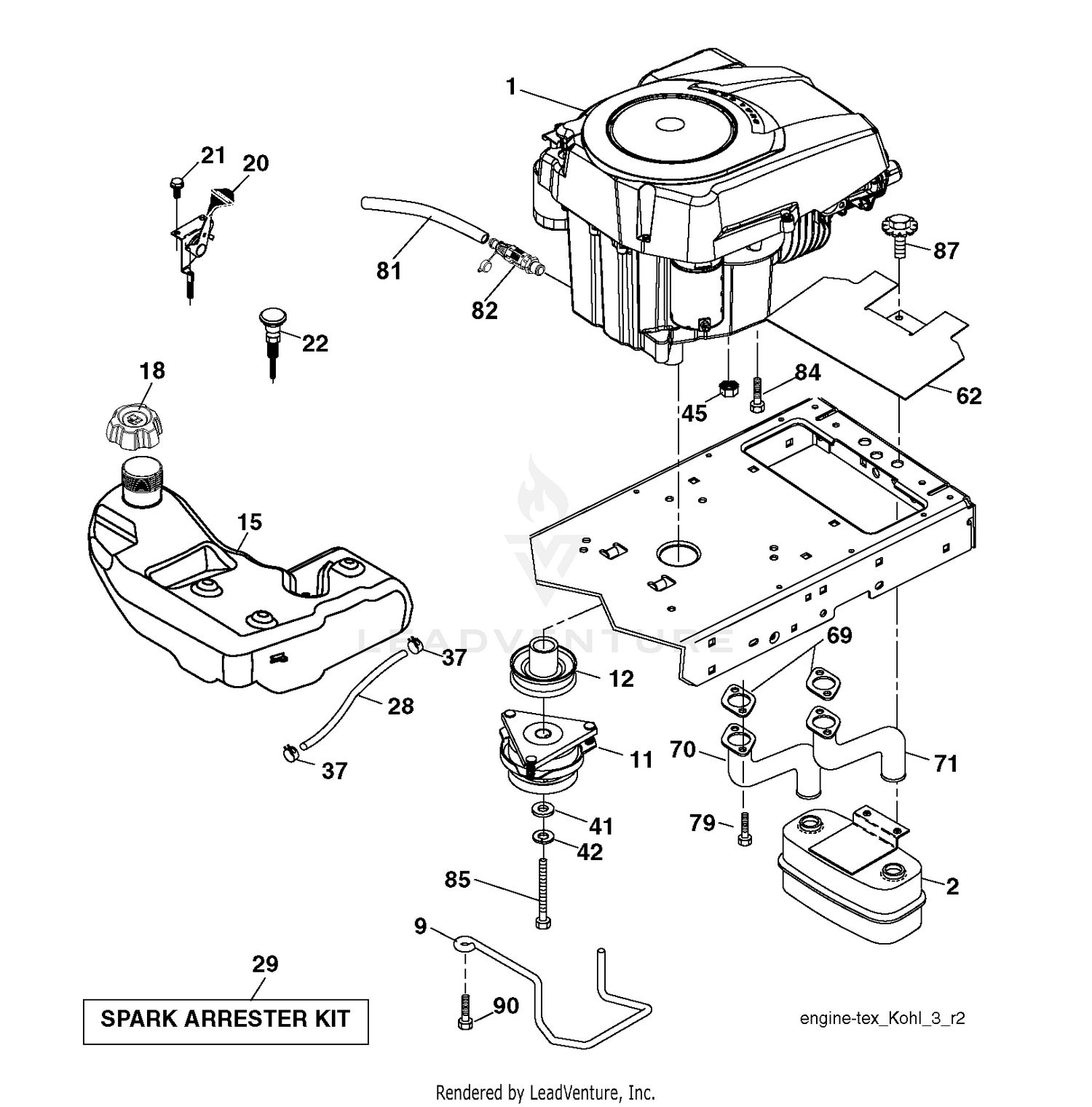

| Ref | Part Number | Description |
|---|
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
112-0185 |
TAPPET Price: $25.58 |
| 11 |
583389701 |
KIT.SVC.CLUTCH.ELE.180505 This part replaces 532180505. Price: $299.99 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 15 |
532193499 |
TANK.FUEL.4GAL Price: $69.99 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532439645. Price: $14.99 |
| 20 |
127-0421 |
ROD-PUSH This part replaces 98-9509. Price: $5.90 |
| 20 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 28 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
108-1403 |
CAMSHAFT This part replaces 112-7029. Price: $527.31 |
| 35 |
108-1403 |
CAMSHAFT Price: $527.31 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 40 |
98-7449 |
SCREW-SET Price: $1.83 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 50 |
98-9512 |
GEAR-CAM Price: $246.18 |
| 60 |
98-9378 |
KEY-FEATHER Price: $1.23 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 70 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 This part replaces 532146699. Price: $19.99 |
| 70 |
98-9510 |
STOPPER-CAMSHAFT Price: $12.25 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 80 |
98-7692 |
BOLT Price: $0.92 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 90 |
98-9649 |
IDLE GEAR ASM Price: $88.78 |
| 100 |
98-9650 |
BUSHING-GEAR, IDLE Price: $9.36 |
| 110 |
98-9535 |
COLLAR-GEAR, IDLE Price: $2.37 |
| 120 |
98-9536 |
COLLAR-GEAR, IDLE Price: $3.41 |
| 130 |
98-9534 |
CIRCLIP-GEAR, IDLE Price: $1.69 |
| 140 |
98-9533 |
SHAFT-GEAR, IDLE Price: $101.45 |
