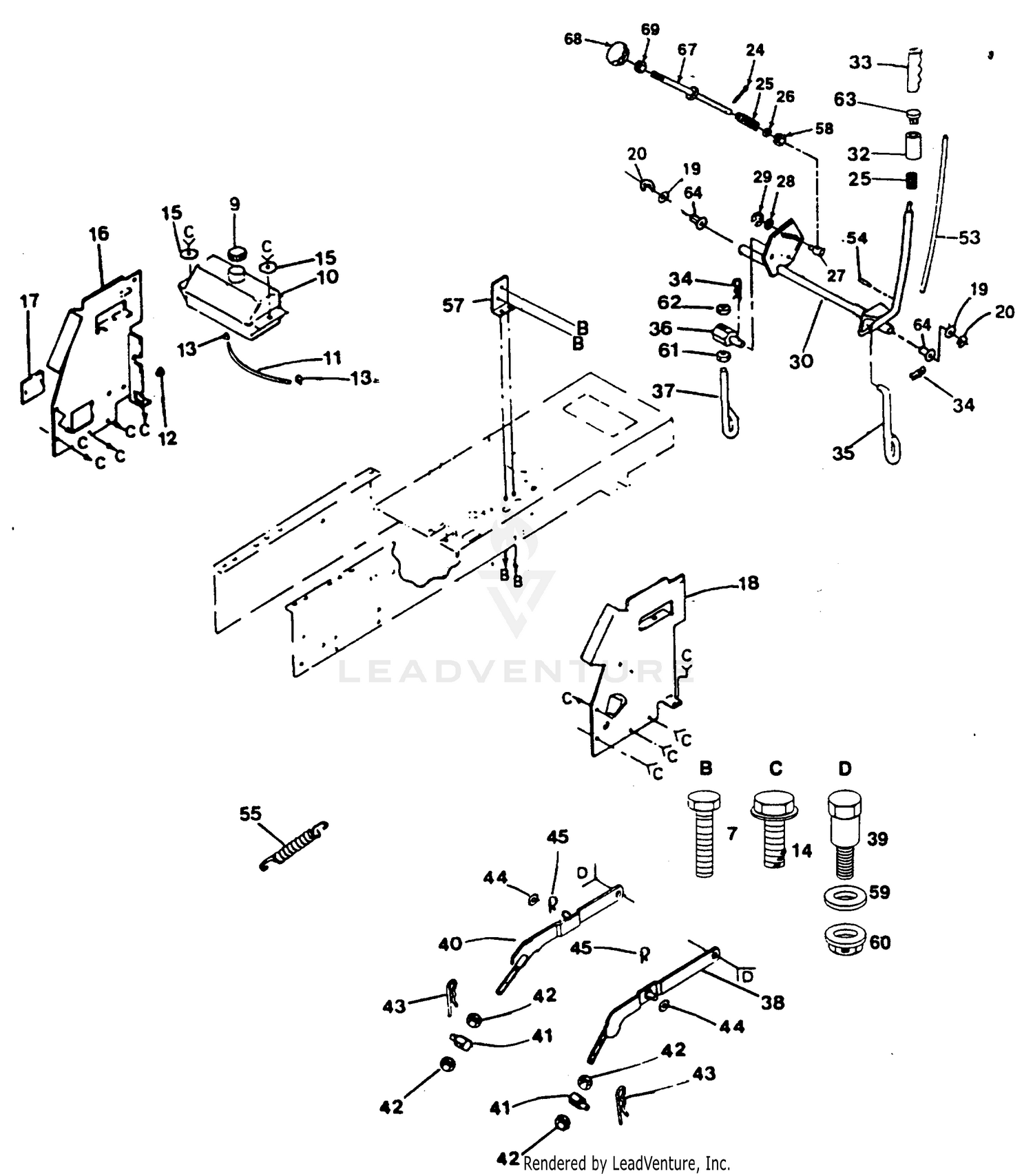

| Ref | Part Number | Description |
|---|
| 1 |
94-4099 |
SEAL KIT Price: $101.80 |
| 3 |
94-4095 |
CENTERING SPRING KIT Price: $120.10 |
| 5 |
94-4098 |
RING-RETAINING Price: $6.40 |
| 6 |
94-4094 |
PIN Price: $19.31 |
| 7 |
817021008 |
Screw, Hex., Tapping, #10-24 x 1/2 Price: $1.99 |
| 8 |
94-4096 |
BEARING KIT Price: $83.15 |
| 9 |
581075501 |
CAP.FUEL.TANK.SS/SNO.EPA.DOME This part replaces 532123549. Price: $14.99 |
| 9 |
94-4088 |
SCREW-CAP Price: $9.64 |
| 10 |
532184900 |
TANK FUEL FRONT This part replaces 532109202. Price: $27.99 |
| 10 |
94-4089 |
CAP-END Price: $93.84 |
| 11 |
532008548 |
Line, Fuel This part replaces 532101335. Price: $2.99 |
| 11 |
94-4090 |
GEROTOR Price: $393.36 |
| 12 |
532124934 |
Grommet Price: $5.46 |
| 12 |
94-4091 |
SPACER Price: $19.12 |
| 13 |
532123487 |
Clamp, Hose Price: $3.99 |
| 13 |
94-4093 |
DISCONTINUED Price: Call Us |
| 14 |
874760412 |
Bolt Hex Hd 1/4-20 unc x 3/4 This part replaces 817490412. Price: $3.99 |
| 14 |
94-4092 |
PLATE-WEAR Price: $108.71 |
| 15 |
819091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: $3.99 |
| 15 |
99-5511 |
PLUG ASM Price: $77.95 |
| 16 |
532122795 |
Panel, Dash, L. H. Price: $3.33 |
| 17 |
532121794 |
Cover, Access Price: $3.99 |
| 18 |
532126276 |
Panel, Dash, R. H. Price: $3.33 |
| 19 |
819212016 |
Washer 21/32 x 1-1/4 x 16 Ga. This part replaces 819211416. Price: $3.99 |
| 20 |
812000022 |
E-Ring Price: $3.99 |
| 24 |
532003145 |
COTTER PIN This part replaces 876020308. Price: $1.40 |
| 25 |
532122512 |
Spring Price: $4.99 |
| 26 |
819131016 |
Washer 13/32 x 5/8 x 16 Ga. Price: $3.99 |
| 27 |
532110810 |
Trunnion, Depth Stop Price: $13.99 |
| 28 |
819151216 |
Washer 15/32 x 3/4 x 16 Ga. Price: Call Us |
| 29 |
812000037 |
Ring, Klip #T5304-37 Price: $3.99 |
| 30 |
532122507 |
Shaft, Lift Price: $3.33 |
| 32 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 33 |
532125631 |
GRIP, HANDLE This part replaces 532109413. Price: $3.99 |
| 34 |
532085902 |
RETAINER SPRING This part replaces 532124670. Price: $1.99 |
| 35 |
532110029 |
Link, Lift Price: $3.45 |
| 36 |
532132793 |
LIFT TRUNION This part replaces 532110447. Price: $4.99 |
| 37 |
532110448 |
Link, Lift, Adjustable Price: $7.99 |
| 38 |
532121598 |
Arm, Suspension, R. H. Price: $13.99 |
| 39 |
532105848 |
Bolt, Shoulder 3/8-16 Price: $2.02 |
| 40 |
532121599 |
Arm, Suspension, L. H. Price: $21.14 |
| 41 |
532175689 |
Trunnion Blk Zinc This part replaces 532106308. Price: $2.99 |
| 42 |
873350800 |
Nut Jam Hex 1/2-13 Unc This part replaces 873220800. Price: $1.99 |
| 43 |
532009135 |
Retainer, Spring Price: $2.99 |
| 44 |
532052160 |
Washer This part replaces 819171516. Price: $3.99 |
| 45 |
532004921 |
Retainer, Spring Price: $3.99 |
| 53 |
532121006 |
Lever, Rod Price: $19.99 |
| 54 |
532105767 |
Pin, Groove Price: $2.99 |
| 55 |
532124446 |
Spring, Extension Price: $3.33 |
| 57 |
532108236 |
Bracket, Switch Price: $2.99 |
| 58 |
532110807 |
Nut, Special Price: $3.99 |
| 59 |
532110739 |
Washer, Spring Price: $2.99 |
| 60 |
873680600 |
Nut This part replaces 873980600. Price: $1.99 |
| 61 |
873610700 |
Nut, Hex 7/16-20 This part replaces 873360700. Price: $3.99 |
| 62 |
873610700 |
Nut, Hex 7/16-20 This part replaces 873710700. Price: $3.99 |
| 63 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 64 |
532120183 |
Washer, Nylon Price: $2.99 |
| 67 |
532105768 |
Lever, Assembly Price: $3.33 |
| 68 |
532100734 |
Knob Price: $3.33 |
