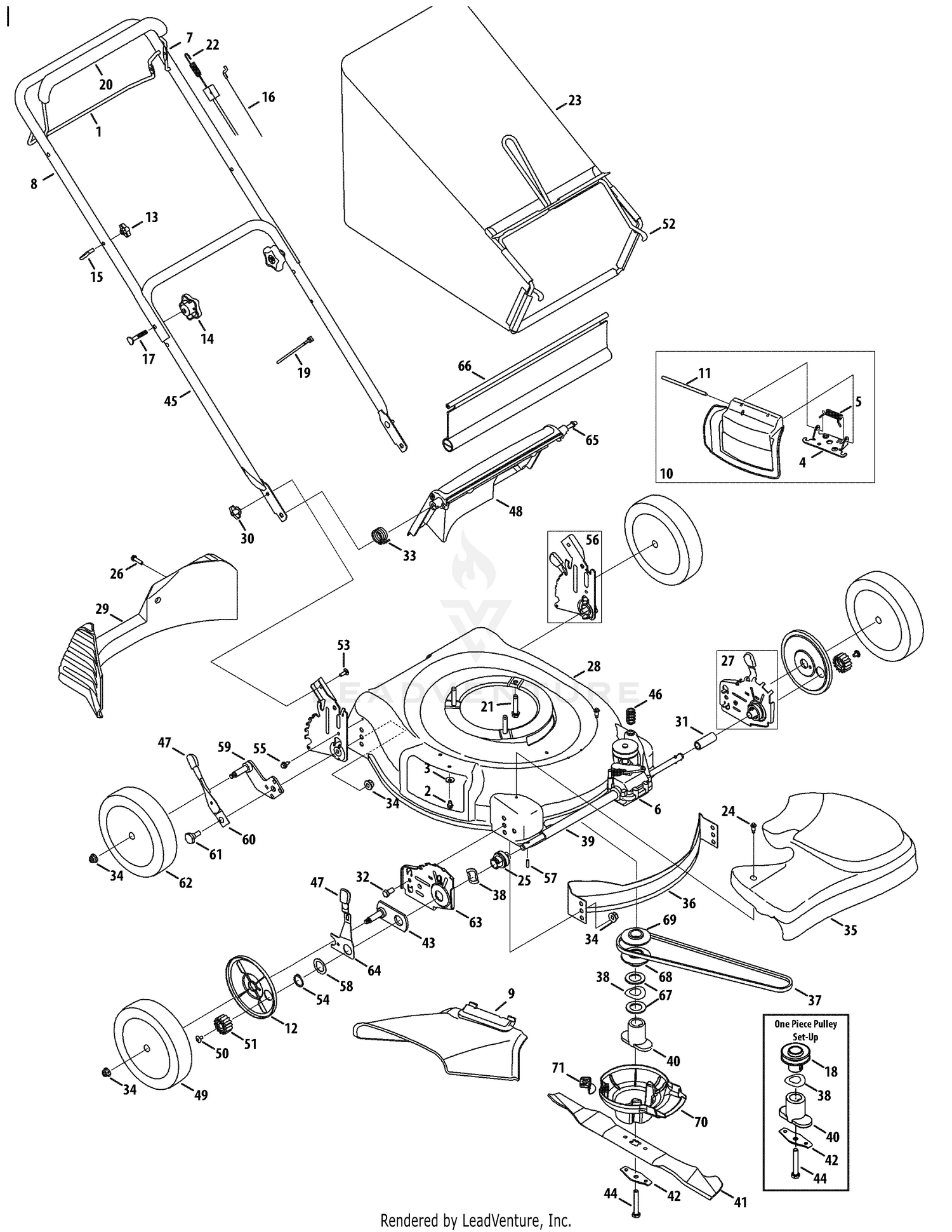

| Ref | Part Number | Description |
|---|
| 1 |
747-1214 |
Drive Control Price: $20.18 |
| 2 |
710-0599 |
TT Screw 1/4-20 x 0.5 Price: $3.86 |
| 3 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 4 |
17032A |
PLATE-ADAPTER Not Available Price: |
| 5 |
732-1014C |
TORSION SPRING This part replaces 732-1014. Price: $7.40 |
| 6 |
753-05465 |
Transmission Assembly This part replaces 918-04376A. Price: $215.70 |
| 7 |
747-1161A-0637 |
Blade Control Price: $11.81 |
| 8 |
749-1092A-0637 |
Upper Handle Price: $42.79 |
| 9 |
731-04177 |
Chute Deflector Price: $16.88 |
| 10 |
987-02055 |
Mulch Plug Complete Price: $24.18 |
| 11 |
747-0710A |
HINGE PIN This part replaces 747-0710. Price: $3.86 |
| 12 |
782-7551A |
Wheel Dust Cap Price: $4.80 |
| 13 |
720-0279 |
Handle Knob Price: $3.93 |
| 14 |
720-04072A |
STAR KNOB 5/16-18 This part replaces 720-04072. Price: $6.07 |
| 15 |
710-1205 |
Eye Bolt Price: $3.53 |
| 16 |
946-1132 |
Control Cable - 40.75" This part replaces 746-1132. Price: $20.71 |
| 17 |
710-1174 |
Carriage Bolt 5/16-18 x 2.0 Price: $6.28 |
| 20 |
731-04204 |
Bail Cover Price: $10.22 |
| 21 |
710-0654A |
Self-Tapping Sems Screw Price: $3.75 |
| 23 |
964-04007A |
Grass Bag This part replaces 964-04011. Price: $114.46 |
| 24 |
710-1650 |
Shoulder Screw # 12 -24 Price: $4.22 |
| 25 |
987-02347 |
Front Bearing Assembly Price: $15.49 |
| 26 |
710-1241 |
Screw, 1/4-15 x 1.000 Price: $5.77 |
| 27 |
987-02193A |
Height Adjustment Ass’y - LH Price: $58.00 |
| 27 |
987-02194A |
Height Adjustment Ass’y - RH Price: $58.00 |
| 29 |
731-04150C |
REAR BAFFLE 21" Not Available Price: |
| 30 |
712-0397A |
WING NUT This part replaces 912-0397. Price: $3.71 |
| 31 |
750-04595 |
Slev. Spacer 1.4" Lg. Price: $4.02 |
| 32 |
710-0216 |
Hex Screw, 3/8-16 x.75 Price: $3.93 |
| 33 |
732-04090A |
Torsion Spring - RH Price: $6.66 |
| 34 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 35 |
931-05020A |
Transmission Cover Price: $61.79 |
| 36 |
782P5002B |
FRONT BAFFLE Not Available This part replaces 782-5002B. Price: |
| 37 |
954-0637A |
V-Belt Price: $13.54 |
| 38 |
736-0447 |
Wave Washer This part replaces 936-0447. Price: $3.90 |
| 39 |
750-04594 |
Sleeve Spacer 8.985" Lg. Price: $7.96 |
| 40 |
748-04082 |
Blade Adapter, 25mm Price: $34.90 |
| 41 |
942-0741A |
Blade This part replaces 942-0741. Price: $27.55 |
| 42 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524B. Price: $5.34 |
| 43 |
987-02334 |
Pivot Plate Assembly Not Available Price: |
| 44 |
710-1257 |
Hex Screw 3/8-24 x 2.50 Price: $7.02 |
| 45 |
749-0928A-0637 |
Lower Handle Price: $29.67 |
| 46 |
732-1043 |
Belt Tension Spring Price: $4.02 |
| 47 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 48 |
731-06847 |
Rear Discharge Door Price: $24.94 |
| 49 |
734-04018C |
Wheel 8 x 2.125 This part replaces 734-04018A. Price: $16.82 |
| 50 |
710-04531 |
Screw, 1/4-20 x .390 Price: $4.42 |
| 51 |
717-1761 |
Gear 14T LH FWD Price: $12.11 |
| 51 |
717-1762 |
Gear 14T RH FWD Price: $12.11 |
| 52 |
747-04080A |
Grass Bag Frame Price: $52.39 |
| 53 |
710-0703 |
Carriage Bolt 1/4-20 Price: $3.66 |
| 54 |
716-0102 |
Snap Ring Price: $4.40 |
| 55 |
710-1652 |
TT Scr. w/Washer 1/4-20 x.625 Price: $3.86 |
| 56 |
987-02270A |
HANDLE BRACKET ASSEMBLY (LH) Not Available Price: |
| 56 |
987-02271A |
HANDLE BRACKET ASSEMBLY (RH) Not Available Price: |
| 57 |
915-022 |
Dowel Pin Price: Call Us |
| 58 |
736-0474 |
Washer Price: $5.94 |
| 59 |
987-02332 |
Pivot Arm Assembly - LH Price: $15.85 |
| 59 |
987-02333 |
PIVOT ARM ASSEMBLY (RH) Not Available Price: |
| 60 |
732-04175 |
Rear Spring Lever Price: $10.96 |
| 61 |
738-04266 |
Shoulder Scr.500 Dia. x.434 Price: $5.48 |
| 62 |
753-08175 |
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) This part replaces 734-04014B. Price: $37.85 |
| 63 |
787-01298A-0637 |
ADJUSTMENT PLATE (RH) Not Available This part replaces 787-01298. Price: |
| 63 |
787-01299A-0637 |
ADJUSTMENT PLATE (LH) Not Available This part replaces 787-01299. Price: |
| 64 |
732-0706 |
Front Lever - RH Price: $14.83 |
| 64 |
732-0707 |
Front Lever - LH Price: $14.83 |
| 65 |
747-04587 |
Pivot Rod Price: $13.38 |
| 66 |
731-05642A |
Rear Trailing Shield Price: $25.03 |
| 70 |
753-06116 |
Engine Baffle This part replaces 931-06029. Price: $14.68 |
