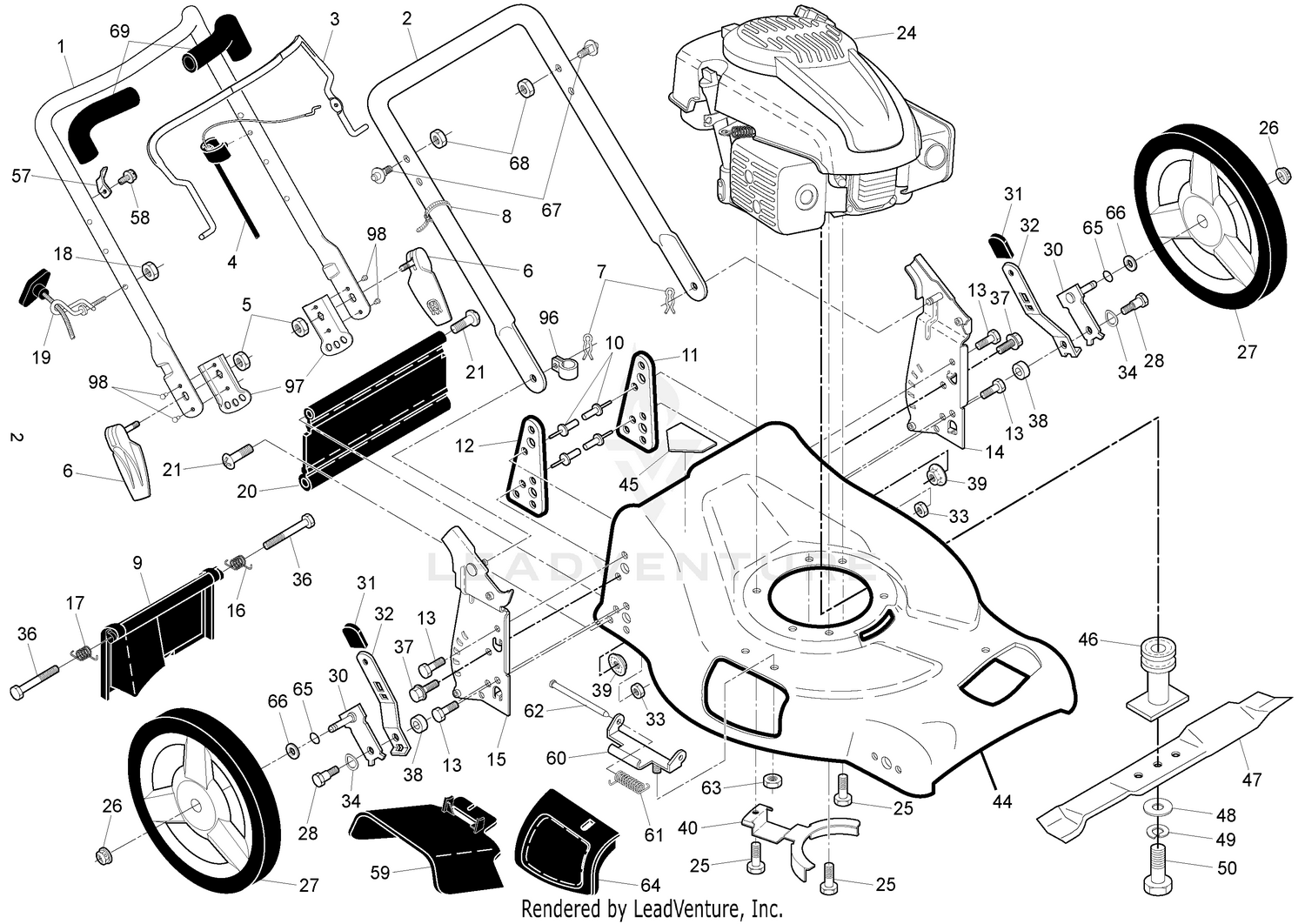

| Ref | Part Number | Description |
|---|
| 2 |
532433896 |
HANDLE.ASM.LOWER.21.NB.GREY Price: $29.99 |
| 3 |
532426812 |
BAIL.CONTROL.MZR.BS.ORANGE Price: $37.99 |
| 4 |
532435054 |
CABLE.MZR.SNAP.IN.CON Price: $12.99 |
| 5 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 6 |
532432018 |
HANDLE KNOB ASM,QUICK REL BLK Price: $7.99 |
| 7 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 8 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 9 |
532401812 |
DOOR.REAR.PLASTIC.21.FWGD This part replaces 532406985. Price: $29.99 |
| 10 |
532128415 |
RIVET BLIND Price: $3.99 |
| 11 |
532406573 |
BRACKET.SUPPORT.LH.21.FWGD This part replaces 532410540. Price: $5.99 |
| 12 |
532410542 |
BRACKET.SUPRT.RH.21.FWGD Price: $5.99 |
| 13 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 14 |
532434550 |
BRACKET.ASM.HDL.LT.21FGD.HW.OR Price: $9.99 |
| 15 |
532434549 |
BRACKET.ASM.HDL.RT.21FGD.HW.N Price: $7.99 |
| 16 |
532405417 |
SPRING.REAR.DOOR.EZ.21.LT Price: $7.99 |
| 17 |
532405418 |
SPRING.REAR.DOOR.EZ.21.RT Price: $3.99 |
| 18 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 19 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532194788. Price: $7.99 |
| 20 |
532413159 |
SKIRT.REAR.21 FWGD.BLACK Price: $14.99 |
| 21 |
532088652 |
HINGE SCREW Price: $3.99 |
| 25 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 26 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 27 |
585911001 |
WHEEL.12X1.75.CF H3SPK.RAD3.BB This part replaces 532410815. Price: $22.99 |
| 28 |
596203801 |
Hardware This part replaces 532401638. Price: $3.99 |
| 30 |
532413141 |
ARM.ASM.AXLE.REAR.5/9.POS.BZP Price: $5.99 |
| 31 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 32 |
532401626 |
SPRING.SELECTOR.EXTEN.5POS.BZP This part replaces 532409889. Price: $3.99 |
| 33 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 34 |
532401630 |
WASHER.CURVED.CYLINDRICAL Price: $3.99 |
| 36 |
532184193 |
BOLT Price: $4.99 |
| 37 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 38 |
532401629 |
SPACER.HEIGHT.ADJUSTER Price: $3.99 |
| 39 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 40 |
532425711 |
BRACKET.KEEPER.BELT Price: $5.99 |
| 45 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $3.99 |
| 46 |
532443950 |
KIT.BLADE.ADAPTOR.BELT.GUIDE. This part replaces 532421248. Price: $49.99 |
| 48 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 49 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 50 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 57 |
532430034 |
BRACKET.UPSTOP.RT Price: $5.99 |
| 58 |
532750634 |
SCREW Price: $2.99 |
| 59 |
532175071 |
DISCHARGE DEFLECTOR This part replaces 532185582. Price: $17.99 |
| 60 |
532175735 |
BRACKET.ASM.HINGE.21.FWGD. Price: $4.99 |
| 61 |
532193000 |
SPRING.TORSION Price: $5.99 |
| 62 |
532175650 |
ROD.HINGE.21 Price: $4.99 |
| 63 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 64 |
532185576 |
DOOR.MULCH.21.REAR.FWGD Price: $11.99 |
| 65 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 66 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 67 |
532199255 |
STUD.QUICK.ADJUST Price: $2.99 |
| 68 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 69 |
532182748 |
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) Price: $7.99 |
| 96 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 97 |
532413534 |
BRACKET.ADJ.3POS.GREY Price: $6.99 |
| 98 |
532199697 |
RIVET Price: $3.99 |
