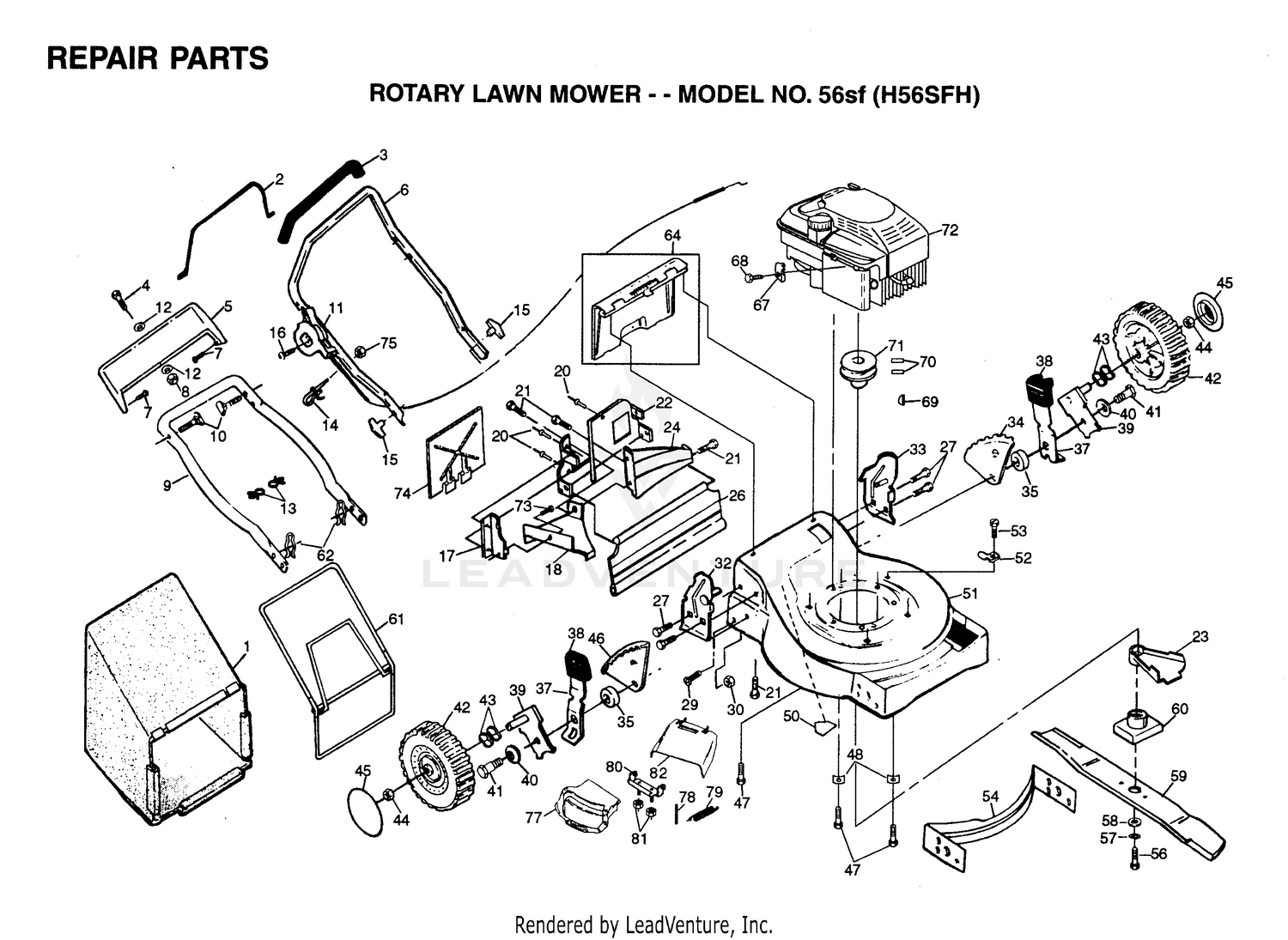

| Ref | Part Number | Description |
|---|
| 1 |
532134048 |
This part replaces 532800386. Price: $36.95 |
| 2 |
532131094 |
CONTROL BAR Price: $12.99 |
| 3 |
585161003 |
GRIP.HANDLE.FOAM.438MM This part replaces 532850724. Price: $4.99 |
| 4 |
874760424 |
Bolt, Hex 1/4-20 x 1-1/2 This part replaces 532085436. Price: $2.42 |
| 5 |
532800547 |
TRIM PLATE Price: $7.15 |
| 7 |
532036953 |
SCREW Price: $3.15 |
| 8 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 9 |
532157081 |
HANDLE.LOWER.BLACK This part replaces 532153028. Price: $54.99 |
| 10 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532131959. Price: $9.99 |
| 11 |
532700417 |
THROTTLE CONTROL Price: $17.99 |
| 12 |
532085723 |
WASHER PM Price: $2.99 |
| 13 |
532007192 |
WIRE TIE This part replaces 532151517. Price: $7.99 |
| 14 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532132001. Price: $7.99 |
| 15 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532136376. Price: $9.99 |
| 16 |
532059935 |
SCREW 1/4-20X1.75 Price: $2.38 |
| 17 |
532138860 |
SIDE BAFFLE Price: $3.16 |
| 18 |
532133190 |
DISCHARGE BAFFLE This part replaces 532125376. Price: $4.99 |
| 20 |
532128415 |
RIVET BLIND Price: $3.99 |
| 21 |
532054583 |
SCREW Price: $4.99 |
| 22 |
532156380 |
BACK PLATE This part replaces 532139734. Price: $8.99 |
| 23 |
532048283 |
KIT.SHIELD.DEBRIS.21.RWGD.EZ This part replaces 532134612. Price: $12.99 |
| 24 |
532133040 |
REAR BAFFLE This part replaces 532125348. Price: $4.99 |
| 26 |
532413160 |
SKIRT.REAR.22RD/SD.FO/VE This part replaces 532140540. Price: $11.99 |
| 27 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 29 |
532088652 |
HINGE SCREW Price: $3.99 |
| 30 |
596322601 |
Nuts This part replaces 532751592. Price: $2.99 |
| 32 |
532153404 |
HANDLE BRACKET (RIGHT) Price: $2.38 |
| 33 |
532153405 |
HANDLE BRACKET (LEFT) Price: $2.42 |
| 34 |
532142842 |
WHEEL ADJ BRKT RF-LR Price: $3.52 |
| 35 |
532401629 |
SPACER.HEIGHT.ADJUSTER This part replaces 532146630. Price: $3.99 |
| 37 |
532125066 |
SELECTOR SPRING Price: $4.99 |
| 38 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 39 |
532145937 |
AXLE ARM This part replaces 532151254. Price: $3.99 |
| 40 |
532062335 |
WASHER.BELLEVILLE (3 2 LB) Price: $7.99 |
| 41 |
532174719 |
BOLT SHOULDER 3/8 -16X1 This part replaces 532142748. Price: $7.99 |
| 42 |
532435276 |
WHEEL.8X1.75.CF5SPK.RAD.BLACK This part replaces 532800333. Price: $24.99 |
| 43 |
532428450 |
KIT.O-RING/WASHER This part replaces 532057143. Price: $3.99 |
| 44 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 45 |
532850845 |
HUB CAP Price: $3.99 |
| 46 |
532142843 |
WHEEL ADJ BRKT RR-LF Price: $3.52 |
| 47 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 48 |
532125078 |
WASHER.ENGINE.BZP Price: $4.99 |
| 50 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $3.99 |
| 51 |
532170573 |
KIT, HOUSING This part replaces 532151008. Price: $136.99 |
| 52 |
532087930 |
GUIDE CLIP PM Price: $5.99 |
| 53 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 54 |
532170557 |
KIT.BAFFLE.FRT.22RD.FO.PU/FWGD This part replaces 532125345. Price: $27.99 |
| 56 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 57 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 58 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 59 |
532141114 |
BLADE 22" Price: $24.99 |
| 60 |
532851514 |
BLADE ADAPTOR Price: $7.99 |
| 61 |
532088614 |
CATCHER.FRAME.WALK Price: $44.99 |
| 62 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 64 |
532147612 |
REAR DOOR ASSEMBLY Price: $30.93 |
| 67 |
532125078 |
WASHER.ENGINE.BZP This part replaces 532213146. Price: $4.99 |
| 68 |
532083816 |
SCREW.HEX.HEAD.WASHER.10-16 Price: $4.99 |
| 69 |
532087677 |
HI PRO KEY PM WSL Price: $3.99 |
| 70 |
532059708 |
SCREW Price: $4.99 |
| 71 |
532084596 |
ENGINE.PULLEY.FWG Price: $27.99 |
| 73 |
532150050 |
SCREW.HXTAP.10-24 Price: $2.99 |
| 74 |
532166649 |
PLUG.MULCH.22RD This part replaces 532125368. Price: $27.99 |
| 75 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 77 |
532150654 |
COMBI-CUT DOOR Price: $13.99 |
| 78 |
532147286 |
ROD.HINGE.COMBI-C Price: $6.99 |
| 80 |
532147775 |
BRACKET.HINGE ASM.W/FIN Price: $3.99 |
| 81 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 82 |
532145285 |
CLIP-ON DISCHARGE DEFLECTOR This part replaces 532150653. Price: $8.99 |
| 532150321 |
NAMEPLATE |
HUSQVARNA Price: $4.99 532150321 |
