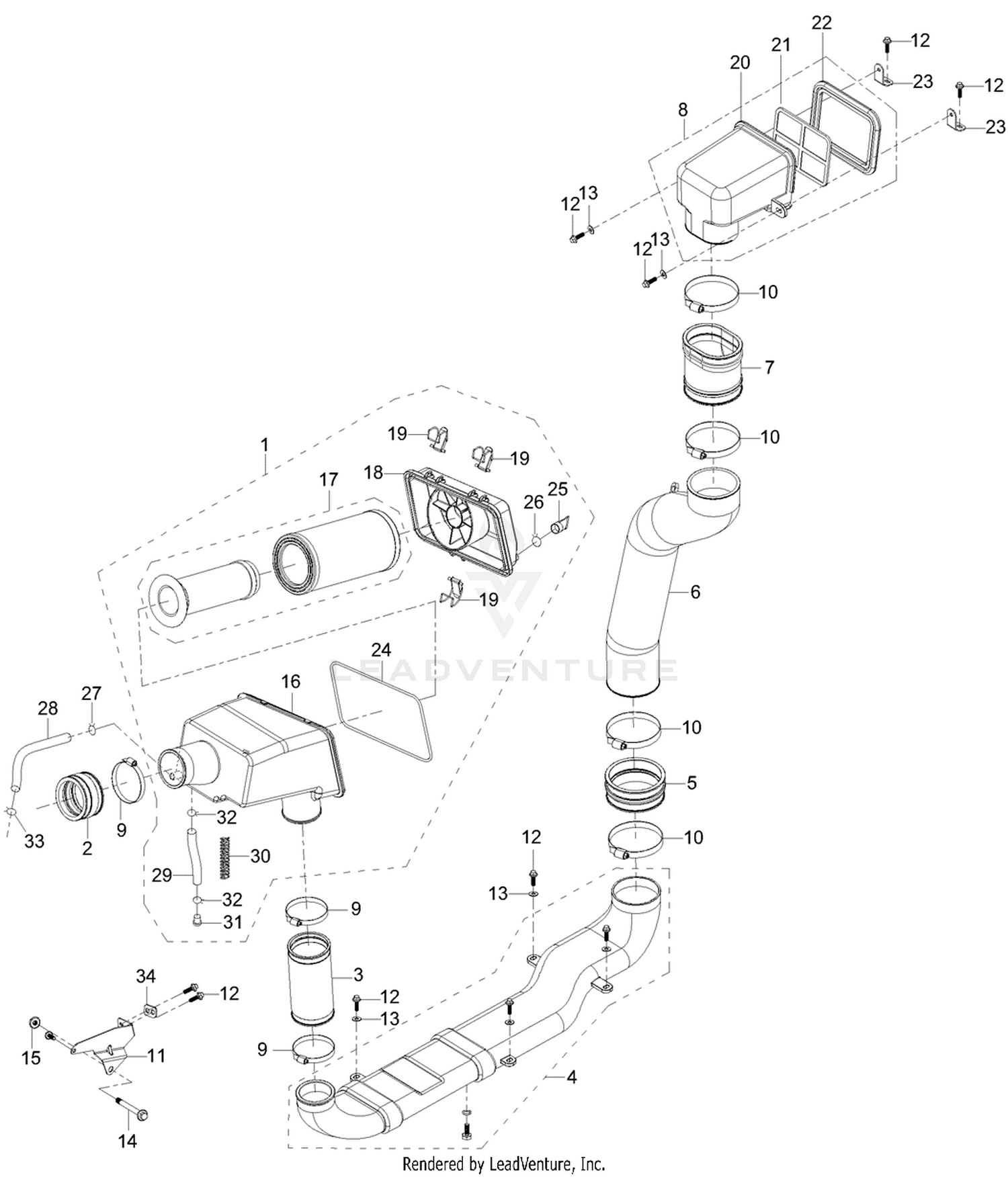

| Ref | Part Number | Description |
|---|
| 2 |
503-01483 |
INNER THROTTLE SLEEVE Price: $11.36 |
| 3 |
503-01484A |
AIR CLEANER SLEEVE - INNER Price: $22.58 |
| 4 |
503-01485A |
AIR CLEANER DUCT - INNER Price: $111.82 |
| 5 |
503-01475 |
CLUTCH AIR INLET SLEEVE Price: $19.29 |
| 6 |
503-01487 |
AIR CLEANER DUCT - INNER Price: $111.19 |
| 7 |
503-01488 |
AIR CLEANER SLEEVE - INNER Price: $64.59 |
| 9 |
503-00704 |
SCREW HOOP Price: $8.97 |
| 10 |
503-01482 |
NARROW BAND CLAMP Price: $10.52 |
| 11 |
503-01312 |
AIR CLEANER STRAP Price: $25.89 |
| 12 |
503-00011 |
HEXAGON FLANGE BOLT M6X16 Price: $5.48 |
| 13 |
503-01489 |
FLAT WASHER Price: $3.98 |
| 14 |
503-00682 |
HEX FLANGE BOLT M10X1.25X55 Price: $8.63 |
| 15 |
503-01375 |
LOCK NUT M10X1.25 Price: $6.13 |
| 16 |
503-01490 |
SECONDARY AIR BOX Price: $121.16 |
| 17 |
503-01491 |
SECONDARY AIR FILTER Price: $49.80 |
| 18 |
503-01492 |
AIRBOX COVER Price: $16.07 |
| 19 |
503-01493 |
CLAMP Price: $5.01 |
| 20 |
503-01494 |
PRIMARY FILTER BODY Not Available Price: |
| 21 |
503-01495 |
PRIMARY AIR FILTER Price: $7.81 |
| 22 |
503-01496 |
PRIMARY AIR FILTER COVER Price: $28.41 |
| 23 |
503-01497 |
BRACKET Not Available Price: |
| 24 |
503-01498 |
SECONDARY FILTER SEAL Price: $28.41 |
| 25 |
503-01499 |
FITTING Not Available Price: |
| 26 |
503-01500 |
CLAMP Price: $3.60 |
| 28 |
503-01501 |
HOSE Price: $8.93 |
| 29 |
503-02022 |
HOSE Price: $12.25 |
| 30 |
503-02241 |
COMPRESSION SPRING Price: $4.56 |
| 31 |
503-02067 |
DRAIN VALVE Price: $1.51 |
| 32 |
503-00240 |
O-RING 140X2.65 Not Available Price: |
| 33 |
503-00386 |
SPRING CLAMP Price: $12.55 |
