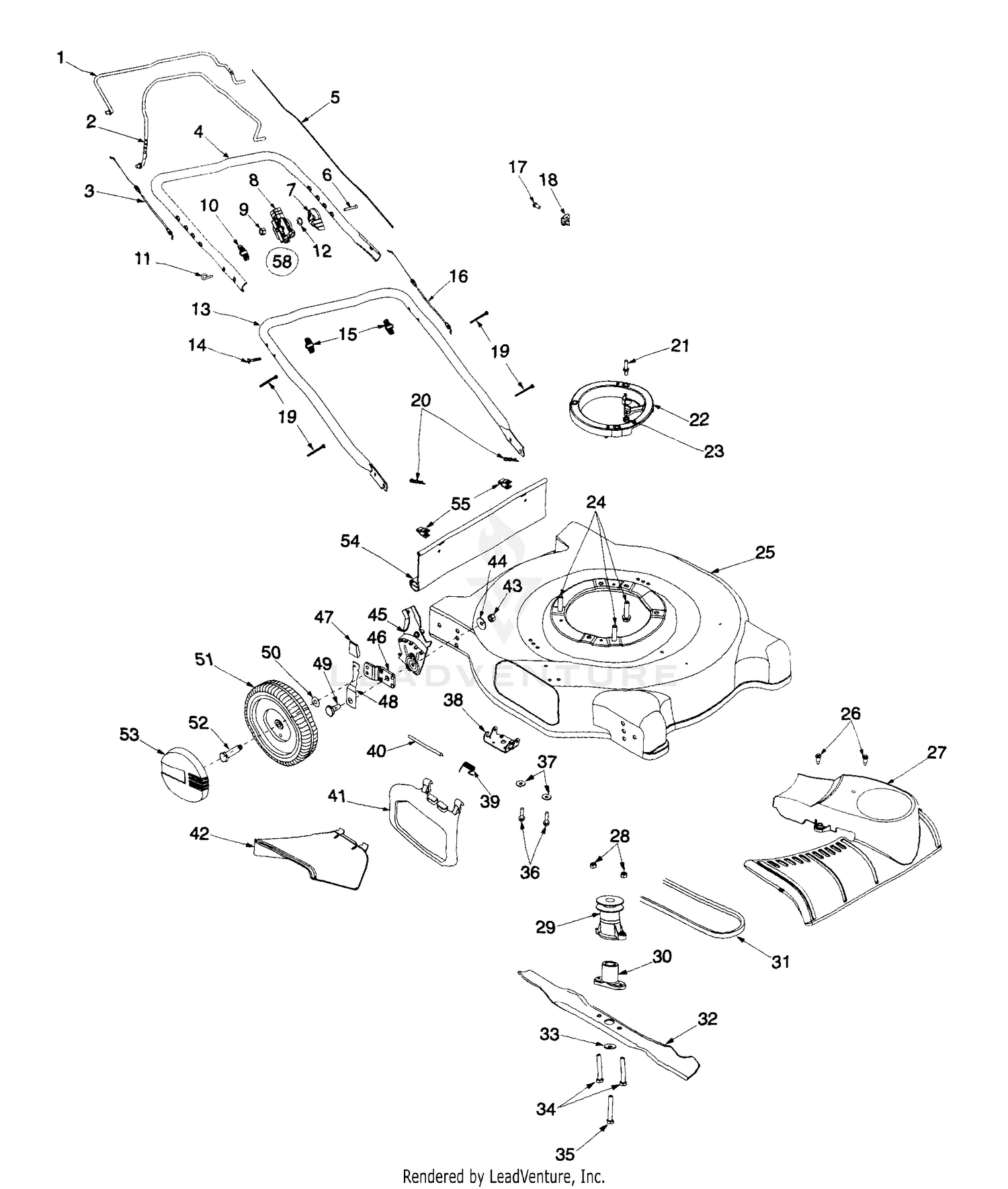

| Ref | Part Number | Description |
|---|
| 1 |
747-0824B-0637 |
Std. Control Handle This part replaces 747-0824. Price: $57.85 |
| 2 |
747-0854-0637 |
DRIVE CONTROL LEVER Not Available This part replaces 747-0854. Price: |
| 3 |
946-0959 |
DRIVE CABLE This part replaces 746-0959. Price: $31.90 |
| 4 |
749-0538C |
UPPER HANDLE Not Available Price: |
| 9 |
712-0324 |
Hex Lock Nut 1/4-20 Price: $3.38 |
| 10 |
720-0279 |
Knob Price: $3.93 |
| 11 |
710-1205 |
Eye Bolt 1/4-20 Price: $3.53 |
| 13 |
749-0928A-0637 |
Lower Handle This part replaces 749-0928. Price: $29.67 |
| 14 |
710-1174 |
Carriage Bolt 5/16-18 x 2.0 Price: $6.28 |
| 15 |
920-0276 |
Hand Knob This part replaces 720-0276. Price: $3.23 |
| 19 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 20 |
714-0104 |
Cotter Pin Price: $3.90 |
| 21 |
711-1293 |
Pin-Belt Keeper Price: $4.21 |
| 22 |
631-0075B |
ENGINE SPACER ASSEMBLY Not Available This part replaces 631-0075A. Price: |
| 23 |
712-0271 |
Hex Nut 1/4-20 Thread Price: $3.78 |
| 24 |
710-1008 |
Tapp Screw w/Hex Lock Wash Price: $4.75 |
| 25 |
682-0087 |
DECK 22" SD Not Available Price: |
| 26 |
710-1650 |
Shoulder Screw # 12 -24 This part replaces 7510042824. Price: $4.22 |
| 27 |
731-1926 |
COVER FRON Not Available Price: |
| 28 |
712-0324 |
Hex Lock Nut 1/4-20 Thd. Price: $3.38 |
| 29 |
756-1146A |
Drive Pulley Price: $50.73 |
| 31 |
954-0466 |
BELT .380 x 36.68" This part replaces 754-0466. Price: $28.09 |
| 32 |
942-0642A |
Standard Blade 22-inch This part replaces 742-0642. Price: $24.37 |
| 33 |
736-0452 |
Bell Washer .396 I.D. x 1.140 O.D. x .095 Price: $4.05 |
| 34 |
710-0606 |
Hex Screw 1/4-20 x 1.50 Price: $4.67 |
| 35 |
710-1257 |
Hex Screw 3/8-24 x 2.50 Price: $7.02 |
| 36 |
710-0599 |
Tapp Screw 1/4-20 x .500 Price: $3.86 |
| 37 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 38 |
782-7006 |
MOUNTING BRACKET Not Available Price: |
| 39 |
932-0731 |
Torsion Spring This part replaces 732-0731. Price: $9.09 |
| 40 |
747-0710A |
Hinge Pin This part replaces 747-0710. Price: $3.86 |
| 41 |
731-1386D |
MULCH PLUG Not Available This part replaces 731-1386A. Price: |
| 42 |
931-1034B |
CHUTE DEFLECTOR Not Available This part replaces 731-1034. Price: |
| 43 |
712-0798 |
Hex Nut 3/8-16 Price: $3.86 |
| 44 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 45 |
987-02106A |
HANDLE BRACKET ASSEMBLY (RH) Not Available This part replaces 682-3024. Price: |
| 46 |
15262B |
Pivot Bar Price: $13.59 |
| 47 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0190. Price: $12.01 |
| 48 |
94832 |
Front Spring Lever This part replaces 732-0404. Price: $9.48 |
| 49 |
738-0507B |
Shldr Screw .500 Dia x .434 Price: $3.86 |
| 50 |
736-0105 |
Bell Washer .380 x .880 x .062 Price: $3.96 |
| 51 |
634-0020 |
Wheel 8 x 1.75 Disk Bar Gray Price: $35.05 |
| 52 |
738-0102 |
Shoulder Screw .498 x 1.445 Price: $9.22 |
| 53 |
920-0249 |
HUB CAP Not Available This part replaces 720-0249. Price: |
| 54 |
731-1029 |
FLAP ASSEMBLY Not Available Price: |
| 55 |
17098P |
HINGE CLIP Not Available This part replaces 17098. Price: |
