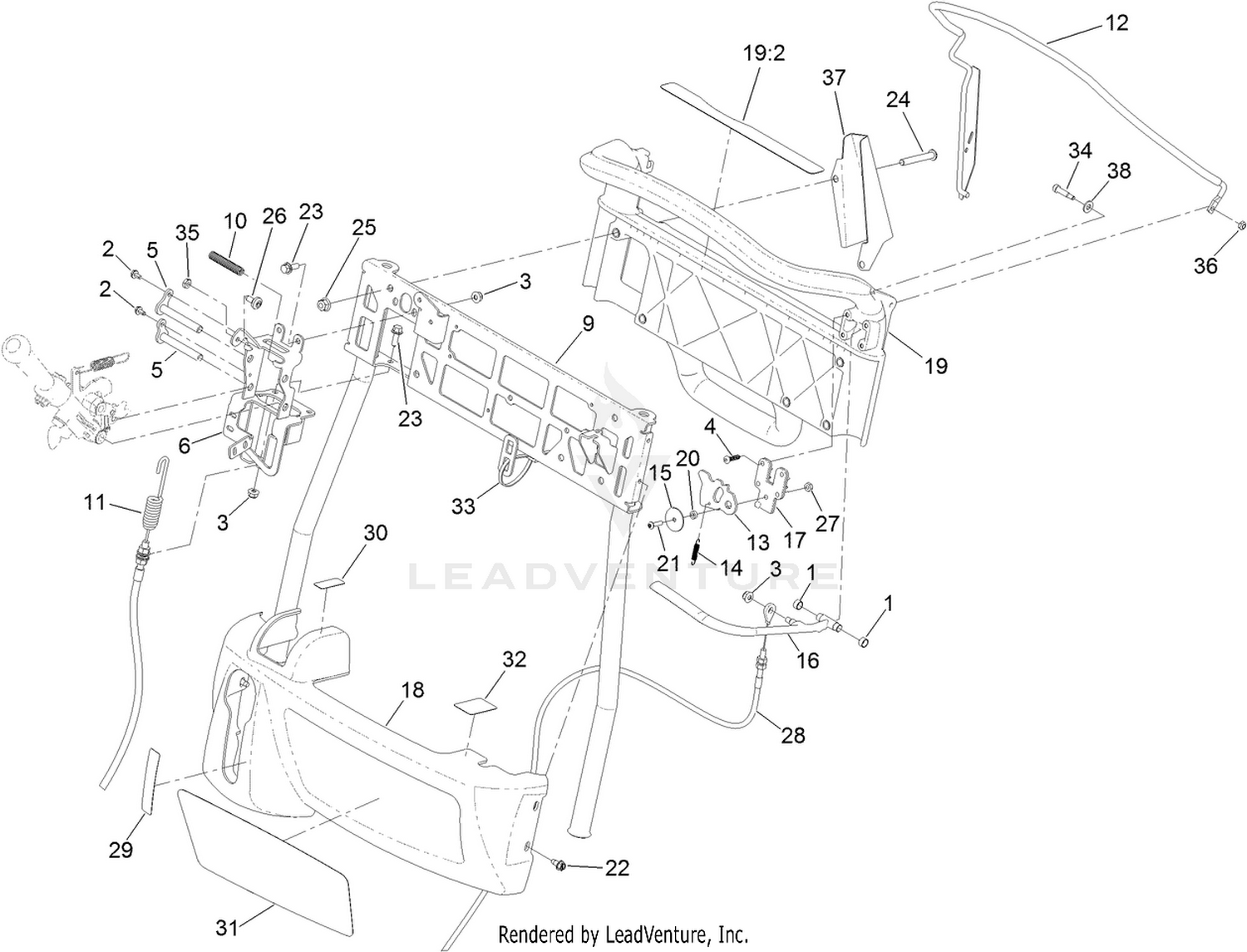

Handle Assembly
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 99-6247 | BUSHING-BRONZE Price: $0.75 |
| 2 | 104-2065 | SCREW-HWH Price: $0.28 |
| 3 | 119-4040 | NUT-FLANGE, NI Price: $0.52 |
| 4 | 120-9676 | SCREW-PLASTITE Price: $0.34 |
| 5 | 137-2364 | PIN-LEVER Price: $28.86 |
| 6 | 133-8815-03 | BRACKET-SHIFTER Price: $20.34 |
| 9 | 132-3792-03 | TUBE-HANDLE Price: $268.42 |
| 10 | 115-7299 | SPRING-EXTENSION Price: $5.79 |
| 11 | 115-7172 | CABLE-CLUTCH, REEL Price: $91.99 |
| 12 | 130-9372-03 | BAIL-LIFT Price: $81.02 |
| 13 | 115-7229 | LATCH-BRAKE Price: $8.78 |
| 14 | 115-7230 | SPRING-EXTENSION Price: $6.48 |
| 15 | 115-7231 | WASHER Price: $0.95 |
| 16 | 115-7232 | LEVER-BRAKE Price: $78.05 |
| 17 | 115-7238 | KEEPER-LEVER, BRAKE Price: $39.42 |
| 18 | 131-3097 | COVER-CONSOLE Price: $107.29 |
| 19 | 120-9726 | UPPER HANDLE ASM Price: $159.66 |
| 20 | 115-7291 | SPACER-LATCH, BRAKE Price: $3.46 |
| 21 | 119-1224 | SCREW-HSBH Price: $1.09 |
| 22 | 120-9551 | SCREW-HWH Price: $0.74 |
| 23 | 120-9678 | SCREW-HHF Price: $0.42 |
| 24 | 115-7260 | SCREW-HSBH Price: $2.92 |
| 25 | 119-4041 | NUT-HF Price: $0.48 |
| 26 | 120-7950 | SCREW-SHOULDER Price: $1.79 |
| 27 | 120-9659 | NUT-LOCK, NI This part replaces 120-9681. Price: $0.25 |
| 28 | 115-7171 | CABLE-BRAKE Price: $70.20 |
| 29 | 115-7271 | DECAL-SHIFT, GEAR Price: $4.72 |
| 30 | 131-3111 | DECAL-THROTTLE Price: $2.67 |
| 31 | 132-7078 | DECAL Price: $87.86 |
| 32 | 120-9598 | DECAL-BRAKE Price: $2.88 |
| 33 | 3290-378 | TIE-CABLE Price: $0.79 |
| 34 | 130-9374 | SCREW-SHOULDER Price: $2.78 |
| 35 | 120-9695 | NUT-JAM Price: $0.50 |
| 36 | 3296-12 | NUT-LOCK, NI Price: $1.29 |
| 37 | 130-9373-03 | COVER-LEVER, BAIL Price: $13.02 |
