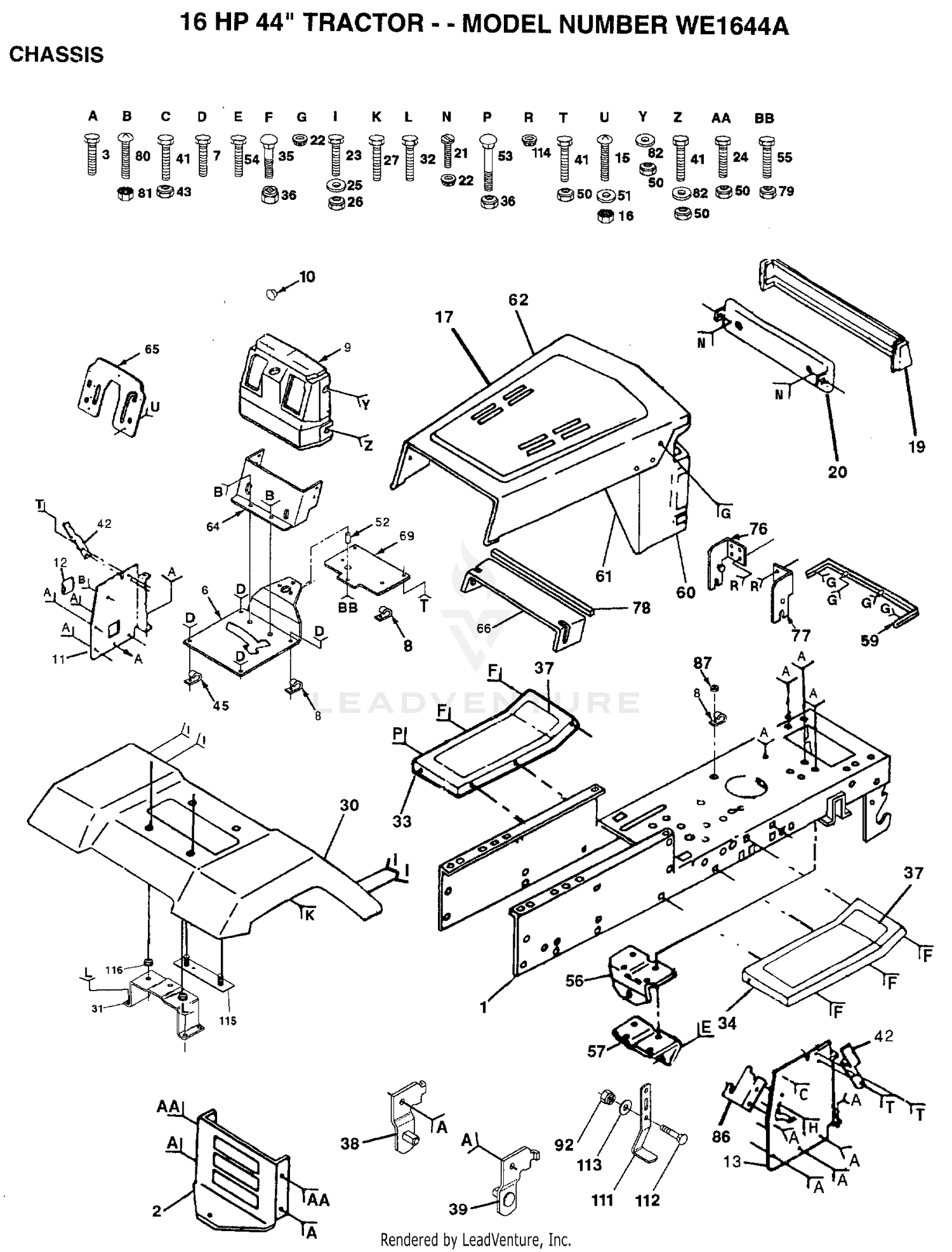

| Ref | Part Number | Description |
|---|
| 1 |
140341 |
SUB= 145501 Price: Call Us |
| 2 |
123785X |
DRAW BAR Price: Call Us |
| 3 |
17490612 |
SCREW Price: Call Us |
| 6 |
127543 |
SUB= 127543X011 Price: Call Us |
| 7 |
17490612 |
SCREW Price: Call Us |
| 8 |
2751R |
CLIP T Price: Call Us |
| 9 |
136696 |
SUB= 145203 Price: Call Us |
| 10 |
112-7026 |
WHEEL BEARING CASE ASM This part replaces 98-9480. Price: $196.85 |
| 10 |
8022J |
PLUG-DASH T Price: Call Us |
| 11 |
138643 |
PANEL.DASH.RH Price: Call Us |
| 15 |
74180412 |
SCREW Price: Call Us |
| 16 |
73510500 |
NUT Price: Call Us |
| 17 |
123801X419 |
HOOD Price: Call Us |
| 19 |
110898X |
LENS T Price: Call Us |
| 20 |
132257 |
SUB= 918132257 Price: Call Us |
| 20 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 21 |
124201X |
SCREW SPECIAL Price: Call Us |
| 22 |
108067X |
PAL NUT LT Price: Call Us |
| 23 |
74780616 |
BOLT Price: Call Us |
| 24 |
74760612 |
SUB= 74780612 Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 26 |
73800600 |
NUT Price: Call Us |
| 27 |
17490608 |
SCREW LT Price: Call Us |
| 30 |
131-6554 |
GASKET-CASE, BEARING This part replaces 98-9634. Price: $7.12 |
| 30 |
140002X419 |
FENDER.RALLY.GRN. Price: Call Us |
| 31 |
137713 |
BRACKET FENDER Price: Call Us |
| 32 |
17490612 |
SCREW Price: Call Us |
| 33 |
105465X419 |
SUB= 145244X419 Price: Call Us |
| 34 |
105464X419 |
FOOTREST RH Price: Call Us |
| 35 |
72110606 |
BOLT Price: Call Us |
| 36 |
73800600 |
NUT Price: Call Us |
| 37 |
133671 |
FOOTREST PAD Price: Call Us |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 40 |
112-7046 |
COVER-CASE, BEARING This part replaces 98-9487. Price: $66.00 |
| 41 |
74760616 |
BOLT Price: Call Us |
| 42 |
139915 |
BRACKET.ASM.SUPT. Price: Call Us |
| 43 |
73680600 |
SUB= 73690600 Price: Call Us |
| 50 |
112-0180 |
SEAL-OIL This part replaces 98-9483. Price: $58.48 |
| 50 |
73800600 |
NUT Price: Call Us |
| 51 |
19111116 |
WASHER Price: Call Us |
| 52 |
121236X |
SPACER Price: Call Us |
| 53 |
72140608 |
SUB= 72110608 Price: Call Us |
| 54 |
17490508 |
SCREW LT Price: Call Us |
| 55 |
74760532 |
BOLT Price: Call Us |
| 56 |
105663X |
SUPPORT-SADDL T Price: Call Us |
| 57 |
105664X |
SUPPORT.SADDLE.FT Price: Call Us |
| 60 |
140671 |
GRILLE ASM WELD Price: Call Us |
| 60 |
98-9635 |
GASKET-COVER, BEARING CASE Price: $12.61 |
| 61 |
123674X419 |
ASSY RH PANEL Price: Call Us |
| 62 |
123765X419 |
SIDE PANEL LH Price: Call Us |
| 64 |
105518X |
DASH-LOWER YT Price: Call Us |
| 65 |
140941X011 |
PLATE SLKSC YT/ Price: Call Us |
| 69 |
140181 |
PLATE.SUPT.BATTER Price: Call Us |
| 70 |
98-9352 |
BOLT Price: $0.80 |
| 76 |
137467 |
BRACKET.RH Price: Call Us |
| 77 |
137466 |
BRACKET.LH Price: Call Us |
| 78 |
109458X |
FOAM STRIP T Price: Call Us |
| 79 |
73800500 |
NUT Price: Call Us |
| 80 |
74180512 |
SCREW Price: Call Us |
| 80 |
98-7568 |
BOLT Price: $0.84 |
| 81 |
73510500 |
NUT Price: Call Us |
| 82 |
19131614 |
WASHER Price: Call Us |
| 87 |
110436X |
SUB= 9151R Price: Call Us |
| 90 |
115-4106 |
MAIN BEARING CASE ASM This part replaces 98-9606. Price: $189.84 |
| 92 |
73800600 |
NUT Price: Call Us |
| 100 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 110 |
98-9485 |
BOLT-CASE, BEARING Price: $22.80 |
| 111 |
142992 |
STOP.OVER.CENTER Price: Call Us |
| 112 |
72240608 |
BOLT Price: Call Us |
| 113 |
19131612 |
WASHER GT Price: Call Us |
| 114 |
120579X |
PAL NUT Price: Call Us |
| 115 |
140675 |
STRAP ASM FENDER Price: Call Us |
| 120 |
115-4107 |
MAIN BEARING CASE ASM This part replaces 98-9607. Price: $152.88 |
