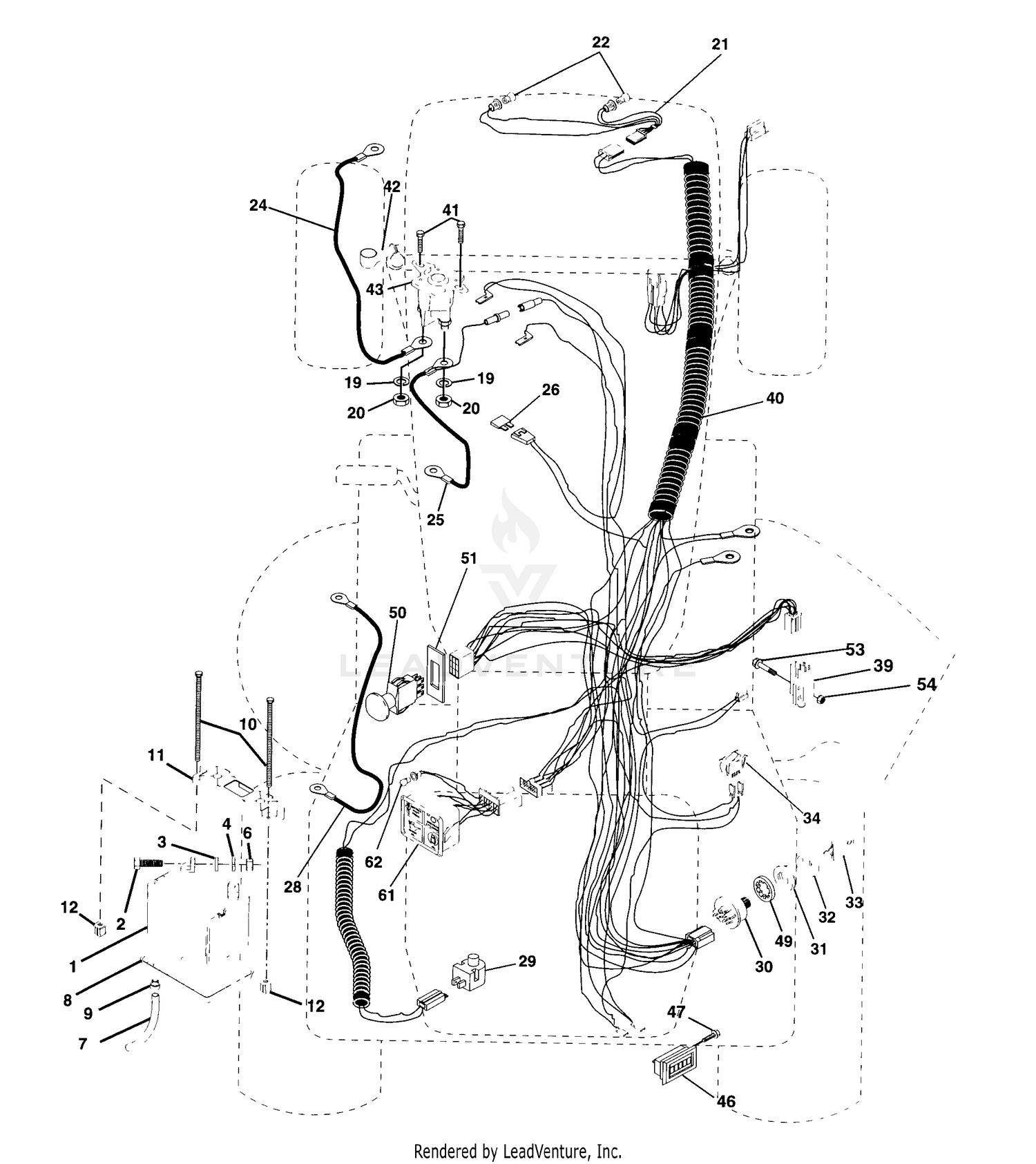

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 1 |
76-7010 |
RING-RETAINING Price: $3.66 |
| 2 |
105-3331 |
SEAL-SHAFT This part replaces 94-3008. Price: $35.63 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 3 |
60-6240 |
WASHER This part replaces 94-3007. Price: $15.20 |
| 4 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 4 |
76-7000 |
RING-RETAINING Price: $7.46 |
| 5 |
76-6950 |
RACE-THRUST Price: $25.65 |
| 6 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 6 |
76-6960 |
BEARING-THRUST Price: $23.23 |
| 7 |
532007697 |
PLASTIC TUBE Price: $6.23 |
| 7 |
94-3004 |
SHAFT-DRIVE, SPLINED Price: $564.48 |
| 8 |
532007603 |
TRAY.BATTERY This part replaces 532124886. Price: $5.99 |
| 8 |
94-3002 |
SCREW-CAP Price: $7.19 |
| 9 |
532109596 |
HOSE CLAMP T Price: $3.99 |
| 9 |
94-3005 |
BACKPLATE ASM Price: $1,185.62 |
| 10 |
532150177 |
BATTERY TIEDOWN KIT This part replaces 532145211. Price: $8.99 |
| 10 |
76-6980 |
O-RING Price: $11.28 |
| 11 |
137-4286 |
SENSOR-SPEED ASM This part replaces 94-3010. Price: $634.90 |
| 11 |
532150109 |
BATTERY HOLDDOWN FRONT MOUNT This part replaces 532145209. Price: $4.99 |
| 12 |
532150177 |
BATTERY TIEDOWN KIT This part replaces 532145769. Price: $8.99 |
| 15 |
94-3003 |
PLATE-VALVE Price: $515.64 |
| 16 |
76-6910 |
ROTATING KIT Price: $2,143.15 |
| 17 |
76-6970 |
INSERT-PLATE, CAM Price: $140.84 |
| 19 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810090400. Price: $2.99 |
| 20 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $2.99 |
| 21 |
532136850 |
HARNESS LIGHT SOCKET Price: $15.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 24 |
532004014 |
CABLE, STARTER Price: $8.03 |
| 25 |
532146686 |
CABLE, BATTERY Price: $8.99 |
| 26 |
532108824 |
FUSE HYT Price: $4.99 |
| 28 |
532006408 |
CABLE, GROUND Price: $7.05 |
| 29 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 30 |
532158913 |
KIT.SWITCH.IGNITION This part replaces 532144921. Price: $39.99 |
| 31 |
532145774 |
KIT-WASHER/NUT This part replaces 532140400. Price: $3.99 |
| 32 |
532141226 |
COVER SWITCH KEY Price: $4.99 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 39 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $14.99 |
| 40 |
532151873 |
CABLE ASS This part replaces 532147341. Price: $134.16 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532145673. Price: $19.99 |
| 46 |
532169642 |
KIT.HOURMETER.SNAP-IN This part replaces 532110940. Price: $109.99 |
| 47 |
817011008 |
Screw #10-24 x 1/2 Price: $2.38 |
| 49 |
811151000 |
Washer, Lock internal Tooth 5/8 Price: $0.66 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532140404. Price: $24.99 |
| 51 |
532140405 |
FRAME RETAINING RING Price: $3.99 |
| 53 |
874641008 |
SCREW ** This part replaces 871031008. Price: $2.99 |
| 54 |
873951000 |
Nut Keps #10-32 Price: $6.99 |
| 61 |
532138101 |
LIGHT PACKAGE Price: $44.99 |
