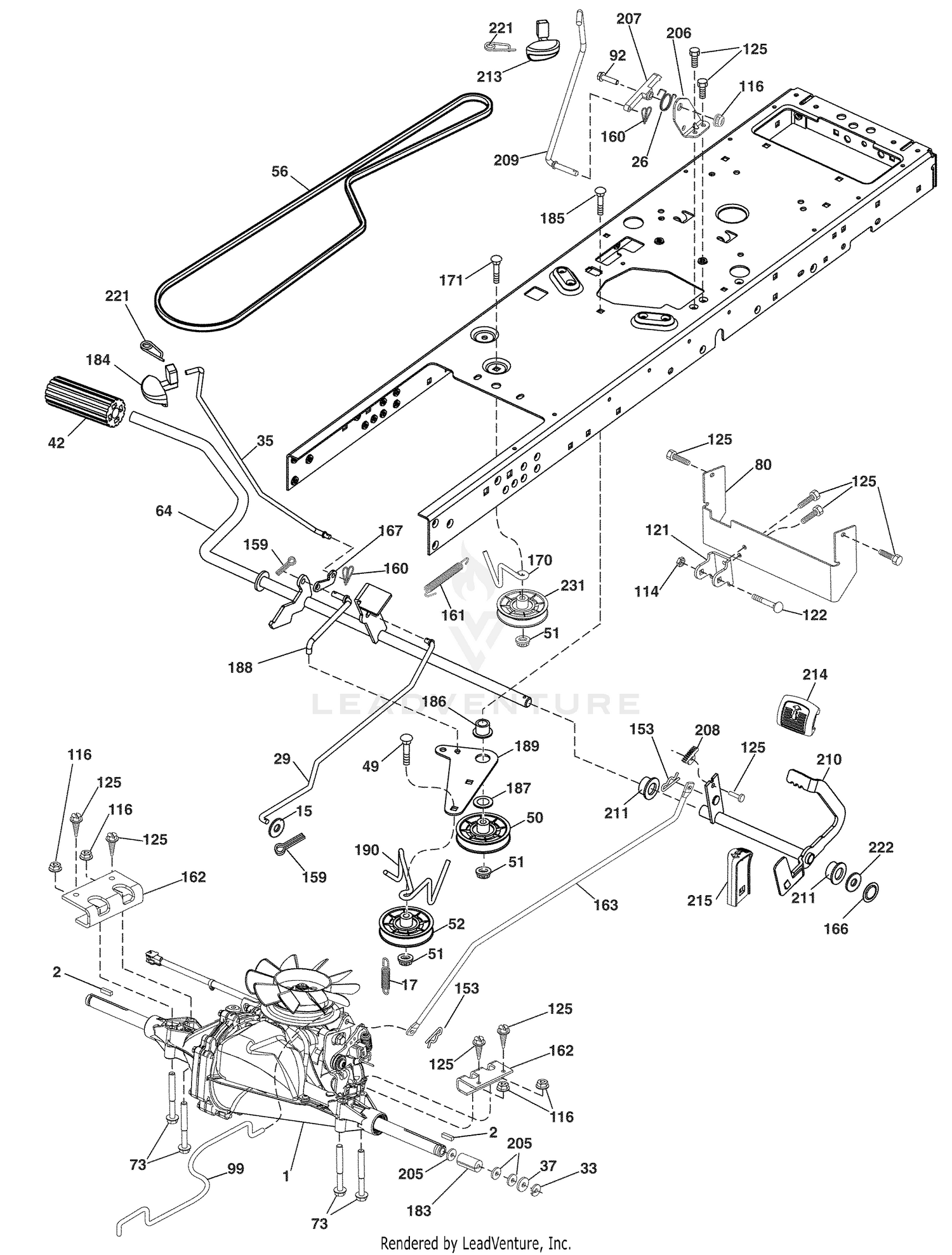

| Ref | Part Number | Description |
|---|
| 1 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 2 |
29-9790 |
DISCONTINUED Price: Call Us |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 3 |
321-9 |
SCREW-HH Price: $0.27 |
| 4 |
3210-7 |
SCREW-HH Price: $0.61 |
| 5 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 6 |
3219-2 |
NUT-HEX Price: $0.37 |
| 7 |
29-6162 |
SWITCH-MICRO Price: $107.13 |
| 8 |
3249-11 |
SCREW-MACHINE Price: $0.54 |
| 9 |
46-8810 |
STOP-SPRING, LEAF Price: $9.17 |
| 10 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 11 |
3217-16 |
NUT-HEX Price: $0.25 |
| 12 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
52-8890-03 |
DISCONTINUED This part replaces 52-8890. Price: Call Us |
| 17 |
52-9070 |
PLATE-PUMP Price: $101.93 |
| 17 |
532197296 |
SPRING.BRAKE.HG3000/3500 Price: $5.99 |
| 18 |
322-17 |
SCREW-HH Price: $2.62 |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 21 |
321-4 |
SCREW-HH Price: $0.99 |
| 22 |
110-9650 |
LEAF SPRING ASM This part replaces 29-6150. Price: $33.06 |
| 23 |
251-259 |
BEARING-BALL Price: $13.67 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 29 |
532423239 |
ROD.BRAKE.T2.TEX This part replaces 532408391. Price: $39.99 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 37 |
532121749 |
WASHER Price: $2.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
532125907 |
BELT Price: $34.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 80 |
581550701 |
STRAP.TORQUE.T2 This part replaces 532408393. Price: $22.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532408418 |
ROD.ASM.BYPASS.SPRING.T2.FS Price: $7.99 |
| 114 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 121 |
532175611 |
BRACKET STRAP TORQUE Price: $6.99 |
| 122 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 162 |
532408784 |
ADAPTER.TRANSAXLE.T2.TLT.DRWBR Price: $6.99 |
| 163 |
594007201 |
Rods This part replaces 532413322. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 This part replaces 532197290. Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532413430 |
KEEPER.CENTER SPAN.1.688 Price: $5.99 |
| 171 |
872110622 |
BOLT Price: $3.99 |
| 183 |
532156972 |
SPACER, AXLE PVST Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
596435101 |
Bolts This part replaces 872110620. Price: $2.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $32.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX This part replaces 532401722. Price: $6.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
