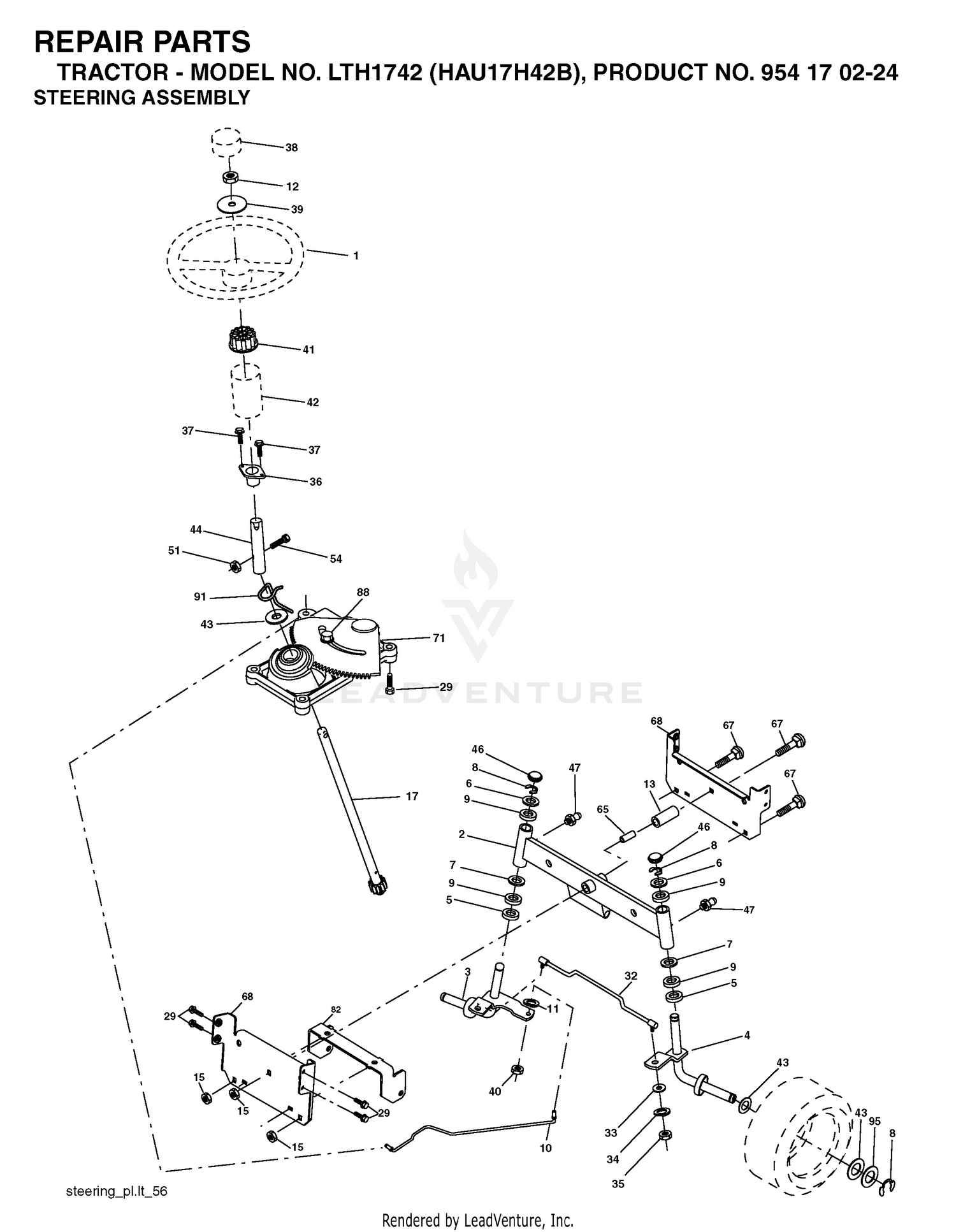

| Ref | Part Number | Description |
|---|
| 1 |
532166627 |
STEERING WHEEL Price: $64.99 |
| 2 |
138-1204 |
SEAL-BOOT Price: $28.62 |
| 2 |
531171101 |
SERVICE KIT AXLE HALF ASM This part replaces 532175131. Price: $59.99 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
138-1205 |
BEARING-CUP Price: $22.22 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 5 |
138-1206 |
BEARING-CONE Price: $22.22 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
105-8124 |
STUD-WHEEL Price: $7.84 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 7 |
138-1207 |
SCREW-SOCKET HEAD Price: $2.58 |
| 7 |
819272016 |
WASHER Price: $3.99 |
| 8 |
138-1208 |
WASHER-LOCK Price: $2.71 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $3.99 |
| 10 |
105-8121 |
PIN-DOWEL Price: $0.41 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $59.99 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 12 |
138-6928 |
SPACER Price: $22.26 |
| 12 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 13 |
138-6929 |
WASHER Price: $5.09 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 14 |
138-6930 |
NUT-LOCK Price: $40.36 |
| 15 |
138-1209 |
GEAR-RING Price: $837.28 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 16 |
138-1210 |
RING-SNAP Price: $25.99 |
| 17 |
353-990 |
PLUG ASM Price: $10.01 |
| 17 |
532407600 |
KIT.RPLMNT.SHAFT.STRG. This part replaces 532180641. Price: $59.99 |
| 18 |
237-78 |
O-RING Price: $3.85 |
| 19 |
138-1211 |
PLUG-FLANGE, MAGNETIC Price: $7.25 |
| 20 |
138-1212 |
O-RING Price: $1.73 |
| 21 |
138-1213 |
CAP-END Price: $89.39 |
| 22 |
138-1214 |
WASHER-THRUST, SUN Price: $9.02 |
| 23 |
105-8131 |
RING-RETAINING Price: $3.05 |
| 25 |
138-1215 |
GEAR-PRIMARY, SUN Price: $97.58 |
| 26 |
138-1216 |
SHAFT-DRIVE Price: $300.56 |
| 27 |
138-1217 |
PRIMARY CARRIER ASM Price: $917.18 |
| 28 |
138-1218 |
SECONDARY CARRIER ASM Price: $802.56 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 32 |
532171888 |
TIE ROD Price: $59.99 |
| 33 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
873540500 |
NUT, CROWNLOCK Price: $3.99 |
| 36 |
532155106 |
KIT.BUSHING.STEERING This part replaces 532155099. Price: $8.99 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
532172092 |
INSERT.CAP.STRG.WH (3 2) (L B) This part replaces 532166626. Price: $12.99 |
| 39 |
819182411 |
Washer 9/16 ID x 1 1/2 OD 11 Ga. Zin Price: $4.99 |
| 40 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 41 |
532159945 |
STEERING WHEEL ADAPTOR Price: $6.99 |
| 42 |
532145054 |
STEERING BOOT, GRAY This part replaces 532169634. Price: $11.99 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 44 |
532407600 |
KIT.RPLMNT.SHAFT.STRG. This part replaces 532180640. Price: $59.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 47 |
532183226 |
FITTING.GREASE.TAPERED Price: $4.99 |
| 51 |
873540400 |
NUT.CROWNLOCK.1/4-28 Price: $4.99 |
| 54 |
871130420 |
Bolt Hex 1/4-28 unf x 1-1/4 Gr. 8 Price: $4.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 67 |
872110618 |
BOLT CARRIAGE Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 71 |
531167801 |
SERVICE KIT STEERING ASM This part replaces 532175146. Price: $139.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $4.99 |
| 91 |
532175553 |
CLIP.STEERING Price: $9.99 |
| 95 |
532188967 |
WASHER.HARDENED Price: $3.99 |
