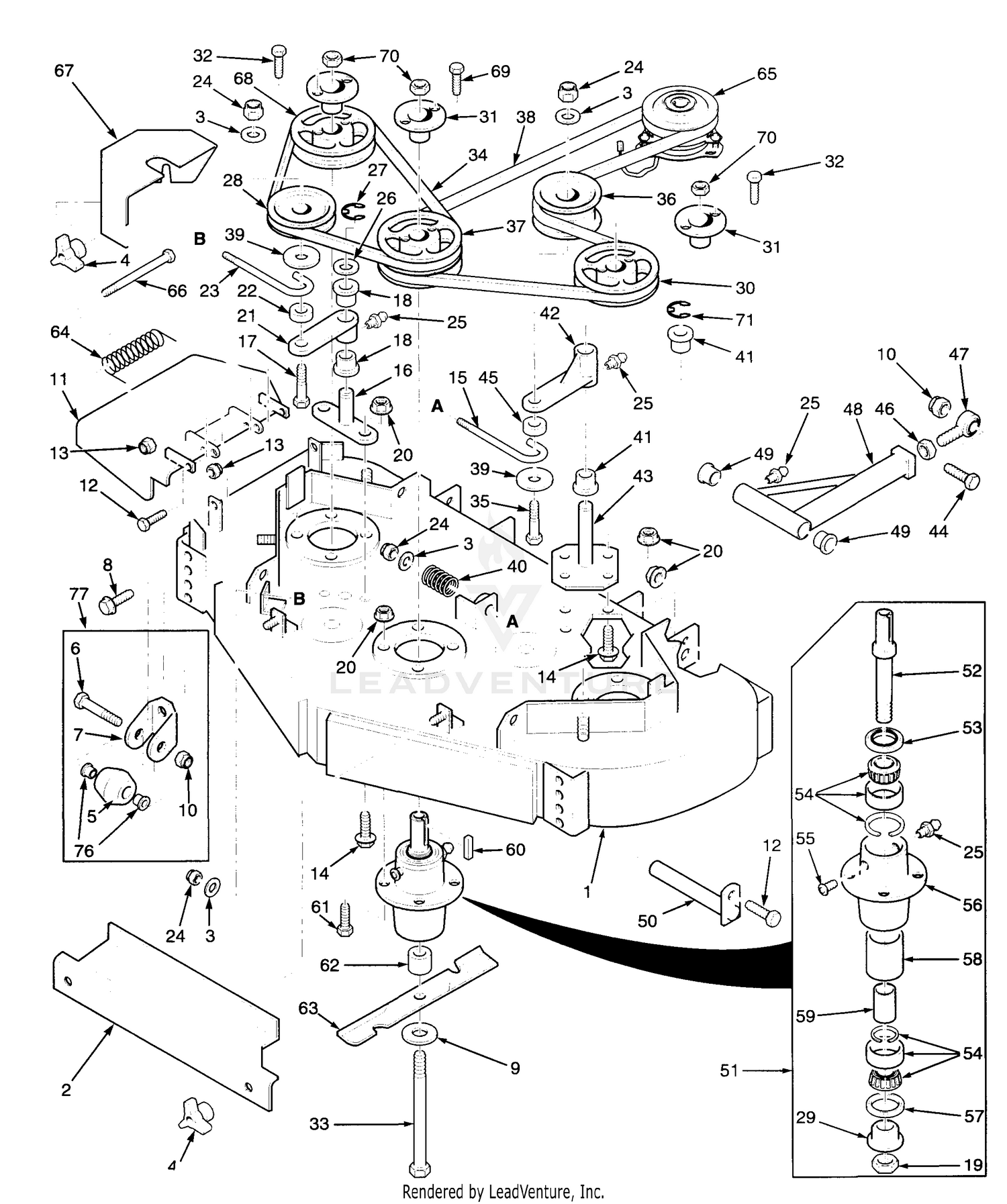

| Ref | Part Number | Description |
|---|
| 2 |
421058 |
Belt Cover, Front Price: Call Us |
| 3 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 4 |
04029-03 |
Wing Nut, 3/8-16 Price: Call Us |
| 5 |
481689 |
Anti-Scalp Wheel Price: Call Us |
| 6 |
04003-26 |
Bolt, carriage 3/8-16 x 4" Price: Call Us |
| 7 |
422525 |
Anti-Scalp Wheel Bracket Price: Call Us |
| 8 |
04017-27 |
Bolt, Hex Serrated Flange 3/8-16 x 1" Price: Call Us |
| 9 |
04040-10 |
Flatwasher, 5/8" (.688 x 1.75 x .134) Price: Call Us |
| 10 |
04021-05 |
Nut, Lock 3/8-16 Center Lock Price: Call Us |
| 11 |
461293 |
DISCH CHUTE W/TAG, SMZ-SMALL This part replaces 461056. Price: Call Us |
| 12 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 13 |
04021-10 |
Nut, Hex Elastic Stop 5/16-18 Price: Call Us |
| 14 |
04017-16 |
Bolt, Hex Serrated Flange 5/16-18x 3/4" Price: Call Us |
| 16 |
45037 |
Idler Pivot Base Price: Call Us |
| 17 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" Price: Call Us |
| 18 |
48100-05 |
Bushing Price: Call Us |
| 19 |
481035 |
Nut, Special 1-1/16-18 Price: Call Us |
| 20 |
04019-03 |
Nut, Hex Serrated Flange 5/16-18 Price: Call Us |
| 22 |
43077 |
Spacer Price: Call Us |
| 24 |
04021-09 |
Nut, Hex Elastic Stop 3/8-16 Price: Call Us |
| 25 |
48114-04 |
Grease Fitting Price: Call Us |
| 26 |
04041-08 |
Flatwasher, 3/4" Price: Call Us |
| 27 |
04050-02 |
Ring, Retaining 3/4" External "E" Price: Call Us |
| 28 |
48181 |
Pulley, Idler Price: Call Us |
| 29 |
43297 |
Spindle Bushing, Bottom Price: Call Us |
| 30 |
482744 |
Pulley, 5.75 OD Taper Bore This part replaces 48924. Price: Call Us |
| 31 |
48926 |
Tapered Hub, 1-1/8 Bore Price: Call Us |
| 32 |
04001-01 |
Bolt, Hex Head 1/4-20 x 3/4" Price: Call Us |
| 33 |
04001-41 |
Bolt, Hex Head 5/8-11 x 9-1/2" Price: Call Us |
| 34 |
48087 |
Belt, RH Blade Drive Price: Call Us |
| 35 |
04001-23 |
Bolt, Hex Head 3/8-16 x 4-1/2" Price: Call Us |
| 36 |
483210 |
Pulley, 5" Idler This part replaces 48550. Price: Call Us |
| 37 |
48923 |
Pulley, Double Groove Price: Call Us |
| 38 |
48799 |
Belt, Blade Drive Price: Call Us |
| 39 |
04041-12 |
Flatwasher, 3/8" (.375 x 1.5 x .06) Price: Call Us |
| 40 |
48807 |
Spring, Idler Tension Price: Call Us |
| 41 |
48100-02 |
Bushing Price: Call Us |
| 43 |
45329 |
Idler Pivot Base Price: Call Us |
| 44 |
04001-97 |
Bolt, Hex Head 5/8-11 x 3" Price: Call Us |
| 46 |
04020-16 |
Nut, Hex 5/8-18 UNF Price: Call Us |
| 47 |
48763 |
Rod End Price: Call Us |
| 49 |
48100-06 |
Bushing Price: Call Us |
| 50 |
451240 |
Push Arm Shaft This part replaces 45332. Price: Call Us |
| 51 |
461663 |
Spindle Assembly This part replaces 46631. Price: Call Us |
| 52 |
43589 |
Shaft, Spindle This part replaces 43298. Price: Call Us |
| 53 |
481024 |
Seal, Top Price: Call Us |
| 55 |
48667 |
Relief Fitting, Tapered Spindle Price: Call Us |
| 56 |
43644 |
Spindle Housing This part replaces 43294. Price: Call Us |
| 57 |
481025 |
Seal, Bottom Price: Call Us |
| 58 |
43312 |
Spacer, Outside Price: Call Us |
| 59 |
43296 |
Spacer, Inside Price: Call Us |
| 60 |
04063-08 |
Key, 1/4 x 1/4 x 2" Price: Call Us |
| 61 |
04001-10 |
Bolt, Hex Head 5/16-18 x 1-1/4" Price: Call Us |
| 62 |
43591 |
SPACER, SPINDLE BOTTOM This part replaces 43279. Price: Call Us |
| 63 |
481706 |
Cutter Blade, 16-1/2" This part replaces 48110. Price: Call Us |
| 64 |
482245 |
Spring, Discharge Chute This part replaces 481050. Price: Call Us |
| 65 |
461074 |
CLUTCH ASSEMBLY This part replaces 48786. Price: Call Us |
| 66 |
04001-108 |
Bolt, Hex Head 5/16-18 x 4.25" Price: Call Us |
| 67 |
421616 |
Belt Cover, LH Price: Call Us |
| 68 |
482744 |
Pulley, 5.75 OD Taper Bore This part replaces 48924. Price: Call Us |
| 69 |
04001-109 |
Bolt, Hex Head 1/4-20 x 1.375 Full Thread Price: Call Us |
| 71 |
04050-05 |
Ring, Retaining 1-1/8" External "E" Price: Call Us |
| 73 |
04001-51 |
Bolt, Hex Head 3/8-16 X 3 3/4" Price: Call Us |
| 74 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 75 |
43369 |
Nut, 3/8-16 Special W/Washer Price: Call Us |
| 76 |
48100-16 |
Bushing, Anti-Scalp Wheel Price: Call Us |
| 421615 |
Belt |
Cover, RH Price: Call Us 421615 |
| 481710 |
Cutter |
Blade 16-1/2 Hi-Lift This part replaces 48184. Price: Call Us 481710 |
