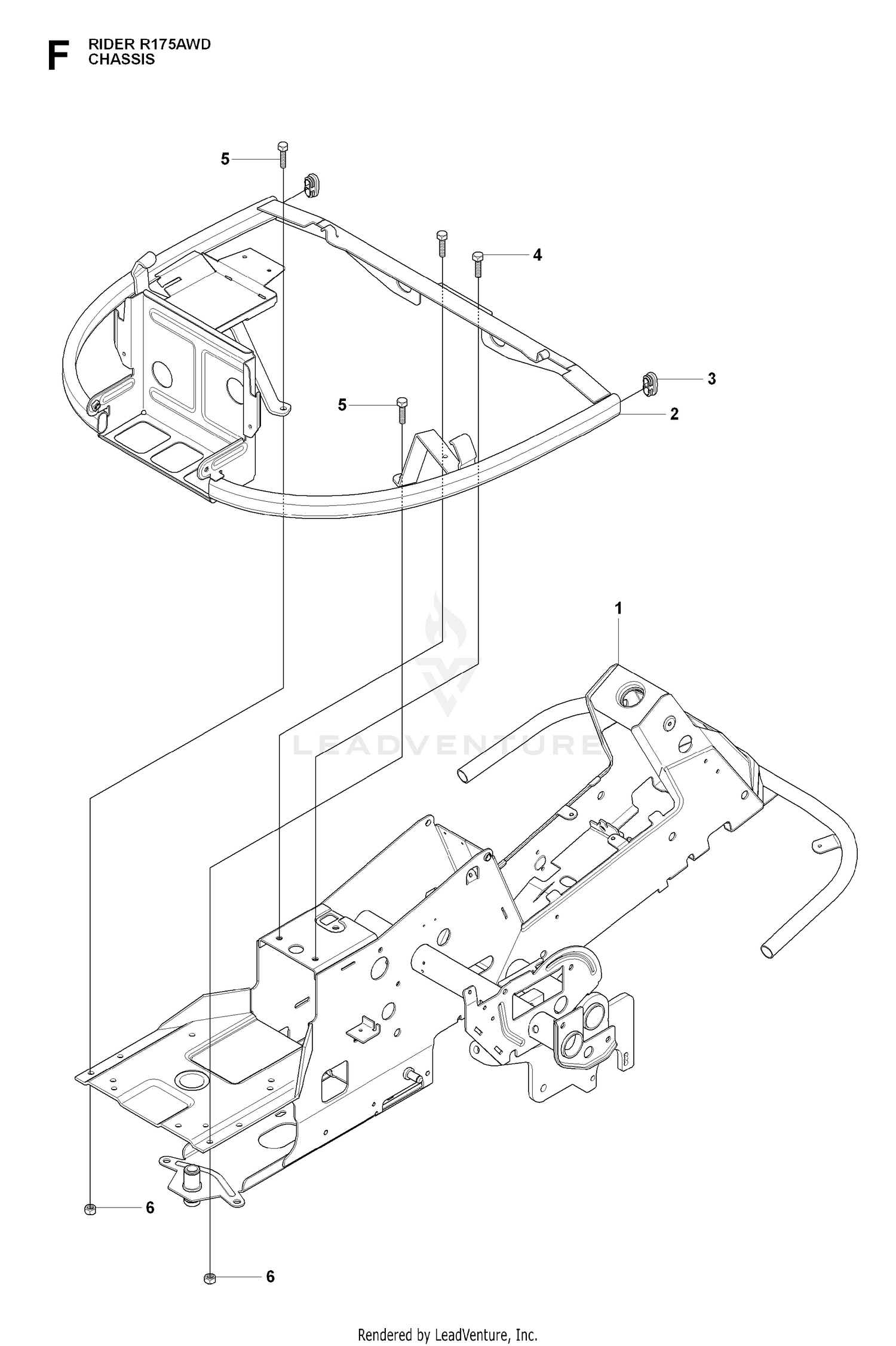

CHASSIS LOWER
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 544842401 | FRAME Price: $849.99 |
| 2 | 544244202 | ENGINE FRAME Price: $199.99 |
| 3 | 544244401 | PLUG Price: $1.99 |
| 5 | 725245171 | SCREW Price: $2.08 |
| 6 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 10 | 105-3786 | SPRING-START Price: $3.91 |
| 20 | 98-9681 | SPRING-GOVERNOR Price: $12.06 |
| 30 | 115-4502 | FORK LEVER ASM Price: $551.34 |
| 40 | 107-9084 | LEVER-FORK Price: $101.37 |
| 50 | 107-9085 | SHAFT-LEVER, FORK Price: $24.90 |
| 60 | 107-9086 | SHAFT-LEVER, FORK Price: $24.90 |
| 70 | 98-9570 | BEARING-MINIATURIZE Price: $13.60 |
| 80 | 115-4122 | COVER-SHAFT, FORK LEVER Price: $6.97 |
| 90 | 98-9682 | GASKET Price: $0.95 |
| 100 | 98-9350 | BOLT Price: $0.98 |
| 110 | 98-9567 | COLLAR Price: $3.78 |
