| Ref | Part Number | Description |
|---|
| 1 |
237-65 |
O-RING Price: $2.50 |
| 2 |
340-14 |
FITTING-HYD, 45 DEG Price: $42.29 |
| 3 |
92-5691 |
HOSE-HYD Price: $113.74 |
| 4 |
237-22 |
O-RING Price: $2.43 |
| 5 |
340-69 |
ELBOW-BULKHEAD, 45 DEG Price: $31.67 |
| 6 |
92-5689 |
FORWARD TUBE ASM Price: $333.88 |
| 7 |
92-5690 |
REVERSE TUBE ASM Price: $313.01 |
| 8 |
92-5693-01 |
BRACKET-BULKHEAD This part replaces 92-5693. Price: $31.76 |
| 9 |
92-5692 |
U-BOLT Price: $40.59 |
| 10 |
340-70 |
NUT-LOCK Price: $2.10 |
| 11 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 12 |
92-5698 |
HOSE ASM Price: $262.64 |
| 13 |
92-5688 |
HOSE ASM Price: $119.23 |
| 14 |
92-5686 |
HOSE ASM Price: $275.50 |
| 15 |
111-5088-03 |
JOINT-BALL, STEERING CYLINDER This part replaces 92-4725. Price: $198.95 |
| 16 |
237-79 |
O-RING Price: $5.46 |
| 17 |
92-4799 |
FITTING-TEE, HYD Price: $159.71 |
| 18 |
92-4726 |
TUBE-TRACTION Price: $402.37 |
| 19 |
92-4728 |
TUBE-FRONT Price: $133.35 |
| 20 |
92-5677 |
TUBE-TRACTION Price: $331.48 |
| 21 |
92-4748 |
ADAPTER-HYD, TEE Price: $131.52 |
| 22 |
237-58 |
O-RING Price: $2.18 |
| 23 |
66-5560 |
U-BOLT Price: $12.01 |
| 24 |
340-17 |
FITTING-ELBOW, 90 DEG Price: $42.29 |
| 25 |
92-5696 |
FITTING-ELBOW, 90 DEG Price: $110.05 |
| 26 |
237-80 |
O-RING Price: $6.10 |
| 27 |
340-94 |
ADAPTER Price: $36.83 |
| 28 |
237-42 |
O-RING Price: $2.78 |
| 29 |
92-2982 |
CONTROL BLOCK ASM Price: $2,640.21 |
| 30 |
92-5687 |
HOSE ASM Price: $113.74 |
| 31 |
340-88 |
FITTING-STRAIGHT Price: $11.24 |
| 32 |
237-78 |
O-RING Price: $3.85 |
| 33 |
322-3 |
SCREW-HH Price: $0.79 |
| 34 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 35 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 36 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 37 |
3217-6 |
NUT-HEX Price: $1.19 |
| 38 |
68-9400 |
NUT-FLANGE This part replaces 48-7930. Price: $2.29 |
| 39 |
3253-4 |
WASHER-LOCK This part replaces 48-9570. Price: $0.25 |
| 40 |
86-6460-01 |
BRACKET-BLOCK This part replaces 86-6460. Price: $63.44 |
| 41 |
322-6 |
SCREW-HH Price: $0.45 |
| 42 |
92-4727 |
TUBE-REAR Price: $133.27 |
| 43 |
92-5669 |
HARNESS - SWITCH Price: $51.35 |
| 44 |
69-9740 |
SWITCH Price: $125.46 |

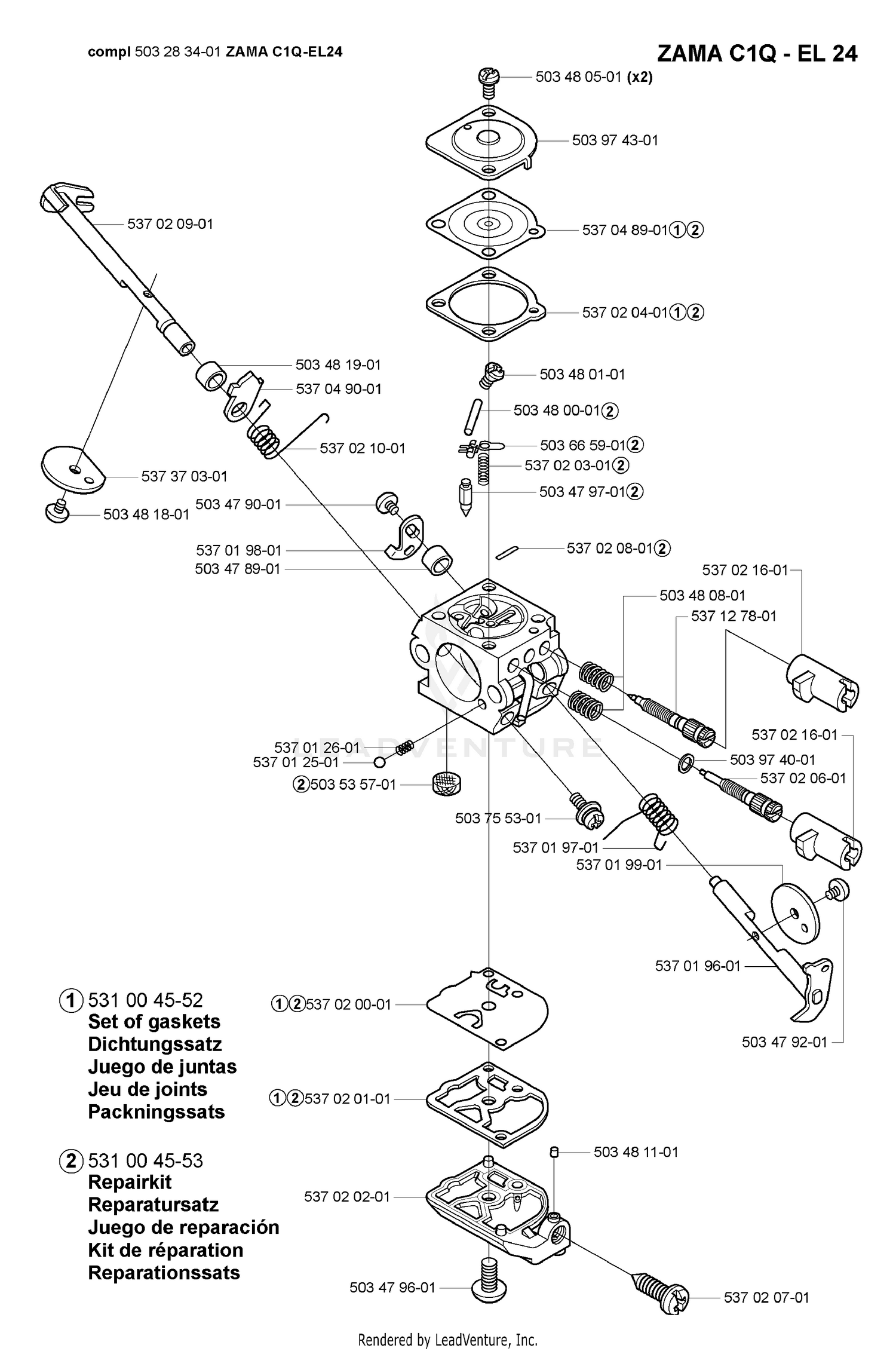

| 503283401 |
588171156 |
KIT CARB This part replaces 503283401. Price: $39.99 |
| 503478901 |
503478901 |
SPACER Price: $3.99 |
| 503479001 |
503479001 |
SCREW Price: $2.99 |
| 503479201 |
503479201 |
SCREW Price: $2.99 |
| 503479601 |
503479601 |
SCREW Price: $2.99 |
| 503479701 |
503479701 |
INLET NEEDLE Price: $8.99 |
| 503480001 |
537020801 |
PIN This part replaces 503480001. Price: $2.99 |
| 503480101 |
503480101 |
SCREW Price: $2.99 |
| 503480501 |
503480501 |
SCREW Price: $2.99 |
| 503480801 |
503994301 |
SPRING This part replaces 503480801. Price: $2.99 |
| 503481101 |
503481101 |
PLUG Price: $3.99 |
| 503481801 |
503481801 |
SCREW Price: $2.99 |
| 503481901 |
503481901 |
BUSHING Price: $5.99 |
| 503535701 |
503535701 |
STRAINER Price: $3.99 |
| 503665901 |
503665901 |
LEVER Price: $3.99 |
| 503755301 |
503755301 |
SCREW * Price: $2.99 |
| 503974001 |
503974001 |
WASHER Price: $2.99 |
| 503974301 |
503974301 |
COVER Price: $5.99 |
| 531004552 |
531004552 |
GASKET KIT (ZAMA GND39) Price: $9.99 |
| 531004553 |
531004553 |
CARBURETOR KIT (ZAMA RB69) Price: $17.99 |
| 537012501 |
537012501 |
BALL Price: $2.99 |
| 537012601 |
537012601 |
SPRING Price: $2.99 |
| 537019601 |
537019601 |
SHAFT Price: $6.99 |
| 537019701 |
537019701 |
SPRING THROTTLE Price: $2.99 |
| 537019801 |
537019801 |
LEVER Price: $3.99 |
| 537019901 |
537019901 |
THROTTLE FLAP Price: $3.99 |
| 537020001 |
537020001 |
PUMP DIAPHRAGM Price: $7.99 |
| 537020101 |
537020101 |
GASKET Price: $3.99 |
| 537020201 |
537020201 |
COVER Price: $19.99 |
| 537020301 |
537273401 |
SPRING This part replaces 537020301. Price: $4.99 |
| 537020401 |
537020401 |
GASKET Price: $3.99 |
| 537020601 |
537020601 |
NEEDLE HIGH SPEED Price: $3.99 |
| 537020701 |
537020701 |
SCREW Price: $6.99 |
| 537020801 |
537020801 |
PIN Price: $2.99 |
| 537020901 |
537020901 |
CHOKE SHAFT Price: $8.99 |
| 537021001 |
537021001 |
SPRING Price: $2.99 |
| 537021601 |
537021601 |
CAP Price: $2.99 |
| 537048901 |
537048901 |
DIAPHRAGM Price: $11.99 |
| 537049001 |
537049001 |
LEVER Price: $2.99 |
| 537127801 |
537127801 |
LOW SPEED NEEDLE Price: $14.99 |
