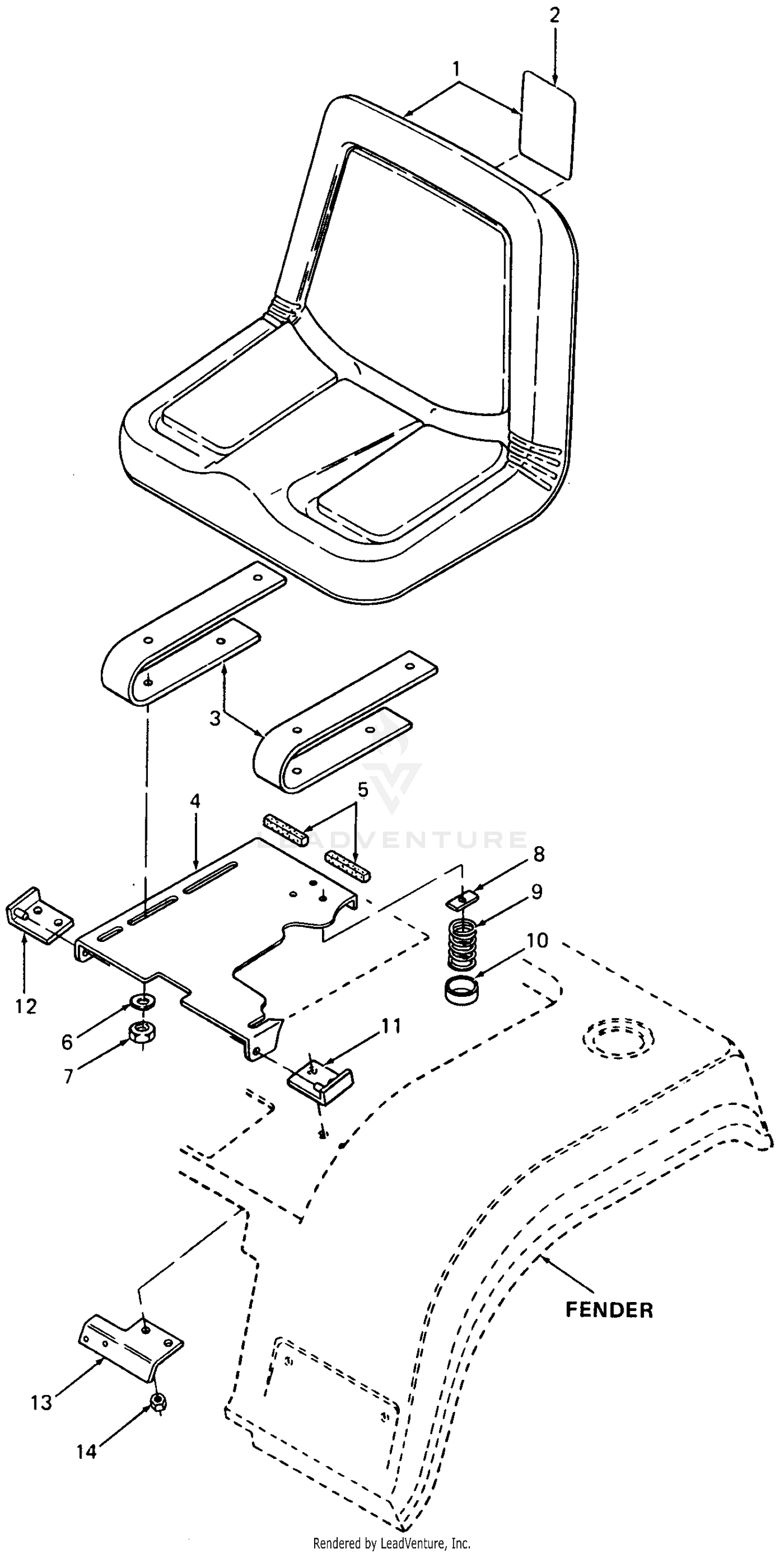

| Ref | Part Number | Description |
|---|
| 1 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 1 |
80-4860 |
PIN-CLEVIS Price: $6.13 |
| 2 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 2 |
75-3580 |
PLATE-SEAT Price: $213.06 |
| 2 |
779-3348 |
LABEL-FLAG Not Available Price: |
| 3 |
532180017 |
BEARING, FLANGE Price: $22.99 |
| 3 |
703-0068 |
SEAT SPRING Not Available Price: |
| 3 |
75-3530 |
SPRING-COMPRESSION Price: $31.98 |
| 4 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 4 |
703-0069 |
COVER, BATTERY BOX Not Available Price: |
| 4 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
532435789 |
PLATE.RUBBER.WHEEL.BLACK This part replaces 532199509. Price: $7.99 |
| 5 |
735-3005 |
Bumper, Hood Adhesive, Loctite #495 Price: Call Us |
| 6 |
3285-19 |
PIN-GROOVE This part replaces 75-3540. Price: $1.79 |
| 6 |
585021001 |
RING.RUBBER.4.5".SNOW.DR(2 2MC This part replaces 532179831. Price: $22.99 |
| 6 |
736-0242 |
Washer, Bell, .345 X .88 X .06 Thk Price: $3.75 |
| 7 |
532178613 |
HUB, RUBBER WHEEL Price: $22.99 |
| 7 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 7 |
75-3550 |
BUMPER-SEAT Price: $18.48 |
| 8 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 8 |
726-3004 |
NUT-SPRING #10 x 1.88 Not Available Price: |
| 8 |
76-2940 |
BUMPER Price: $9.73 |
| 9 |
597412801 |
BEARING HOUSING ASSY TRUNNION This part replaces 532175344. Price: $29.99 |
| 9 |
732-3004 |
SEAT SWITCH SPRING Not Available Price: |
| 9 |
76-1920 |
SLEEVE-BEARING Price: $22.50 |
| 10 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 10 |
66-8610 |
DISCONTINUED Price: Call Us |
| 10 |
720-3001 |
SPRING-CAP Not Available Price: |
| 11 |
532180066 |
SHAFT.HEX.LONG Price: $84.99 |
| 11 |
66-8560 |
NUT-PUSH Price: $5.97 |
| 11 |
703-0070 |
BRACKET ASSY, PIVOT LH Not Available Price: |
| 12 |
532180065 |
GEAR, PINION Price: $12.99 |
| 12 |
703-0072 |
BRACKET ASSY, PIVOT RH Not Available Price: |
| 12 |
76-1910 |
DISCONTINUED Price: Call Us |
| 13 |
532192616 |
PLATE.AUXILIARY.BLACK This part replaces 532192907. Price: $4.99 |
| 13 |
703-1948 |
BRACKET-REV SWITCH Not Available Price: |
| 13 |
82-9060 |
DISCONTINUED Price: Call Us |
| 14 |
532179270 |
SPACER, PLATE Price: $9.99 |
| 14 |
76-1940 |
SPRING-EXTENSION Price: $66.03 |
| 15 |
532441417 |
KIT.GEAR.DRIVE.SNOW This part replaces 532180082. Price: $199.99 |
| 15 |
66-9290 |
SPACER-SUSPENSION Price: $3.60 |
| 16 |
108-6703 |
ADJUSTER-SEAT This part replaces 66-8530. Price: $183.47 |
| 16 |
532180134 |
SHAFT, AUXILIARY Price: $6.99 |
| 17 |
532405485 |
ARM, AUGER CONTROL Price: $6.99 |
| 17 |
66-8520 |
BUMPER-DOWNSTOP Price: $37.56 |
| 18 |
532057079 |
THRUST WASHER Price: $1.99 |
| 18 |
76-1960 |
KNOB KIT This part replaces 77-2870. Price: $357.33 |
| 19 |
106-1031 |
TENSION ADJUSTER KNOB ASM This part replaces 76-1930. Price: $68.93 |
| 19 |
532429668 |
KIT.CONTROL.SHAFT.SNOW This part replaces 532406109. Price: $29.99 |
| 20 |
3256-46 |
WASHER-FLAT Price: $5.77 |
| 20 |
532198580 |
CLEVIS PIN Price: $4.99 |
| 21 |
32128-26 |
NUT-FLANGE Price: $5.89 |
| 21 |
532184080 |
LEVER, SPEED CONTROL Price: $12.99 |
| 22 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 22 |
532435793 |
BRACKET.SHIFT.PIVOT.BLACK This part replaces 532187857. Price: $5.99 |
| 23 |
532178807 |
PIN, PIVOT Price: $3.99 |
| 23 |
75-3480 |
FRAME-UPPER Price: $323.32 |
| 24 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 24 |
532180135 |
SPRING, BIAS Price: $3.99 |
| 25 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 25 |
532187101 |
LINK, SPEED CONTROL Price: $64.99 |
| 26 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 26 |
75-3510 |
BOLT-SHOULDER Price: $14.55 |
| 27 |
93-3164 |
CAP Price: $11.64 |
| 28 |
93-3163 |
SPRING Price: $26.01 |
| 29 |
93-3165 |
BRACKET Price: $37.47 |
| 30 |
322-6 |
SCREW-HH Price: $0.45 |
| 31 |
3253-33 |
WASHER-LOCK Price: $1.19 |
