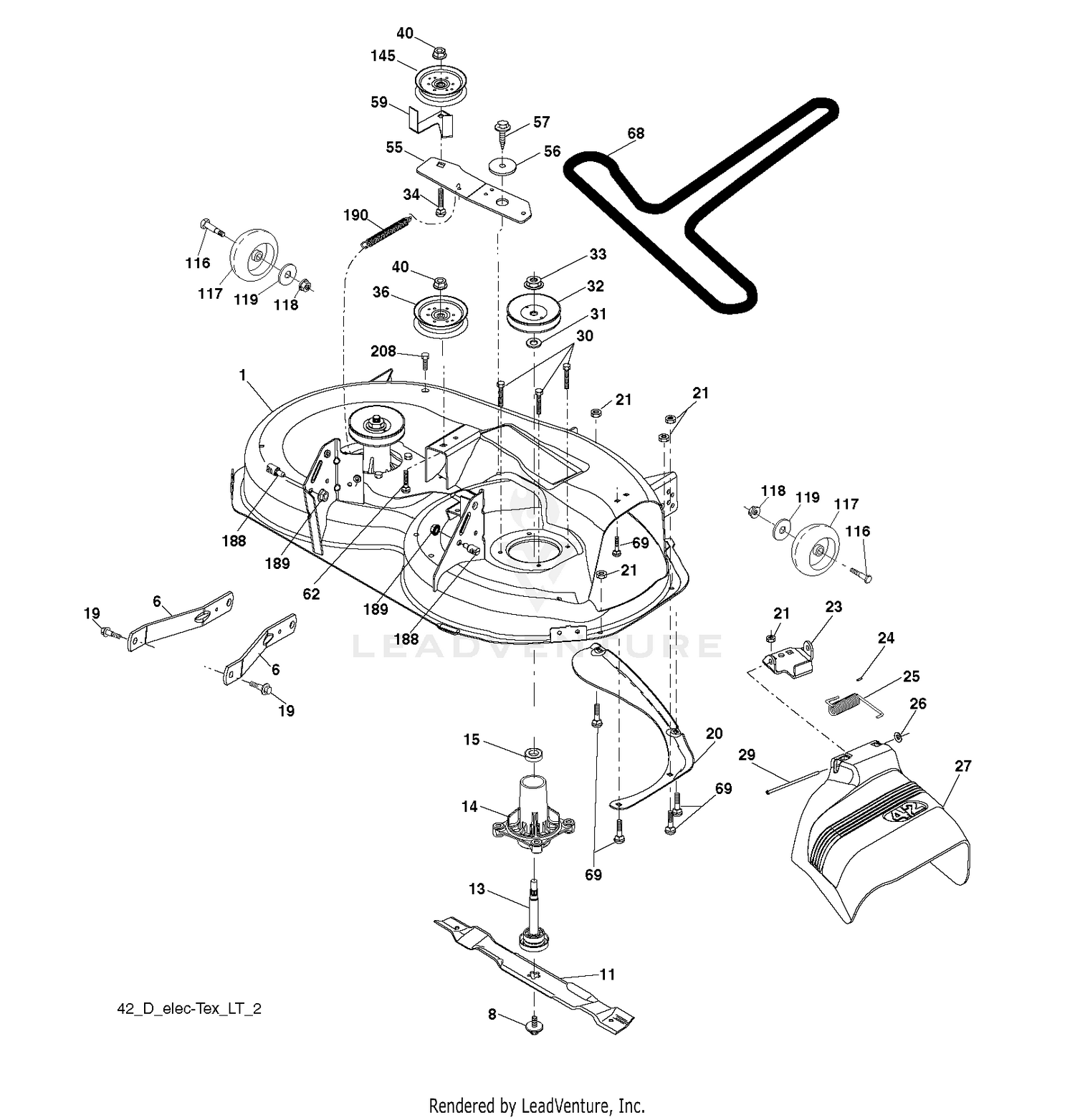

| Ref | Part Number | Description |
|---|
| 1 |
598602801 |
Decks This part replaces 532196495. Price: $349.99 |
| 1 |
67-4400 |
BOLT Price: $3.16 |
| 2 |
67-4520 |
PIPE Price: $118.49 |
| 3 |
67-4540 |
O-RING Price: $4.15 |
| 4 |
42-7510 |
DISCONTINUED Price: Call Us |
| 5 |
67-4530 |
INTAKE SUB-ASM COVER Price: $70.93 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 6 |
67-2750 |
COVER ASSEMBLY Price: $375.29 |
| 7 |
42-9430 |
SCREW-HH Price: $0.30 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 8 |
67-2670 |
DISCONTINUED Price: Call Us |
| 9 |
42-7510 |
DISCONTINUED Price: Call Us |
| 10 |
67-2660 |
O-RING Price: $6.73 |
| 11 |
67-2650 |
OIL FILTER CAP ASSEMBLY Price: $20.14 |
| 12 |
67-2770 |
DISCONTINUED Price: Call Us |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 13 |
67-2780 |
WASHER Price: $1.35 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 14 |
67-2760 |
GASKET Price: $25.95 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 15 |
67-2740 |
FLANGE BOLT Price: $7.07 |
| 16 |
67-2680 |
ENGINE HANGER Price: $9.36 |
| 17 |
67-2340 |
BOLT W/WASHER Price: $2.19 |
| 18 |
56-0020 |
EXPANSION PLUG Price: $14.38 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 19 |
86-6240 |
PLUG-TAPERED This part replaces 67-2570. Price: $5.11 |
| 20 |
42-9570 |
STUD Price: $2.57 |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532159770. Price: $11.99 |
| 21 |
42-9110 |
GASKET Price: $29.21 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
67-4580 |
BOLT Price: $2.94 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 23 |
60-7370 |
BOLT This part replaces 67-4590. Price: $2.75 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 24 |
67-4560 |
DISCONTINUED Price: Call Us |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 25 |
94-1258 |
GASKET - CYL HEAD This part replaces 75-4950. Price: $209.59 |
| 26 |
112-8435 |
GASKET-EXHAUST MANIFOLD This part replaces 67-4570. Price: $9.18 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $29.99 |
| 27 |
67-4700 |
GLOW LAMP Price: $117.35 |
| 28 |
75-4930 |
DISCONTINUED Price: Call Us |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 29 |
93-3526 |
SWITCH This part replaces 67-4500. Price: $177.42 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 30 |
93-3527 |
GASKET This part replaces 67-4490. Price: $4.82 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 31 |
67-4460 |
GASKET-FITTING, THERMOSTAT Price: $4.73 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $14.99 |
| 32 |
67-4450 |
FITTING-THERMOSTAT Price: $266.48 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 33 |
67-4470 |
DISCONTINUED Price: Call Us |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 34 |
67-2330 |
BOLT Price: $2.25 |
| 35 |
67-4510 |
GUAGE-TEMP, WATER Price: $151.90 |
| 36 |
43-2710 |
O-RING Price: $6.47 |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 37 |
67-4480 |
BY-PASS PIPE Price: $15.39 |
| 38 |
67-4440 |
THERMOSTAT Price: $87.79 |
| 39 |
67-4680 |
GLOW PLUG Price: $56.05 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 40 |
67-4690 |
GLOW PLUG PLATE Price: $11.69 |
| 41 |
99-1801 |
CAP - SEALING (DIA 20) This part replaces 67-2710. Price: $13.58 |
| 42 |
67-2700 |
VALVE GUIDE Price: $30.99 |
| 43 |
67-2730 |
BOLT Price: $13.81 |
| 44 |
67-4550 |
INTAKE MANIFOLD GASKET Price: $15.80 |
| 45 |
67-4430 |
GASKET-FITTING, WATER OUTLET Price: $4.75 |
| 46 |
67-4420 |
DISCONTINUED Price: Call Us |
| 55 |
531171201 |
SERVICE KIT IDLER.ARM.42" This part replaces 532437110. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 62 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 68 |
532144959 |
BELT V SECONDARY Price: $37.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 116 |
596434402 |
Bolts This part replaces 532124842. Price: $3.99 |
| 117 |
589527401 |
WHEEL.GAUGE.RALLY.NARROW This part replaces 532188606. Price: $9.99 |
| 118 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 190 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
