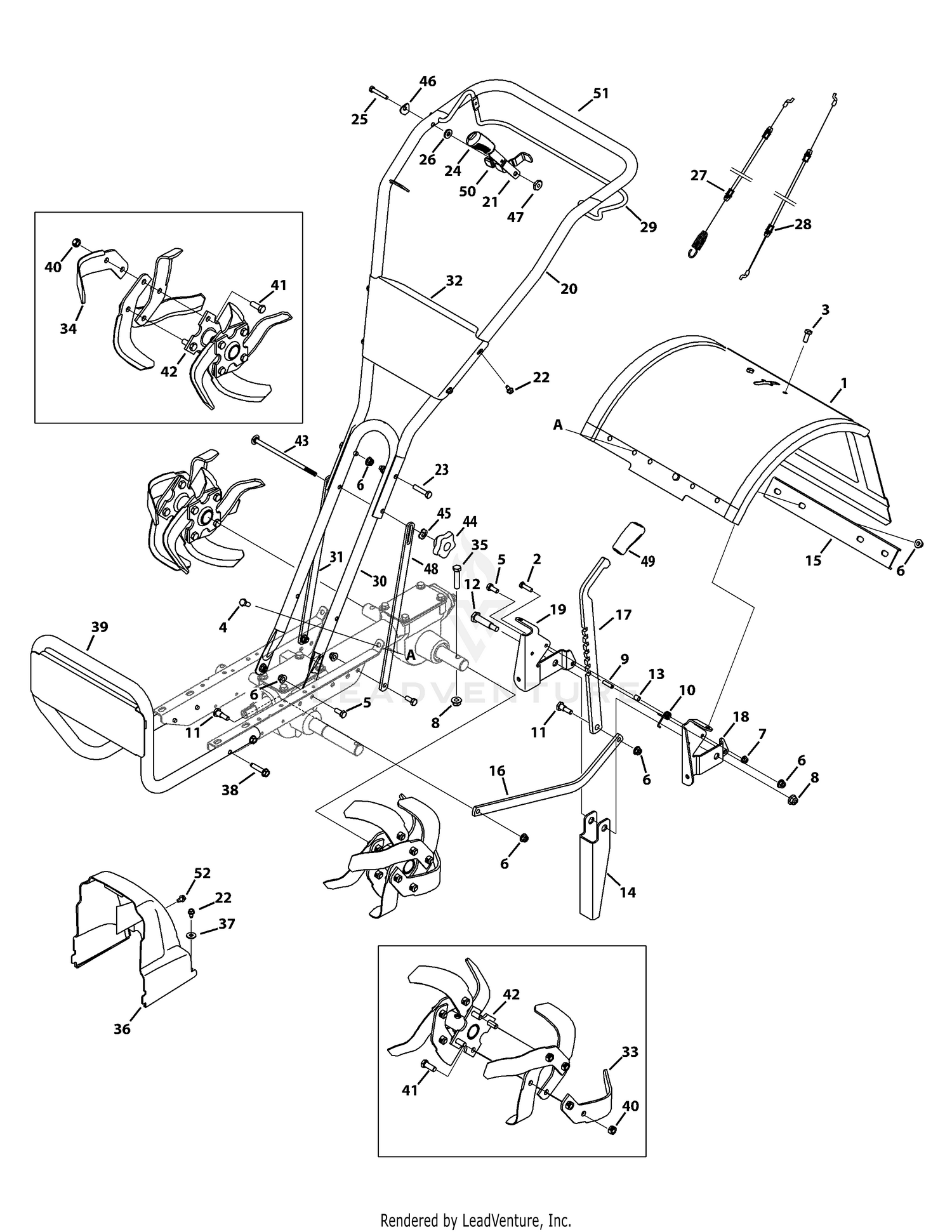

| Ref | Part Number | Description |
|---|
| 1 |
686-04077B-0638 |
Tine Shield Assembly Price: $171.74 |
| 2 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 3 |
710-0604A |
Screw, 5/16-18 x 0.625 Price: $3.96 |
| 4 |
710-1238A |
SCREW 5/16-18 x .875 GR5 HXFLG HD This part replaces 710-1238. Price: $3.74 |
| 5 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 6 |
712-04063 |
Flangelock Nut, 5/16-18 Price: $3.56 |
| 7 |
712-04064 |
Flangelock Nut, 1/4-20 Price: $3.64 |
| 8 |
712-04065 |
Flangelock Nut, 3/8-16 Price: $3.68 |
| 9 |
715-0108 |
Spring Pin, 1/4 DIA x 1.00 LG Price: $4.38 |
| 10 |
732-04320 |
Torsion Spring Price: $3.85 |
| 11 |
738-04320 |
Screw, Shoulder, 5/16-18 x .405 x .435 Price: $4.56 |
| 12 |
738-0533 |
SCREW:SHLDR:0.498X1.630:3/8-16 This part replaces 938-0533. Price: $7.42 |
| 13 |
750-05349 |
Spacer, Split, .350 x .268 x .375 Price: $3.50 |
| 14 |
786-04092-0638 |
Stop Reverse Arm Price: $24.18 |
| 15 |
786-04098-0638 |
Support Channel Bracket Price: $28.70 |
| 16 |
786-04104-0638 |
Depth Drag Bar Price: $32.17 |
| 17 |
786-04292A-0638 |
Depth Adjuster Bar Price: $58.80 |
| 18 |
786-04363-0638 |
LH Tail Bracket Price: $21.77 |
| 19 |
786-04364-0638 |
RH Tail Bracket Price: $21.77 |
| 20 |
649-04097A-0638 |
UPPER HANDLE ASSEMBLY (MTD RED) This part replaces 649-04097-0638. Price: $94.21 |
| 21 |
686-04135 |
REVERSE HANDLE ASSEMBLY This part replaces 686-04135-0638. Price: $19.56 |
| 22 |
710-0599 |
Screw, 1/4-20 x 0.500 Price: $3.86 |
| 23 |
710-0805A |
Hex Head Screw, 5/16-18 x 1.50 Price: $3.75 |
| 24 |
731-04735 |
BRAKE HANDLE GRIP Price: $17.99 |
| 25 |
710-3288 |
Hex Head Screw, 1/4-20 x 1.62 Price: $5.94 |
| 26 |
736-0176 |
Flat Washer .265 x .938 x .120 This part replaces 936-0176. Price: $3.95 |
| 27 |
946-04413A |
Forward Cable Price: $30.97 |
| 28 |
946-04414A |
Reverse Cable Price: $34.13 |
| 29 |
747-04789A-0637 |
Clutch Bail Price: $25.69 |
| 30 |
749-04742-0638 |
Lower Handle Price: $48.72 |
| 31 |
786-04433-0638 |
Support Handle Bracket Price: $7.71 |
| 32 |
786-04200-0638 |
Handle Panel Price: $24.75 |
| 35 |
710-0347 |
Hex Head Screw, 3/8-16 x 1.75 Price: $4.39 |
| 36 |
731-06529 |
Belt Cover This part replaces 731-06170. Price: $39.40 |
| 37 |
736-0173 |
Washer, Flat, .28 x .74 x .063 Price: $3.76 |
| 38 |
710-04605B |
HEX SCREW WASHER 5/16-18 x 1.5 This part replaces 710-04605A. Price: $6.01 |
| 39 |
686-04134-0638 |
Bumper Price: $50.56 |
| 40 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 912-3000. Price: $3.90 |
| 41 |
710-0514 |
Hex Head Screw, 3/8-16 x 1.00 Price: $3.78 |
| 42 |
686-05008-0637 |
TINE HOLDER (POWDER BLACK) This part replaces 686-04065-0637. Price: $77.57 |
| 43 |
710-05211 |
Carriage Bolt, 5/16-18 x 6.75 Price: $5.59 |
| 44 |
720-04072A |
Knob, 5/16-18 Price: $6.07 |
| 45 |
736-0170 |
SPECIAL WASHER Not Available This part replaces 936-0170. Price: |
| 46 |
736-0451 |
Saddle Washer This part replaces 936-0451. Price: $3.75 |
| 47 |
738-0440 |
Spacer, .375 x .165 Price: $5.45 |
| 48 |
786-04434-0638 |
Support Handle Bracket Price: $7.17 |
| 49 |
720-04163 |
Handle Grip Price: $8.03 |
| 50 |
920-04173 |
Reverse Handle Grip Price: $3.70 |
| 51 |
720-05023 |
Handle Grip Price: $26.08 |
