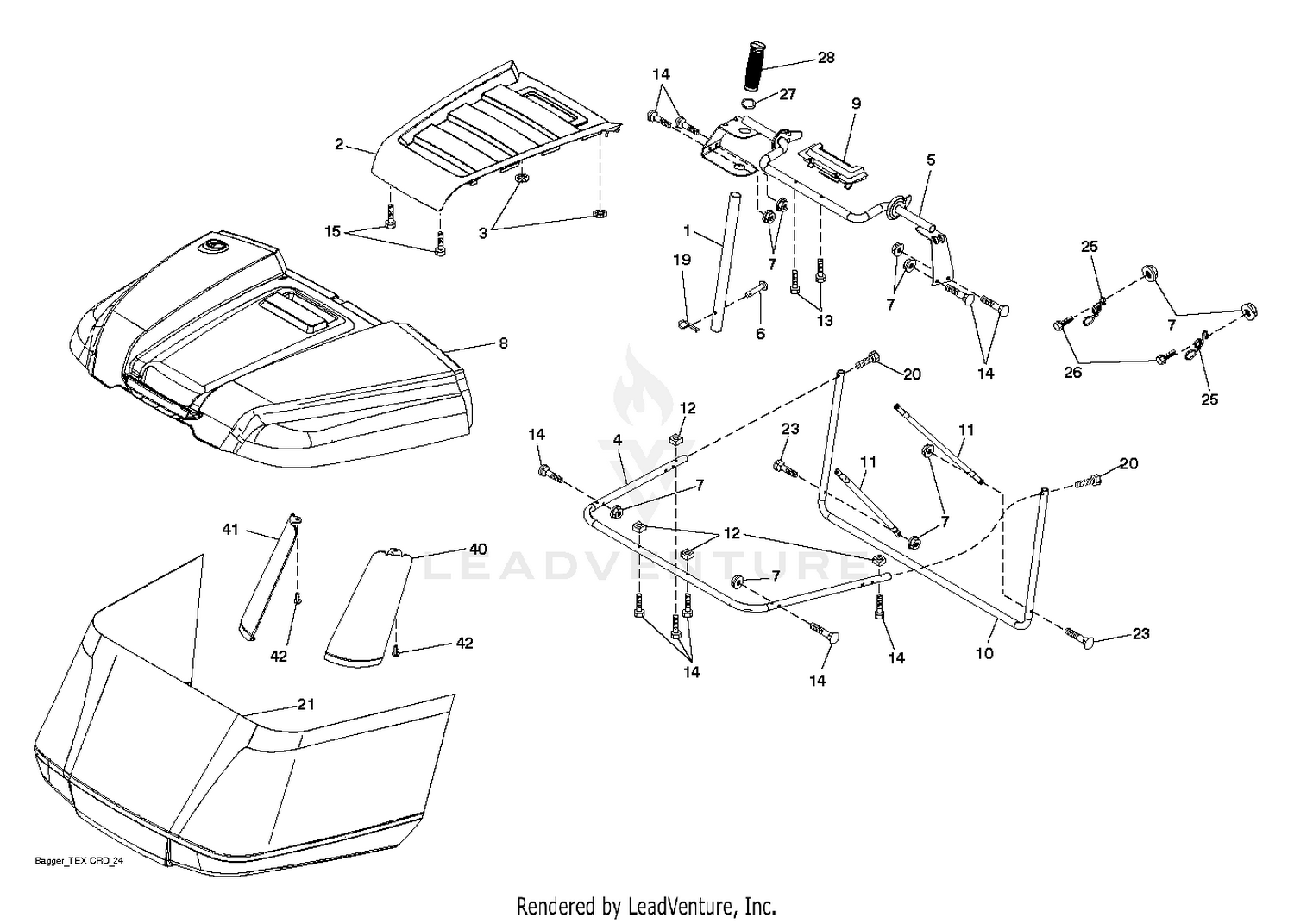

| Ref | Part Number | Description |
|---|
| 1 |
125-7247 |
CASE ASM Price: $631.77 |
| 1 |
531151701 |
SERVICE KIT TUBE TUBE.HANDLE.B This part replaces 532428610. Price: $14.99 |
| 2 |
532441358 |
APPLIQUE.TOP.BAG.SRD.ORANGE Price: $34.99 |
| 3 |
125-6944 |
SEAL-OIL Price: $31.03 |
| 3 |
583343001 |
NUT.PUSH.156 This part replaces 532413808. Price: $2.99 |
| 4 |
125-6936 |
FLANGE Price: $508.81 |
| 4 |
579785402 |
BAGGER SWAGE TUBE HANDLE ASSY This part replaces 532439612. Price: $44.99 |
| 5 |
125-6919 |
STUD Price: $6.42 |
| 5 |
583365901 |
FRAME.ASM.TOP.BAGGER.SRD This part replaces 532417632. Price: $89.99 |
| 6 |
125-6972 |
COVER-FILLER Price: $10.14 |
| 6 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 7 |
125-6977 |
COVER Price: $8.10 |
| 8 |
125-7107 |
PIPE Price: $8.10 |
| 8 |
583503801 |
SRD.BAGGER.TOP.SUB.ASM This part replaces 532441261. Price: $119.99 |
| 9 |
125-6909 |
O-RING Price: $2.55 |
| 9 |
583365801 |
INSERT.HANDLE.BAGGER.SRD This part replaces 532417629. Price: $22.99 |
| 10 |
125-6957 |
O-RING Price: $3.51 |
| 10 |
585384501 |
FRAME FRONT TUBE TEX CRD BLACK This part replaces 532436770. Price: $37.99 |
| 11 |
125-7174 |
WASHER-SEAL Price: $5.45 |
| 11 |
583511601 |
BRACE.SIDE.TUBE.TEX/CRD.BLACK This part replaces 532436771. Price: $11.99 |
| 12 |
125-7197 |
O-RING Price: $2.55 |
| 12 |
583391701 |
NUT.SQUARE.1/4 This part replaces 532421793. Price: $3.99 |
| 13 |
125-7214 |
BOLT Price: $3.77 |
| 13 |
583391201 |
SCREW.1/4X1.150.HXWSH This part replaces 532421780. Price: $2.99 |
| 14 |
125-7214 |
BOLT Price: $3.77 |
| 14 |
583392001 |
BOLT.SHOULDER.HX.WSH.1/4X1.150 This part replaces 532421800. Price: $6.99 |
| 15 |
125-7216 |
BOLT Price: $3.48 |
| 15 |
583392101 |
SCREW,#8.FLAT.HEAD.DRILL.TIP This part replaces 532421801. Price: $3.99 |
| 16 |
125-7221 |
BOLT Price: $4.09 |
| 17 |
125-7224 |
BOLT Price: $4.09 |
| 18 |
125-7229 |
NUT Price: $3.12 |
| 19 |
125-6950 |
COVER Price: $13.53 |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 20 |
125-7199 |
O-RING Price: $2.20 |
| 20 |
585368801 |
SCREW.HEXCAP.1/4-20X1.375(2 2) Price: $2.99 |
| 21 |
532438162 |
Price: Call Us |
| 23 |
872040410 |
BOLT Price: $3.99 |
| 25 |
583389801 |
SPRING.LATCH.BAGGER.SRD (3 2) This part replaces 532421614. Price: $3.99 |
| 26 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 27 |
583387201 |
GROMMET.RUBBER.SRD This part replaces 532421262. Price: $3.99 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $5.99 |
| 40 |
532439418 |
Price: Call Us |
| 41 |
532439435 |
Price: Call Us |
| 42 |
583548101 |
CHRISTMAS.TREE.CLIP This part replaces 532440428. Price: $2.99 |
