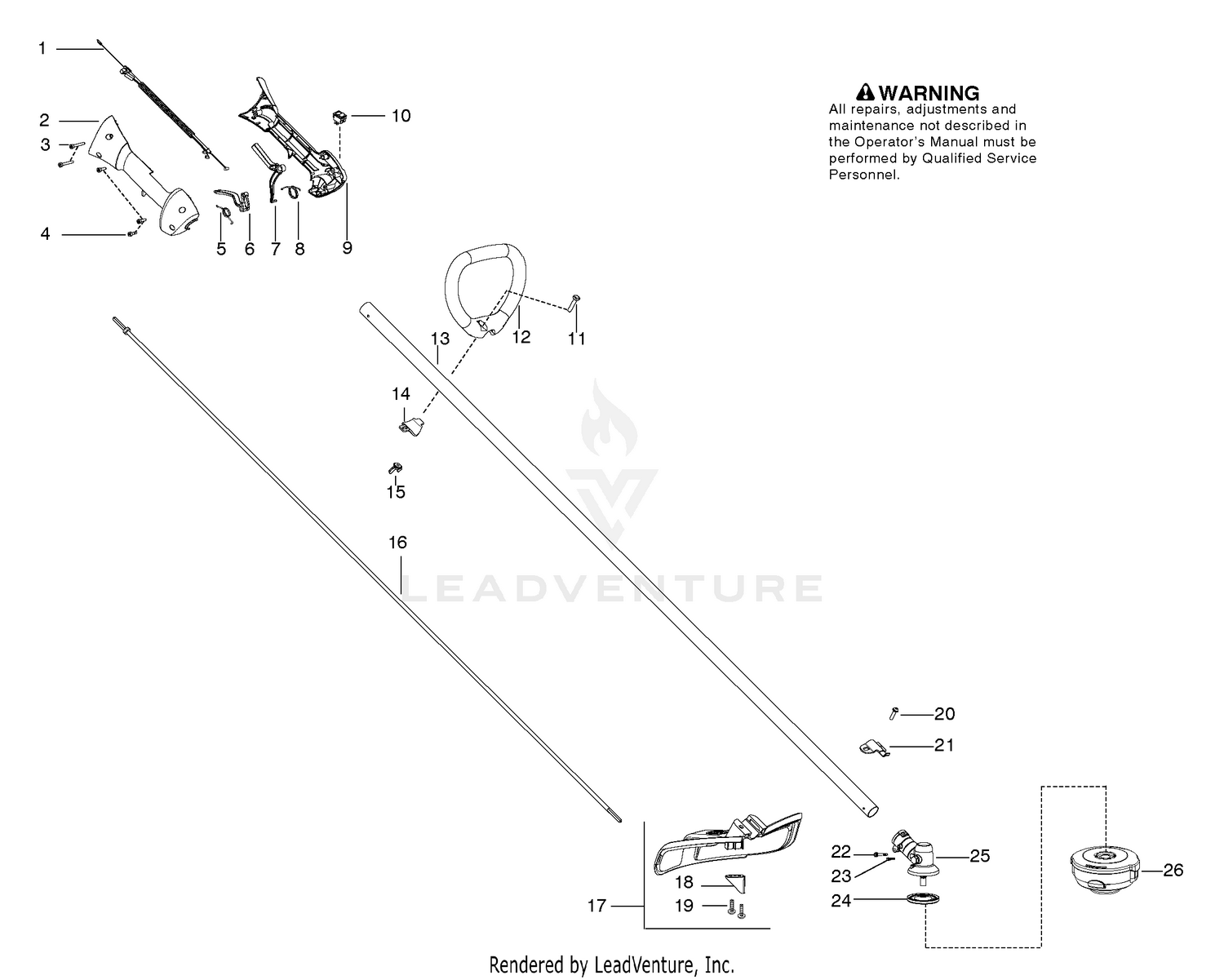

| Ref | Part Number | Description |
|---|
| 1 |
136-8446 |
KIT, CENTER PULL FRAME This part replaces 86-9820. Price: $340.89 |
| 1 |
545125301 |
ASSY-CABLE WIRE HARNESS This part replaces 530150561. Price: $19.99 |
| 2 |
3220-3 |
NUT-HJ Price: $0.28 |
| 2 |
530057855 |
THROTTLE HSG RH Price: $11.99 |
| 3 |
530016448 |
SCREW Price: $2.99 |
| 3 |
84-6560 |
DECAL-WARNING (JAPAN) Price: $18.28 |
| 4 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 8-7710. Price: $16.35 |
| 4 |
530016449 |
SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 5 |
530016454 |
SPRING TRIGGER Price: $4.99 |
| 6 |
545066001 |
TRIGGER THROTTLE This part replaces 530059807. Price: $5.99 |
| 7 |
530059804 |
THROTTLE LOCKOUT Price: $4.99 |
| 8 |
545045601 |
SPRING LOCKOUT Price: $4.99 |
| 8 |
62-2420-01 |
BAR ASM-LIFT, CTR ARM This part replaces 62-2420. Price: $70.22 |
| 9 |
530057856 |
THROTTLE HSG LH Price: $11.99 |
| 9 |
63-8750 |
PIN-PIVOT Price: $4.20 |
| 10 |
105-3823 |
HYD CYLINDER ASM This part replaces 83-7230. Price: $493.03 |
| 10 |
545049301 |
KIT SWITCH This part replaces 545030601. Price: $8.99 |
| 11 |
237-21 |
O-RING This part replaces 237-35. Price: $0.70 |
| 11 |
530015820 |
BOLT, TYPE 2 Price: $3.99 |
| 12 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 12 |
530150076 |
HANDLE ASSIST Price: $9.99 |
| 13 |
83-1680 |
HOSE-HYD Price: $39.99 |
| 14 |
237-78 |
O-RING Price: $3.85 |
| 14 |
530059185 |
CLAMP ASSIST HANDLE Price: $2.99 |
| 15 |
530091373 |
NUT-"D" HANDLE This part replaces 530016152. Price: $3.99 |
| 15 |
88-9700 |
HOSE-HYD Price: $64.30 |
| 16 |
545007507 |
FLEXSHAFT 57" Price: $24.99 |
| 17 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 18 |
530052286 |
Limiter-Line Price: $0.68 |
| 18 |
57-7650 |
SPRING-TORSION Price: $11.81 |
| 19 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 19 |
530015814 |
SCREW Price: $0.17 |
| 20 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 20 |
530015771 |
SCREW 1/4-20 X 7/8 (TAP Price: $3.99 |
| 21 |
530057554 |
BRACKET SHIELD STRAIGHT SHAFT Price: $4.99 |
| 21 |
68-5380 |
CENTER LIFT ARM ASM Price: $205.86 |
| 22 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 22 |
530016014 |
SCREW - CARB. ADAPTOR Price: $2.99 |
| 23 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 23 |
530016301 |
SCREW Price: $2.99 |
| 24 |
5-1226 |
WASHER Price: $3.90 |
| 24 |
530150294 |
ASSY DUST CUP Price: $11.99 |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 25 |
530096295 |
ASSY GEARBOX Price: $34.99 |
| 26 |
131-4307 |
PIN This part replaces 68-5560. Price: $15.61 |
| 26 |
537338310 |
TRIMMER HEAD T25 This part replaces 537338302. Price: $27.99 |
| 27 |
115-3260 |
KIT-SERVICE, PIN This part replaces 27-2550. Price: $33.44 |
| 28 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 29 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 30 |
322-1 |
SCREW-HH Price: $0.22 |
| 31 |
27-2540 |
EUB SPACER Price: $20.87 |
| 32 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 33 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 34 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 35 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 36 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 37 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 38 |
3-1506 |
BUSHING Price: $2.42 |
| 39 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 40 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 41 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 42 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 43 |
133-2337 |
ROLLER ASM This part replaces 52-2720. Price: $176.14 |
| 44 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 45 |
133-2378 |
BEARING This part replaces 251-141. Price: $23.28 |
| 46 |
3253-4 |
WASHER-LOCK Price: $0.25 |
