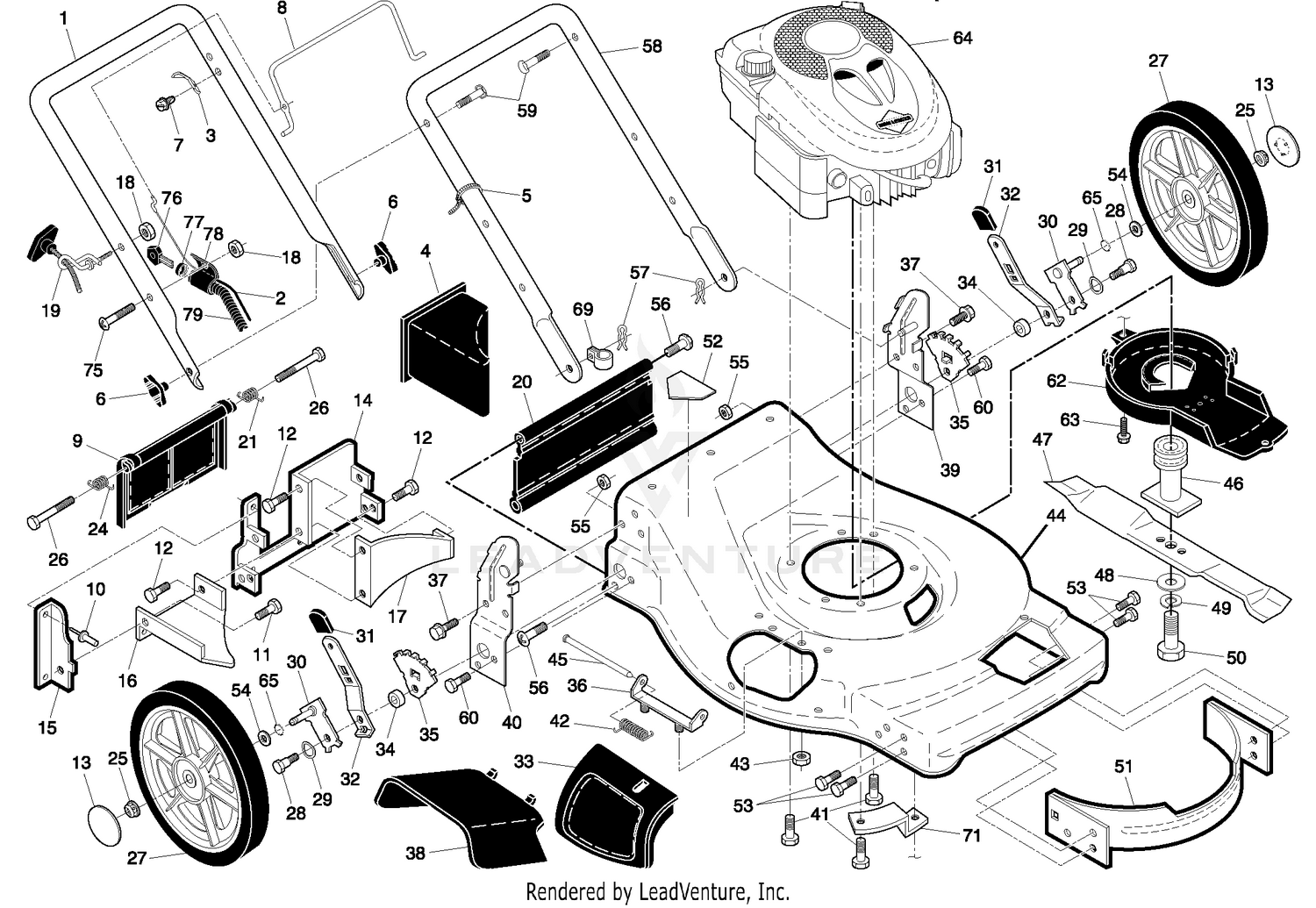

| Ref | Part Number | Description |
|---|
| 1 |
194200X479 |
Upper Handle Price: Call Us |
| 1 |
59-7280 |
PAD-PEDAL, TRACTION Price: $12.02 |
| 2 |
401994 |
Cable, Operator Presence Price: Call Us |
| 2 |
58-6510 |
PAD-FOOTREST, RH Price: $28.14 |
| 3 |
62-6440 |
PAD-FOOT Price: $12.02 |
| 3 |
850733X004 |
Bracket, Upstop Price: Call Us |
| 4 |
166649 |
Mulcher Plug Price: Call Us |
| 4 |
58-7390-03 |
FOOTREST Price: $226.43 |
| 5 |
58-6630 |
PAD-FLOOR, CENTER Price: $48.66 |
| 5 |
664-26 |
Wire Tie Price: Call Us |
| 6 |
189713X428 |
Handle Knob Price: Call Us |
| 6 |
93-9409 |
DECAL-LATCH Price: $10.39 |
| 7 |
33113-016 |
SCREW-HH Price: $0.34 |
| 7 |
750634 |
Screw Price: Call Us |
| 8 |
194199X421 |
Control Bar Price: Call Us |
| 8 |
58-6620 |
PAD-FOOTREST, LH Price: $28.14 |
| 9 |
401813X428 |
Rear Door Assembly Price: Call Us |
| 10 |
128415 |
Pop Rivet Price: Call Us |
| 11 |
150050 |
Screw, Self-Tapping #10-24 x 5/8 Price: Call Us |
| 12 |
54583 |
Screw, Hex Hex Head, Sems 1/4-20 x 1/2 Price: Call Us |
| 13 |
407794X421 |
Hubcap Price: Call Us |
| 14 |
195622X479 |
Back Plate Price: Call Us |
| 15 |
410545X479 |
Side Baffle Price: Call Us |
| 16 |
176655X479 |
Discharge Baffle Price: Call Us |
| 17 |
140661X479 |
Rear Baffle Price: Call Us |
| 18 |
132004 |
Keps Locknut 1/4-20 Price: Call Us |
| 19 |
194788 |
Rope Guide Price: Call Us |
| 20 |
413160 |
Rear Skirt Price: Call Us |
| 21 |
405421 |
Spring, Rear Door, LH Price: Call Us |
| 24 |
405423 |
Spring, Rear Door, RH Price: Call Us |
| 25 |
409149 |
Nut, Hex, Flanged Price: Call Us |
| 26 |
184193 |
Bolt, Rear Door Price: Call Us |
| 27 |
408852X421 |
Wheel & Tire Assembly, Rear Price: Call Us |
| 28 |
142748 |
Bolt, Shoulder 3/8-16 x 1 Price: Call Us |
| 29 |
401630 |
Washer, Curved, Cylindrical Price: Call Us |
| 30 |
401180X004 |
Axle Arm Assembly Price: Call Us |
| 31 |
701037X421 |
Selector Knob Price: Call Us |
| 32 |
401626X004 |
Selector Spring Price: Call Us |
| 33 |
189917X428 |
Mulcher Door Price: Call Us |
| 34 |
401629 |
Spacer Price: Call Us |
| 35 |
700325X005 |
Wheel Adjusting Bracket Price: Call Us |
| 36 |
175735 |
Hinge Bracket Assembly Price: Call Us |
| 37 |
150078 |
Screw, Sems, Thread Cutting 5/16-18 x 3/4 Price: Call Us |
| 38 |
402574X428 |
Discharge Deflector Price: Call Us |
| 39 |
195915X479 |
Handle Bracket Assembly, LH Price: Call Us |
| 40 |
195914X479 |
Handle Bracket Assembly, RH Price: Call Us |
| 41 |
150406 |
Screw, Hex Head, Threaded, Rolled 3/8-16 x 1-1/8 Price: Call Us |
| 42 |
193000 |
Spring, Torsion Price: Call Us |
| 43 |
73800400 |
Nut, Hex, Nylock Price: Call Us |
| 45 |
175650 |
Rod, Hinge Price: Call Us |
| 46 |
189179 |
Blade Adapter / Pulley Price: Call Us |
| 47 |
406713 |
Blade, 22" Price: Call Us |
| 48 |
851074 |
Washer, Hardened Price: Call Us |
| 49 |
850263 |
Washer, Helical Price: Call Us |
| 50 |
851084 |
Screw, Machine, Hex Head 3/8-24 x 1-3/8 Grade 8 Price: Call Us |
| 52 |
404763 |
Danger Decal Price: Call Us |
| 53 |
17600406 |
Screw, Serrated, TT 1/4-20 Price: Call Us |
| 54 |
88348 |
Washer, Flat Price: Call Us |
| 55 |
751592 |
Nut, Hex 3/8-16 Price: Call Us |
| 56 |
88652 |
Hinge Screw 1/4-20 x 1-1/4 Price: Call Us |
| 57 |
51793 |
Hairpin Cotter Price: Call Us |
| 58 |
400512X479 |
Lower Handle Price: Call Us |
| 59 |
191574 |
Handle Bolt Price: Call Us |
| 60 |
74760612 |
Bolt, Hex Head 3/8-16 x 3/4 Price: Call Us |
| 62 |
405843 |
Debris Shield Price: Call Us |
| 63 |
192325 |
Screw, Debris Shield Price: Call Us |
| 65 |
197480 |
O-Ring Price: Call Us |
| 69 |
197991 |
Clip, Cable Price: Call Us |
| 71 |
188839X004 |
Mounting Bracket, Debris Shield Price: Call Us |
| 75 |
186159 |
Screw Price: Call Us |
| 76 |
180331 |
Key Price: Call Us |
| 77 |
194848 |
Nut, Cap Price: Call Us |
| 78 |
189686 |
Key Start Switch Price: Call Us |
| 79 |
189685 |
Wiring Harness Price: Call Us |
| 79 |
193733 |
Operator's Manual, English Price: Call Us |
| 79 |
193736 |
Operator's Manual, French Price: Call Us |
