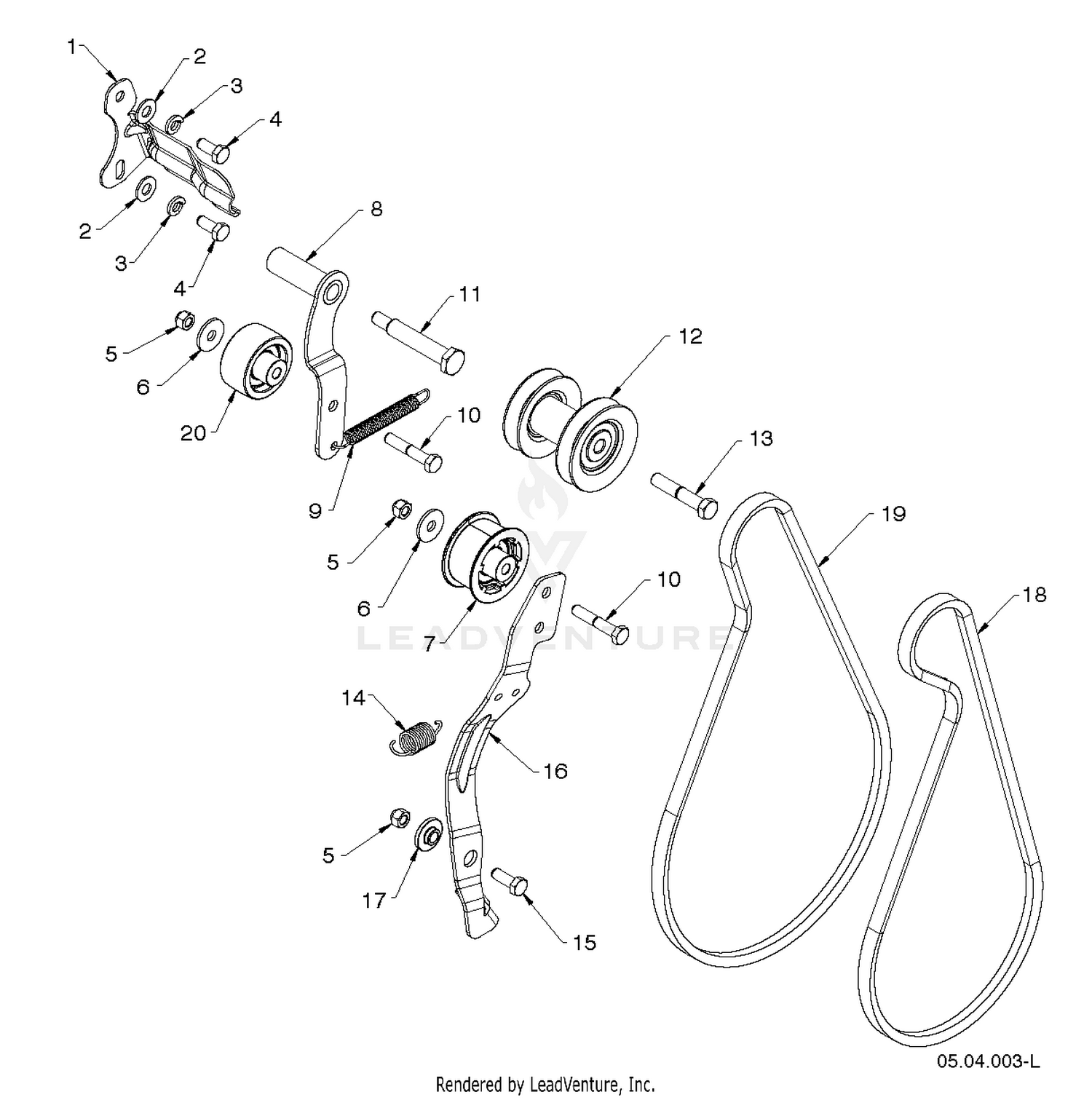

| Ref | Part Number | Description |
|---|
| 1 |
588492802 |
BELT KEEPER BRACKET Price: $5.99 |
| 2 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 3 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 4 |
874610512 |
SCREW 5/16-24 X .75 GR5 Price: $2.99 |
| 5 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 6 |
532059289 |
STEEL WASHER Price: $3.99 |
| 7 |
581141402 |
PULLEYIDLER.2.0.W/SPACER.CZ This part replaces 581141401. Price: $9.99 |
| 8 |
593192502 |
ARM DRIVE IDLER CLEAR ZINC PLA This part replaces 581338203. Price: $9.99 |
| 9 |
580753001 |
SPRING RETURN IDLER ARM Price: $4.99 |
| 10 |
874760528 |
BOLT, HEX 5/16-18X1-3/4 Price: $3.99 |
| 12 |
587893703 |
PULLEY.ASM.IMPELLER/DRIVE Price: $27.99 |
| 13 |
532191760 |
BOLT.HD.HEAD.3/8-24X2.50 (2 2) Price: $4.99 |
| 14 |
587031201 |
SPRING RETURN, IDLER ARM, IMPE Price: $4.99 |
| 15 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 16 |
580831106 |
ARM.IDLER.AUTO-PH.676 This part replaces 580831104. Price: $7.99 |
| 17 |
587343701 |
BUSHING.BRAKE.ARM Price: $5.99 |
| 18 |
584216102 |
BELT.DRIVE.SNOW.DUAL This part replaces 587209001. Price: $10.00 |
| 19 |
585829901 |
RP_BELT.DRIVE.HI-CRANK This part replaces 585829902. Price: $19.99 |
| 20 |
586880202 |
PULLEY.IDLER.FLNGLESS.W/SPACER This part replaces 586880201. Price: $9.99 |
