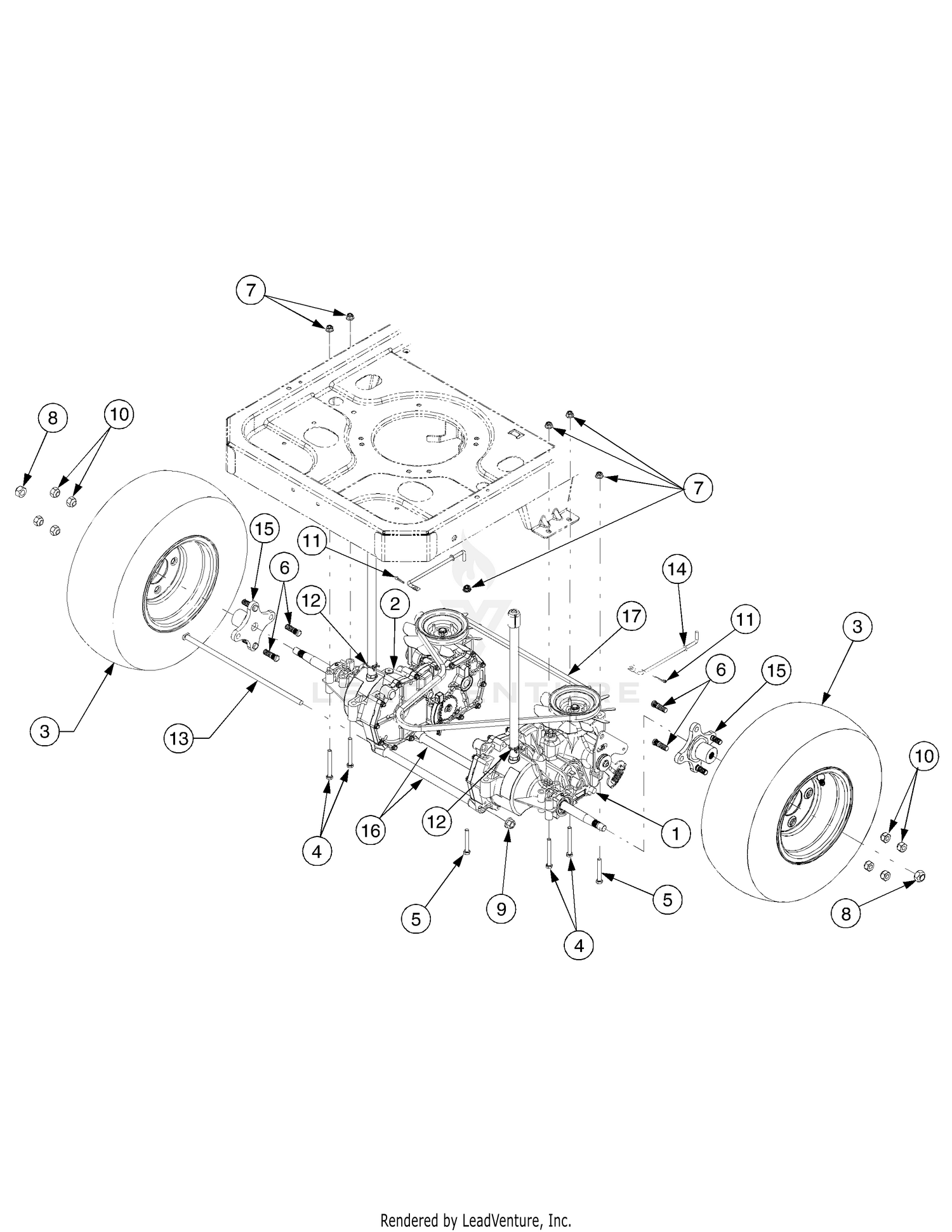

| Ref | Part Number | Description |
|---|
| 3 |
634-04128-0911 |
Wheel Assembly, 18 x 9.5-8 (50" Deck) This part replaces 634-04171. Price: $251.41 |
| 4 |
710-0176 |
Screw, Hex Cap, 5/16-18 x 2.75 GR5 Price: $3.89 |
| 5 |
710-0395 |
Screw, Hex Cap, 5/16-18 x 2.25 GR5 Price: $4.08 |
| 6 |
710-0852 |
Stud, Rib Neck, 7/16-14 x 1.6 Price: $5.65 |
| 7 |
712-04063 |
Nut, Hx Insert Flange Lck, 5/16-18 Price: $3.56 |
| 8 |
712-04088 |
Nut, Hex Lock, 9/16-18 GRC Price: $5.94 |
| 9 |
712-0459 |
Nut, Hex Flange Lock, 7/16-20 GrB Price: $4.39 |
| 10 |
712-3050 |
Nut, Lug, 7/16-14 Price: $9.17 |
| 11 |
714-0507 |
Pin, Cotter, 3/32 x .75 Price: $3.93 |
| 12 |
726-04059 |
HOSE CLAMP .75 Not Available Price: |
| 13 |
738-04192B |
Rod, .405 x 14.0 This part replaces 738-04192. Price: $18.87 |
| 14 |
747-04217C-0637 |
Bypass Rod This part replaces 747-04217B. Price: $19.05 |
| 15 |
748-04055-0637 |
REAR WHEEL HUB (POWDER BLACK) Not Available This part replaces 748-04055. Price: |
| 16 |
750-04561A |
SUPPORT TUBE This part replaces 750-04561. Price: $23.66 |
| 17 |
954-04043B |
TRANSMISSION DRIVE BELT A x 57.3 This part replaces 754-04043. Price: $39.91 |
