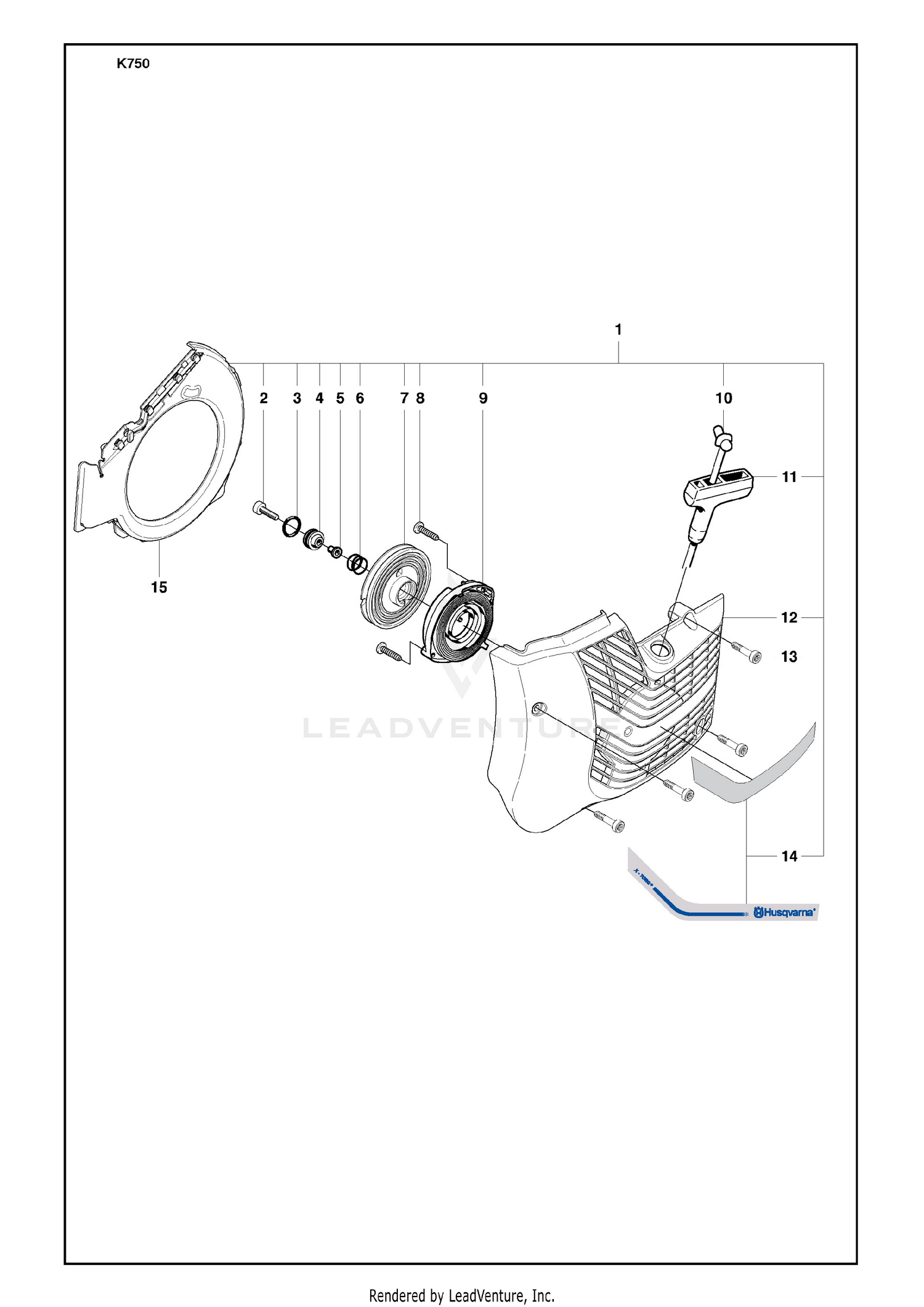

Starter
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 93-4666 | REFER TO PB#915 Price: Call Us |
| 2 | 510269222 | SCREW 1TXSCT Price: $3.99 |
| 2 | 93-4665 | BUSHING-FLANGE Price: $10.72 |
| 3 | 33019-00 | NUT-HEX Price: $3.87 |
| 3 | 740431300 | O-RING Price: $4.99 |
| 4 | 302-33 | FITTING-GREASE Price: $2.31 |
| 4 | 510000801 | SEALING HOLDER This part replaces 506251401. Price: $3.99 |
| 5 | 506263101 | SLEEVE Price: $4.99 |
| 5 | 95-5699 | CYLINDER-HYD This part replaces 93-4640. Price: $817.30 |
| 6 | 506253001 | SPRING Price: $3.99 |
| 6 | 93-4639 | BUSHING Price: $10.11 |
| 7 | 506258103 | STARTER PULLEY This part replaces 506258102. Price: $19.99 |
| 7 | 93-4586 | DISCONTINUED Price: Call Us |
| 8 | 33104-016 | SCREW-HHF Price: $0.97 |
| 8 | 503212810 | SCREW Price: $2.99 |
| 9 | 506258901 | RETURN SPRING Price: $22.99 |
| 9 | 93-4630 | PIN Price: $99.80 |
| 10 | 33023-00 | NUT-LOCK Price: $0.25 |
| 10 | 506335615 | STARTER ROPE Price: $9.99 |
| 11 | 33026-00 | NUT-HEX Price: $1.02 |
| 11 | 584257903 | Starters This part replaces 503127901. Price: $4.99 |
| 12 | 33116-150 | SCREW-HH Price: $6.24 |
| 12 | 506369203 | STARTER COVER Price: $54.99 |
| 13 | 33119-160 | SCREW-HH Price: $10.86 |
| 13 | 503215321 | SCREW Price: $3.99 |
| 14 | 33103-020 | SCREW-HHF Price: $2.16 |
| 14 | 544890802 | LABEL Price: $11.99 |
| 16 | 93-7037 | SWITCH Price: $265.78 |
| 17 | 93-5434 | BRACKET - SWITCH *B Price: $13.27 |
| 18 | 32149-7 | NUT-KEPS Price: $0.27 |
