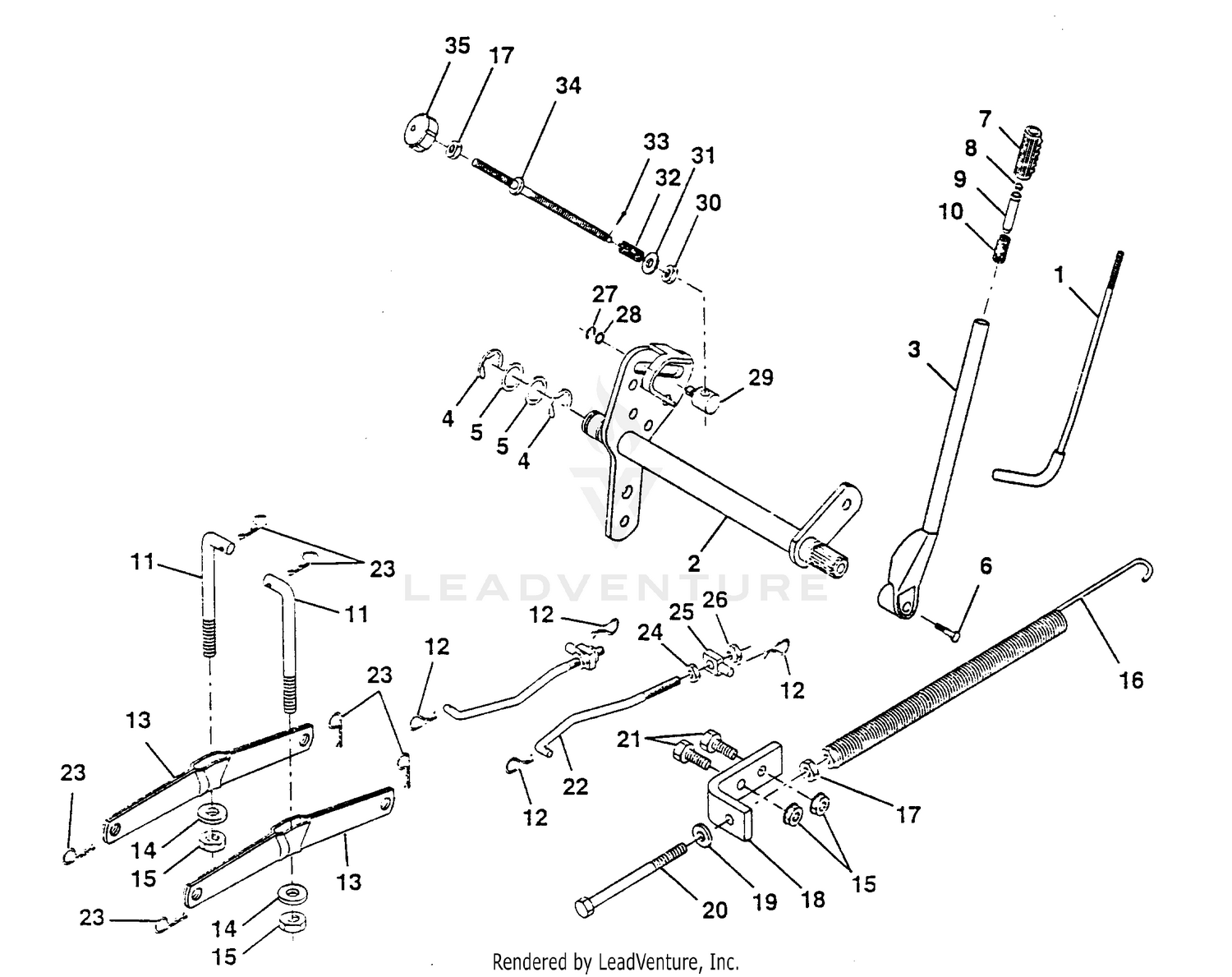

| Ref | Part Number | Description |
|---|
| 1 |
532121006 |
Rod Asm., Lever Price: $19.99 |
| 1 |
82-9250 |
STUD-THREADED Price: $10.57 |
| 2 |
532137295 |
Shaft Asm., Lift Vgt Price: $65.71 |
| 2 |
60-2000 |
PIN Price: $1.13 |
| 3 |
532123096 |
LIFT LEVER This part replaces 532121002. Price: $71.83 |
| 3 |
60-1750-03 |
LEVER-LATCHING, RH Price: $94.34 |
| 4 |
60-1990 |
BUSHING Price: $14.57 |
| 4 |
812000022 |
E-Ring Truarc #5133-87 Price: $3.99 |
| 5 |
47-7010 |
BUSHING-RUBBER Price: $122.81 |
| 5 |
819292016 |
Washer 29/32 x 1-1/4 x 16 Ga. Price: $3.99 |
| 6 |
60-1820 |
SHAFT-PIVOT, LATCH Price: $134.64 |
| 6 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874780624. Price: $3.99 |
| 7 |
532125631 |
GRIP, HANDLE This part replaces 532109413. Price: $3.99 |
| 7 |
74-2920-03 |
CARRIER-FRONT Price: $2,618.36 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 8 |
60-1780-03 |
LEVER-LATCHING, LH Price: $94.34 |
| 9 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 9 |
82-9370 |
PAD-STEP, FRONT Price: $19.69 |
| 10 |
32121-84 |
PIN-SPIRAL Price: $1.29 |
| 10 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 11 |
532145543 |
Link Lift This part replaces 532142369. Price: $8.99 |
| 11 |
60-0670 |
SPRING Price: $19.50 |
| 12 |
532003146 |
SPRING RETAINER This part replaces 532124660. Price: $1.99 |
| 13 |
532139868 |
Arm Suspension Rear This part replaces 532139867. Price: $11.99 |
| 13 |
82-9360 |
ROD-LATCH Price: $31.36 |
| 14 |
532169865 |
BEARING.PIVOT.LIFT This part replaces 532140302. Price: $3.99 |
| 14 |
58-2720 |
PIN Price: $49.81 |
| 15 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 15 |
93-9400 |
DECAL-DANGER Price: $49.59 |
| 16 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 16 |
532123994 |
SPRING This part replaces 532124687. Price: $57.46 |
| 17 |
60-0090 |
PIN-PIVOT Price: $93.25 |
| 17 |
873220600 |
Nut, Hex 3/8-16 This part replaces 873350600. Price: $3.99 |
| 18 |
322-2 |
SCREW-HH Price: $0.69 |
| 18 |
532143363 |
Bracket, Spring Assist Price: $3.99 |
| 19 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 19 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: $2.99 |
| 20 |
532005328 |
Bolt, Adjust Spring Assist Price: $2.99 |
| 20 |
60-0190 |
STRIP Price: $36.98 |
| 21 |
58-6520 |
DECAL-GREASE Price: $2.57 |
| 21 |
874780616 |
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 This part replaces 874760616. Price: $3.99 |
| 22 |
325-2 |
SCREW-HH Price: $1.02 |
| 22 |
532127218 |
Link, Front Price: $9.99 |
| 23 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 23 |
532085902 |
RETAINER SPRING This part replaces 532124670. Price: $1.99 |
| 24 |
873350800 |
Nut, Jam Hex 1/2-13 Unc Price: $1.99 |
| 25 |
532175689 |
Trunnion Blk Zinc This part replaces 532130171. Price: $2.99 |
| 26 |
539101331 |
NUT.1/2C.NYLOC This part replaces 873800800. Price: $1.99 |
| 27 |
812000037 |
Ring, Klip #T5304-37 Price: $3.99 |
| 28 |
819151216 |
Washer 15/32 x 3/4 x 16 Ga. Price: Call Us |
| 29 |
532110810 |
Trunnion, Dp Stop Dbl Thds Plt Price: $13.99 |
| 30 |
532110807 |
Nut, Special Price: $3.99 |
| 31 |
819131016 |
Washer 13/32 x 5/8 x 16 Ga. Price: $3.99 |
| 32 |
532137150 |
Spring, Compression Inf Hgt Price: $3.99 |
| 33 |
532003145 |
COTTER PIN This part replaces 876020308. Price: $1.40 |
| 34 |
532137167 |
Rod, Adj Lift Price: $4.99 |
