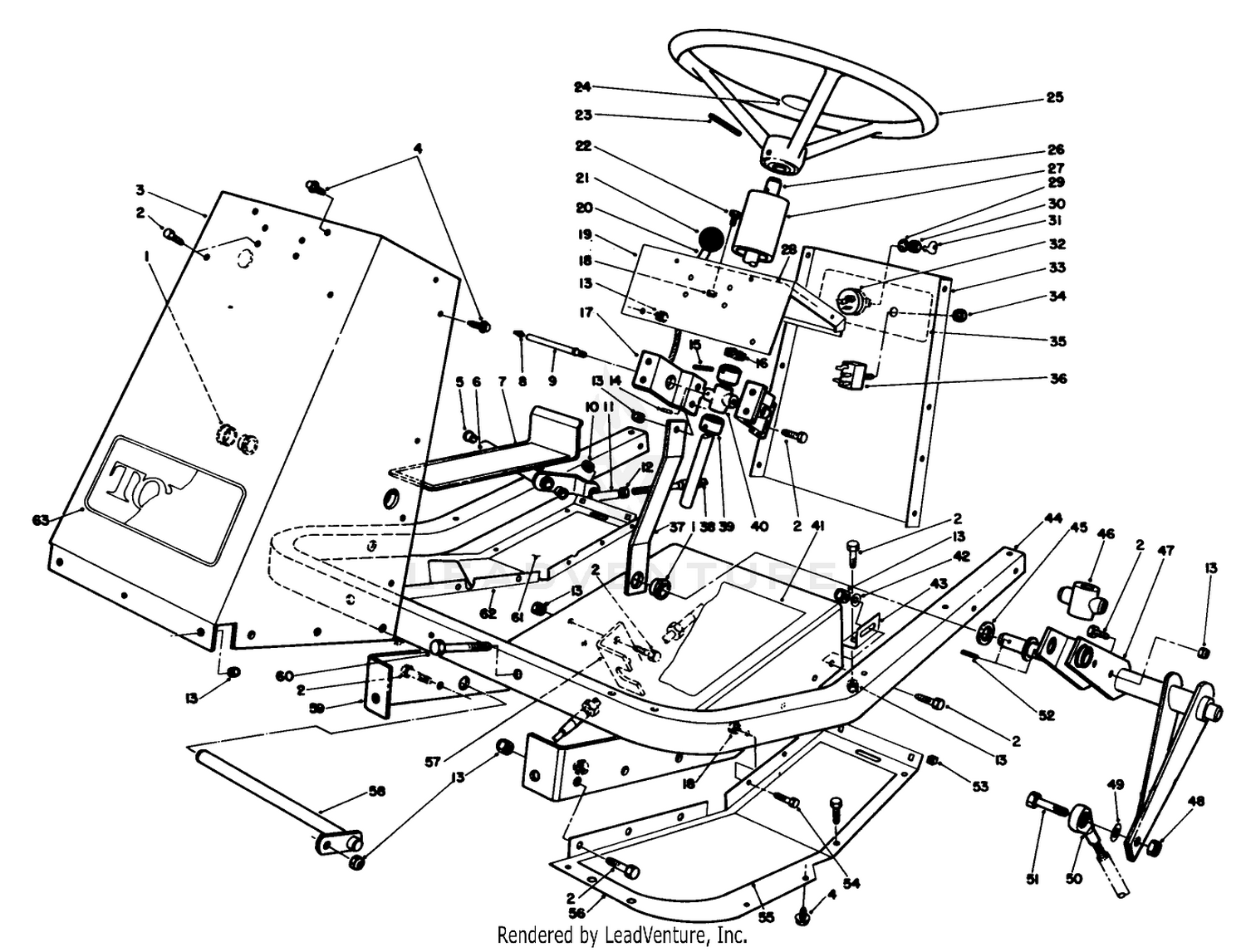

| Ref | Part Number | Description |
|---|
| 1 |
27-9080 |
BEARING-FLANGE Price: $3.39 |
| 2 |
322-4 |
SCREW-HH Price: $0.35 |
| 3 |
54-1900-01 |
FRONT TOWER This part replaces 54-1900. Price: $260.77 |
| 4 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 5 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 6 |
59-1580 |
Traction Pedal (Incl. Ref. #5) Price: Call Us |
| 7 |
54-2280 |
PAD Price: Call Us |
| 8 |
302-22 |
FITTING-GREASE Price: $1.30 |
| 9 |
59-1610 |
TUBE ZERK Price: $11.65 |
| 10 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 11 |
2411-34 |
JOINT-BALL Price: $29.99 |
| 12 |
3220-1 |
NUT-JAM Price: $0.99 |
| 13 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 15 |
32121-31 |
PIN-SPRING Price: $0.26 |
| 16 |
21-9260 |
COVER-DUST Price: $8.19 |
| 17 |
54-1950 |
BRG SUPT BRKT Price: $43.94 |
| 18 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 19 |
54-1000-01 |
TOWER TOP This part replaces 54-1000. Price: $71.60 |
| 20 |
54-1450 |
CONTROL-CHOKE,THROTTLE Price: Call Us |
| 21 |
233-35 |
KNOB Price: $8.06 |
| 22 |
321-2 |
SCREW-HH Price: $2.79 |
| 23 |
32121-10 |
PIN-ROLL Price: $6.99 |
| 24 |
24-2090 |
STEERING WHEEL CAP Price: $30.55 |
| 25 |
9547 |
WASHER-THRUST This part replaces 25-6260. Price: $5.69 |
| 26 |
62-6780 |
STEERING SHAFT This part replaces 54-1420. Price: $261.37 |
| 27 |
47-1980 |
STRG. SHAFT COVER Price: $27.94 |
| 28 |
54-0860 |
THROTTLE DECAL Price: Call Us |
| 31 |
62-7770 |
KEY-IGNITION This part replaces 218-412. Price: $4.39 |
| 32 |
27-2360 |
SWITCH Price: $46.56 |
| 33 |
54-1960 |
REAR TOWER PANEL *R Price: Call Us |
| 34 |
3218-19 |
NUT-HJ This part replaces 218-500. Price: $0.54 |
| 35 |
54-0870 |
SWITCH DECAL Price: Call Us |
| 36 |
37-2610 |
DISCONTINUED Price: Call Us |
| 37 |
54-1340-03 |
STEERING LINK This part replaces 54-1340. Price: $36.07 |
| 38 |
54-2640 |
TRACT CONT.CABLE Price: Call Us |
| 39 |
28-3940 |
STRG SHAFT COLLAR Price: $52.89 |
| 40 |
60-9050 |
BRG STEERING SHAFT Price: $51.80 |
| 41 |
54-0880 |
TUNNEL DECAL Price: Call Us |
| 42 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 43 |
54-1440 |
TUNNEL BRKT Price: $10.92 |
| 44 |
60-9140-01 |
FOOTREST FRAME This part replaces 60-9140. Price: $376.06 |
| 45 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 46 |
54-2630 |
STEER.SHAFT FOLLOWER Price: $53.80 |
| 47 |
54-2040 |
Follower Lever Price: Call Us |
| 48 |
32152-9 |
NUT-HEX Price: $7.99 |
| 49 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 50 |
251-304 |
BALL JOINT LH Price: $51.06 |
| 51 |
324-7 |
SCREW-HH Price: $1.79 |
| 52 |
32121-77 |
PIN-ROLL Price: $1.29 |
| 53 |
32115-5 |
NUT-RETAINED Price: $4.30 |
| 54 |
321-4 |
SCREW-HH Price: $0.99 |
| 55 |
54-2260 |
FOOT REST PAD LH Price: Call Us |
| 56 |
54-1470-01 |
LH FOOTREST This part replaces 54-1470. Price: $85.13 |
| 57 |
54-1770 |
TRACT CABLE BRKT Price: Call Us |
| 58 |
59-1550 |
PEDAL.SHAFT WA Price: $55.26 |
| 59 |
60-9150-01 |
TUNNEL This part replaces 60-9150. Price: $432.16 |
| 60 |
322-10 |
SCREW-HH Price: $0.70 |
| 61 |
54-2270 |
FOOT REST PAD RH Price: $23.93 |
| 62 |
60-9160 |
Footrest-R.H. Price: Call Us |
