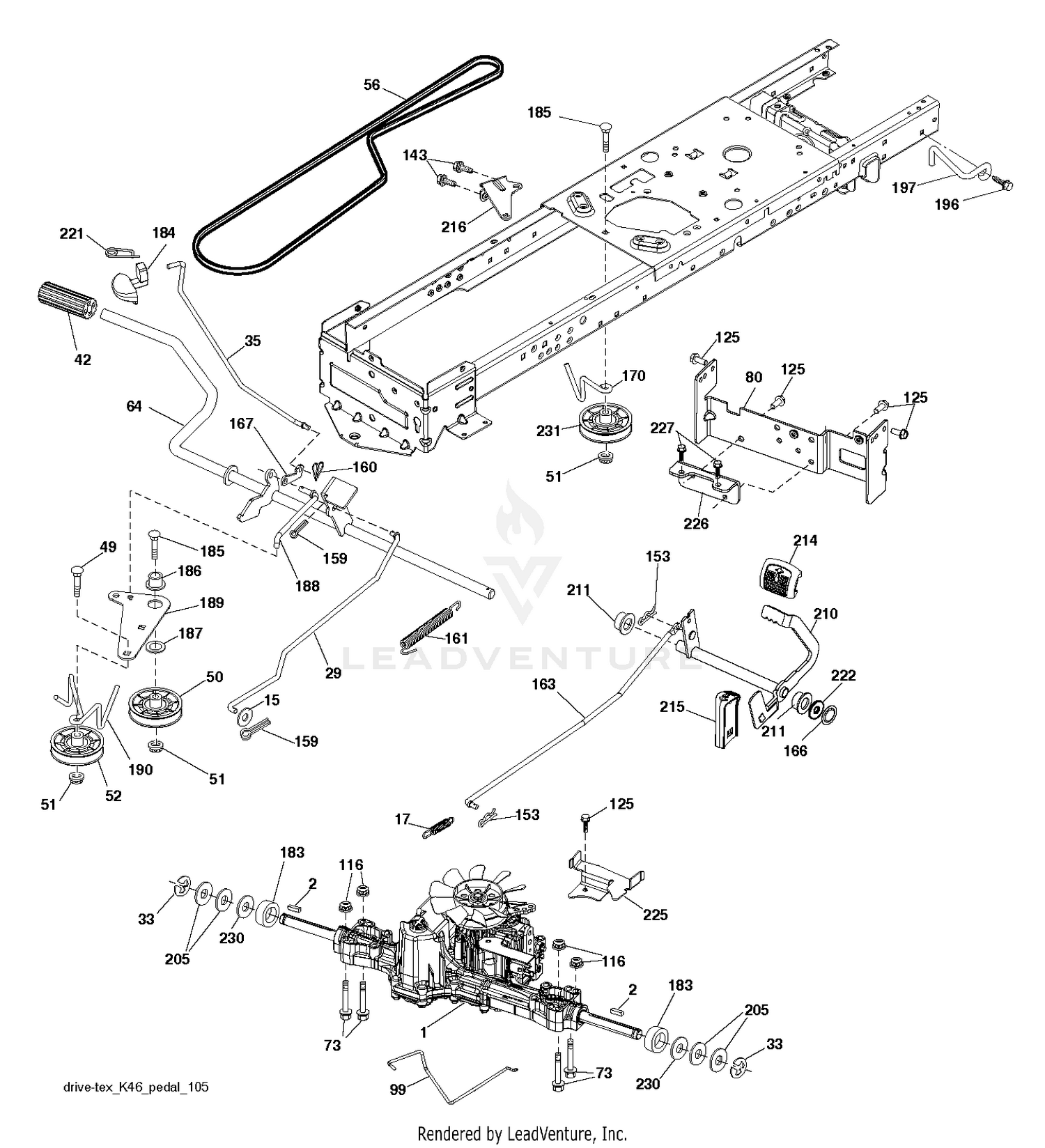

| Ref | Part Number | Description |
|---|
| 1 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 2 |
94-8197 |
TUBE-PIVOT Price: $19.37 |
| 3 |
33113-030 |
SCREW-HH Price: $0.54 |
| 4 |
140-6248 |
DAMPER This part replaces 76-8870. Price: $159.54 |
| 5 |
94-1312 |
SPACER-PIVOT Price: $6.97 |
| 6 |
94-3488-03 |
LEVER-PUMP This part replaces 94-3488. Price: $48.64 |
| 7 |
88-7200 |
WASHER-FLAT Price: $2.51 |
| 8 |
3210-6 |
SCREW-HH Price: $1.76 |
| 9 |
94-9603 |
CABLE SUPPORT Price: $151.76 |
| 10 |
94-9609 |
BUSHING-STRAIGHT Price: $6.08 |
| 11 |
94-4527 |
ARM-NEUTRAL Price: $145.11 |
| 12 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 13 |
93-2111 |
STUD-TRACTION Price: $20.29 |
| 14 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 15 |
75-5470 |
SPACER-BEARING Price: $3.06 |
| 16 |
251-259 |
BEARING-BALL Price: $13.67 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 17 |
94-1369 |
SPRING-EXTENSION Price: $12.72 |
| 18 |
18-6380 |
PIN-ADJUSTMENT, STEERING Price: $12.89 |
| 19 |
94-3491 |
BRACKET - SPRING Price: $16.24 |
| 20 |
323-4 |
SCREW-HH Price: $1.02 |
| 21 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 22 |
33114-025 |
SCREW-HH Price: $0.70 |
| 23 |
33114-030 |
SCREW-HH Price: $0.50 |
| 24 |
33114-020 |
SCREW-HH Price: $0.28 |
| 25 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 26 |
2411-34 |
JOINT-BALL Price: $29.99 |
| 27 |
3296-13 |
NUT-LOCK, NI Price: $0.34 |
| 28 |
93-9051 |
DECAL-BOLT, ECCENTRIC Price: $16.37 |
| 29 |
107-2550 |
CABLE-CONTROL, TRACTION This part replaces 93-2099. Price: $194.40 |
| 31 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 32 |
3220-2 |
NUT-JAM Price: $0.50 |
| 33 |
33115-035 |
SCREW-HH Price: $1.15 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 34 |
94-3486 |
PLATE Price: $107.60 |
| 35 |
596874801 |
Rods This part replaces 532401031. Price: $6.99 |
| 35 |
63-9750 |
MOUNT Price: $18.92 |
| 36 |
2844 |
WASHER Price: $2.69 |
| 37 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 38 |
3220-1 |
NUT-JAM Price: $0.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855201 |
Belts This part replaces 532130969. Price: $27.99 |
| 64 |
532196200 |
SHAFT.ASM.PEDAL.BRAKE. Price: $49.99 |
| 73 |
596136501 |
Bolts This part replaces 874490540. Price: $3.99 |
| 80 |
531064101 |
SERVICE KIT TORQUE STRAP BLACK This part replaces 532440619. Price: $19.99 |
| 99 |
532415742 |
ROD.SPRING.BYPASS.K46.LT.Z Price: $7.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
593861001 |
Rods This part replaces 532448275. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532413430 |
KEEPER.CENTER SPAN.1.688 Price: $5.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532411484 |
HANDLE.PARKNG BRK.PRED.LT.428 This part replaces 532441407. Price: $24.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532195804 |
LINK.CLUTCH.ANIT-ROTAT Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $32.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 226 |
531170501 |
SERVICE KIT BRACKET This part replaces 532401564. Price: $4.99 |
| 227 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 230 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 231 |
532407287 |
IDLER.V-GROOVE.1.688.OFFSET Price: $19.99 |
