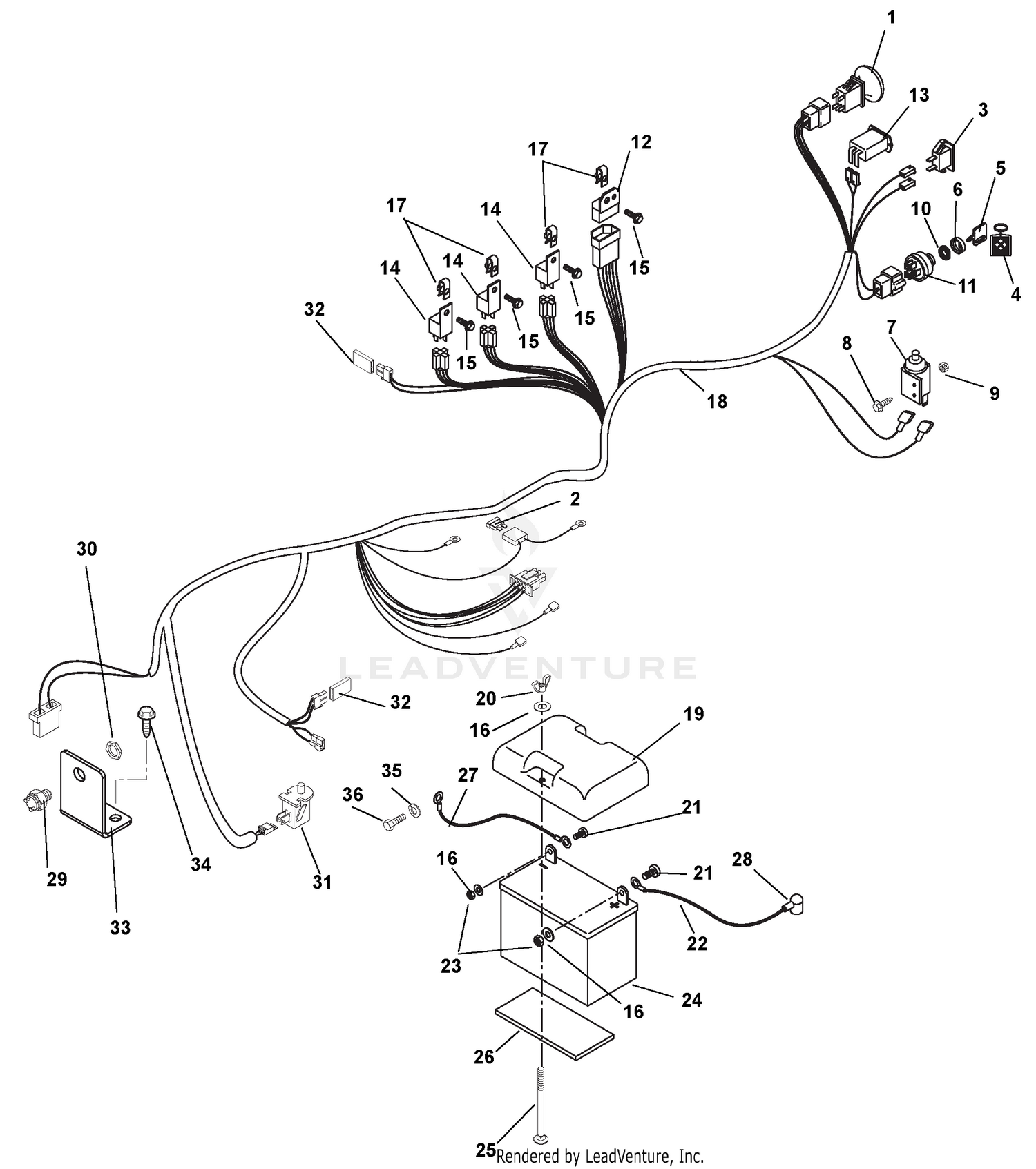

| Ref | Part Number | Description |
|---|
| 1 |
01545600 |
SWITCH, CLUTCH Price: $23.95 |
| 3 |
05128700 |
LIGHT, INDICATOR (RED) This part replaces 08841200. Price: $6.95 |
| 4 |
03490000 |
KEY CHAIN Price: $7.95 |
| 5 |
02460700 |
KEY -W/CAP Price: $9.45 |
| 6 |
07517700 |
CAP - IGNITION SWITCH Price: $3.45 |
| 8 |
05901825 |
BLT, HWH #10-24X.50 ZCC This part replaces 06116700. Price: $0.45 |
| 9 |
06500915 |
NUT-LK-NYL #10-24 G2 ZCC This part replaces 06536000. Price: $0.45 |
| 10 |
06517400 |
NUT- PANEL .562-24 GRECO Price: $18.95 |
| 11 |
03602300 |
KEY SWITCH Price: $23.45 |
| 12 |
09044200 |
MODULE,INTERLOCK,DELAY, 1801 Price: $64.45 |
| 13 |
59208200 |
KIT - HOUR METER This part replaces 04935700. Price: $55.45 |
| 15 |
05901837 |
BLT, HWH #10-24X.75 ZCC This part replaces 06116900. Price: $1.95 |
| 16 |
06401001 |
WSHR,FLT .281X.625X.065 ZCC This part replaces 06437300. Price: $0.45 |
| 17 |
07027700 |
NUT-RTNR 10-24 Price: $2.95 |
| 18 |
03287400 |
HARNESS - WIRING This part replaces 04912700. Price: $203.45 |
| 19 |
04912900 |
COVER, BATTERY Price: $10.45 |
| 20 |
06500805 |
NUT, LK-WING .25-20 ZCC This part replaces 06537500. Price: $4.45 |
| 21 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 22 |
03287200 |
CABLE - START 22.00" Price: $16.45 |
| 23 |
06500812 |
NUT,LK-CTR .25-20 GA ZCC This part replaces 06529700. Price: $0.45 |
| 24 |
01554800 |
BATTERY, 300 CCA 10U1L Price: $47.95 |
| 25 |
06200229 |
BLT,RHSN .25-20X7.00 G2 ZCC This part replaces 06220400. Price: $4.45 |
| 26 |
08803400 |
PAD,BATTERY Price: $6.45 |
| 27 |
03288200 |
CABLE-NEGATIVE BATTERY 35.00" Price: $20.45 |
| 28 |
00525800 |
BOOT, BATTERY TERMINAL-RED Price: $7.45 |
| 30 |
07015100 |
NUT-STAMPED .56-18 Price: $3.45 |
| 34 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07412000. Price: $0.45 |
| 09284600 |
KEY |
W/ SHIELD Price: $16.45 09284600 |
