Home / OPE / Riders / STTII-72V-38CH-EFI (Turf Tiger II) (S/N 150D00001 to 150D99999) Part No. 06449 / ELECTRICAL SCHEMATIC - KUBOTA 25KBD

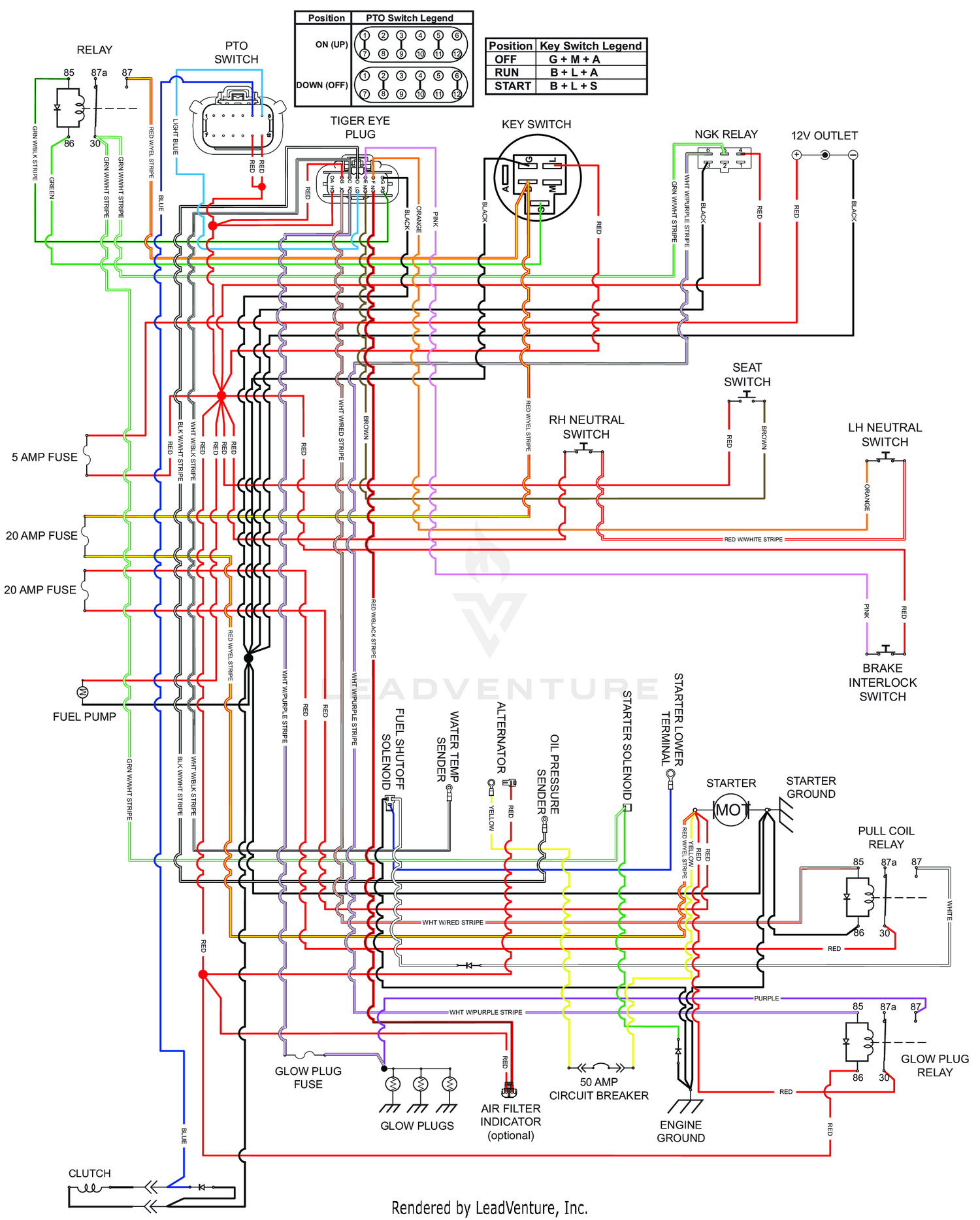

ELECTRICAL SCHEMATIC - KUBOTA 25KBD

ELECTRICAL SCHEMATIC - KUBOTA 25KBD

Parts (2)

RefPart NumberDescription
1 3253-4 WASHER-LOCK Price: $0.25
2 5-1470 SCREW-HH Price: $0.61
