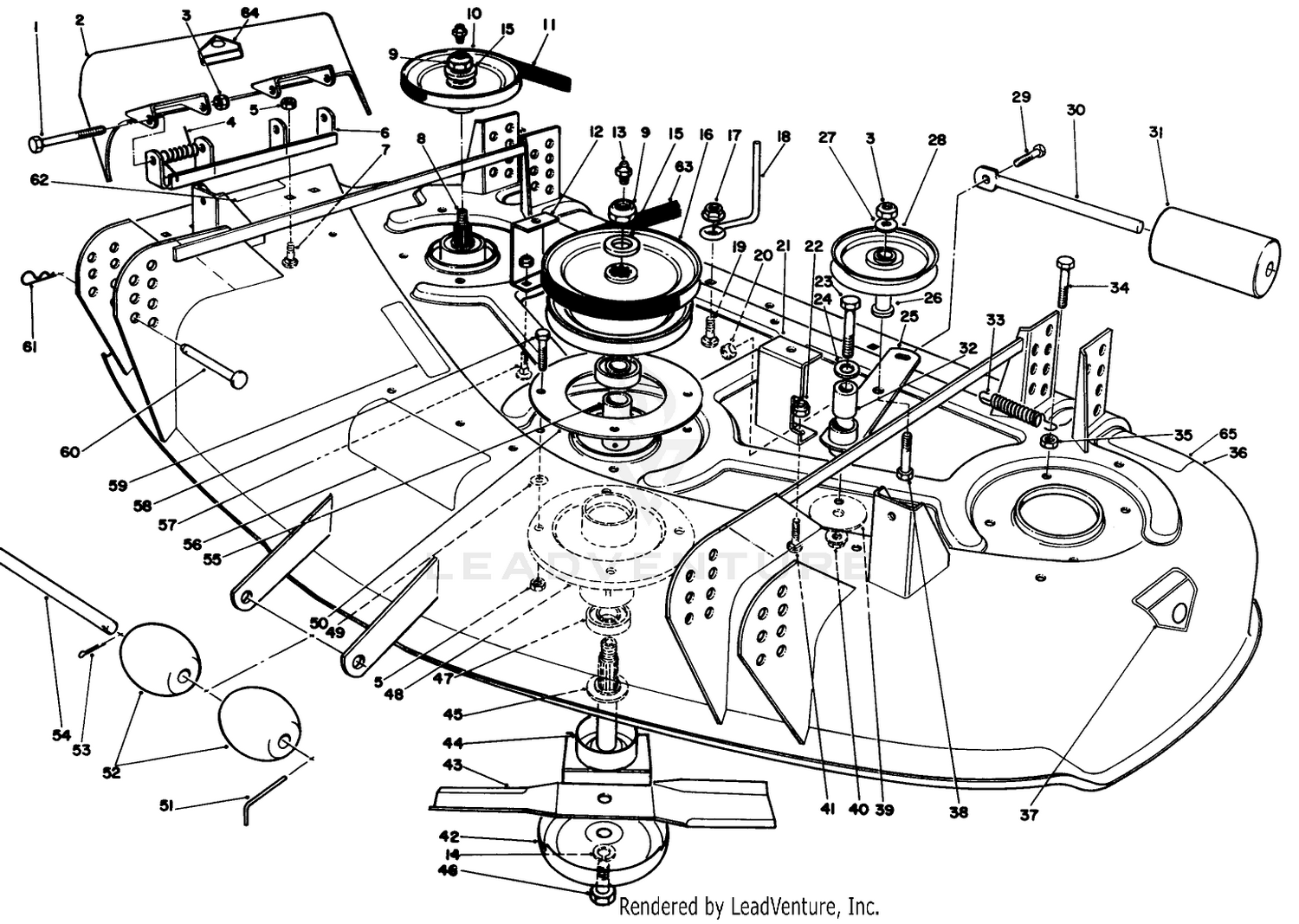

| Ref | Part Number | Description |
|---|
| 1 |
3211-15 |
SCREW-HH Price: $7.99 |
| 2 |
13-3899 |
Grass Deflector (Incl. Ref. #64) Price: Call Us |
| 3 |
3296-5 |
NUT-HEX Price: $3.09 |
| 4 |
40-6230 |
SPRING Price: $37.99 |
| 5 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 6 |
55-8320 |
PIVOT BRKT WA *R/*B Price: $51.40 |
| 7 |
3230-18 |
SCREW-CARR Price: $4.09 |
| 8 |
71-2780-03 |
SPINDLE SHAFT ASM This part replaces 71-2780. Price: $257.99 |
| 9 |
32146-20 |
NUT-HEX Price: $3.23 |
| 10 |
67-7690 |
PULLEY-DECK Price: $52.40 |
| 11 |
27-1160 |
V-BELT Price: $51.80 |
| 12 |
54-3230-03 |
RH COVER BRACKET ASM This part replaces 54-3230. Price: $26.34 |
| 13 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 14 |
3253-8 |
WASHER-LOCK Price: $0.47 |
| 15 |
7-4150 |
WASHER Price: $1.19 |
| 16 |
67-7650 |
PULLEY-CENTER Price: $98.48 |
| 17 |
32128-13 |
NUT-HF Price: $1.79 |
| 18 |
52-4780 |
ROD-BELT Price: $13.99 |
| 19 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 21 |
54-3240-03 |
LH COVER BRACKET ASM This part replaces 54-3240. Price: $26.34 |
| 22 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 23 |
323-11 |
SCREW-HH Price: $1.08 |
| 24 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 25 |
14-8649 |
IDLER ARM ASM This part replaces 54-2710. Price: $75.10 |
| 26 |
65-5950 |
BUSHING-PULLEY Price: $4.44 |
| 27 |
7-0081 |
WASHER-FLAT Price: $0.89 |
| 28 |
65-5940 |
PULLEY-IDLER Price: $35.61 |
| 29 |
322-3 |
SCREW-HH Price: $0.79 |
| 30 |
62-4480 |
ROD-ROLLER Price: $18.99 |
| 31 |
36-1740 |
ROLLER-DECK Price: $37.03 |
| 32 |
51-3640 |
SLEEVE Price: $9.66 |
| 33 |
54-2730 |
SPRING-EXTENSION Price: $21.99 |
| 34 |
322-6 |
SCREW-HH Price: $0.45 |
| 35 |
3218-2 |
NUT-JAM Price: $0.25 |
| 36 |
13-8649 |
Housing (Incl. Ref. #37, 56, 59, 62, 64, 65) Price: Call Us |
| 37 |
43-8480 |
DECAL-DANGER Price: $6.49 |
| 38 |
3211-8 |
SCREW-HH Price: $3.50 |
| 39 |
20-9530 |
WASHER-END Price: $28.36 |
| 40 |
32128-21 |
NUT-HF Price: $0.39 |
| 41 |
3229-3 |
SCREW-CARR Price: $4.49 |
| 42 |
67-7561 |
CUP-SCALP, ANTI Price: $40.99 |
| 43 |
54-0010-03 |
BLADE This part replaces 54-0010. Price: $22.97 |
| 44 |
71-2790 |
SHAFT-SPINDLE Price: $190.09 |
| 45 |
67-7570 |
SPACER-SPINDLE Price: $7.72 |
| 46 |
51-4060 |
SCREW-BLADE Price: $7.39 |
| 47 |
251-257 |
BEARING-BALL Price: $13.99 |
| 48 |
67-7590 |
HOUSING-SPINDLE Price: $188.20 |
| 49 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 50 |
55-8280-01 |
DECK RING This part replaces 55-8280. Price: $32.20 |
| 51 |
57-0690 |
PIN-SPECIAL Price: $3.66 |
| 52 |
29-4820 |
ROLLER Price: $14.88 |
| 53 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 54 |
40-6400 |
SHAFT-ROLLER Price: $38.99 |
| 55 |
67-7580 |
SPACER-BEARING Price: $20.33 |
| 56 |
66-1340 |
DECAL-DANGER, THROWN OBJECT Price: $9.07 |
| 57 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 58 |
3224 |
Screw Price: Call Us |
| 59 |
67-5360 |
DECAL-DANGER Price: $14.99 |
| 60 |
283-55 |
PIN-CLEVIS Price: $11.14 |
| 61 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 62 |
66-6380 |
DECAL-DANGER Price: $8.97 |
| 63 |
54-2750 |
V-BELT, DRIVE Price: $41.57 |
| 64 |
93-1122 |
DECAL-DANGER This part replaces 54-9220. Price: $8.99 |
| 65 |
68-8340 |
DECAL-TORQUE Price: $19.99 |
